Creating Activation Specification

You create a JMS activation specification if you want to use a message-driven bean to communicate with the default messaging provider through Java™ EE Connector Architecture (JCA) 1.5. JCA provides Java connectivity between application servers such as WebSphere® Application Server, and enterprise information systems. It provides a standardized way of integrating JMS providers with Java EE application servers, and provides a framework for exchanging data with enterprise systems, where data is transferred in the form of messages. One or more message-driven beans can share a single JMS activation specification.

You can create Activation Specification using the following procedure.

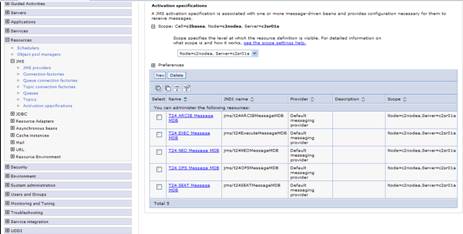

1. Click Resources > JMS > Activation Specification > Scope > Server > New.
2. Select Default messaging provider and click OK.
3. Specify the following details:
   1. Name as T24 OFS Message MDB.
   2. JNDI Name as jms/t24OFSMessageMDB.
   3. Destination JNDI name as jms/t24OFSQueue.
   4. Bus as T24Bus.
4. Click OK and save settings to master configuration.
5. Repeat steps 1 to 4 with the following details:
   1. Name as T24 ARCIB Message MDB.
   2. JNDI Name as jms/t24ARCIBMessageMDB.
   3. Destination JNDI name as jms/t24ARCIBQueue.
   4. Bus as T24Bus.
6. Repeat steps 1 to 4 with the following details:
   1. Name as T24 NEO Message MDB.
   2. JNDI Name as jms/t24NEOMessageMDB.
   3. Destination JNDI name as jms/t24NEOQueue.
   4. Bus as T24Bus.
7. Repeat steps 1 to 4 with the following details:
   1. Name as T24 SEAT Message MDB.
   2. JNDI Name as jms/t24SEATMessageMDB.
   3. Destination JNDI name as jms/t24SEATQueue.
   4. Bus as T24Bus.
8. Repeat steps 1 to 4 with the following details:
   1. Name as T24 EXEC Message MDB.
   2. JNDI Name as jms/t24ExecuteMessageMDB.
   3. Destination JNDI name as jms/t24EXECQueue.
   4. Bus as T24Bus.
