SDLC with Git

Temenos Workbench aims to ease the configuration of Temenos products and embed the packaging of the configuration through a modern and standard Software Development Life Cycle (SDLC).

Temenos Workbench can now optionally:

Store the configuration records within package definitions in a Global Information Tracker (Git) repository (for example, a Transact enquiry to list customers in a package customer-config).

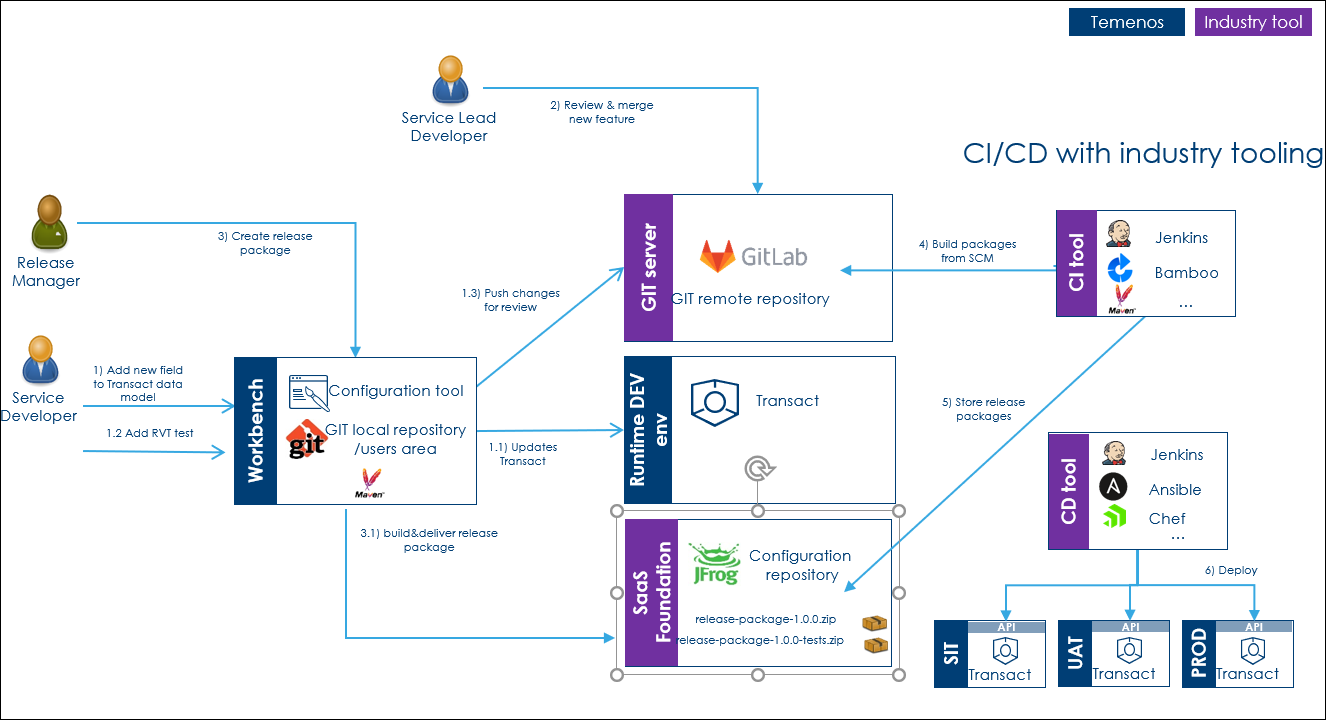

Build deployable configuration packages from Git and publish them to a maven repository through semantic versioning (corresponding to a CI pipeline that you can also build on your own, based on Maven to build the packages and curl to deploy them)
Out-of-the box Git trunk-based development strategy support. Read trunk based development for more information.

The deployable packages built with (or without) Workbench can be deployed consistently across all your environments (SIT, UAT, and PROD) through API calls. All this process promotes the concept of business configuration as code to:

Manage business configuration with the same SDLC as you would do with code (dev, build, test)
Empower ownership for developers
Enable parallel development
Improve quality

Differentiating Git and Non-Git Mode

The usage of Git mode is optional. It can be enabled through the workbench profile during the installation.

Set the value of PROFILE_REPO as given below in the appjs.properties file to switch between the modes.

PROFILE_REPO="git" for Git mode
PROFILE_REPO="dsfrepo" for Non-Git mode

The table below defines the features of Git and Non-Git modes.

Options or Features	Git Mode	Non Git Mode
PROFILE_REPO property in appjs.properties	git	dsfrepo
Branch Selector	Yes	No
Package Selector	Yes	Yes
Display package list with / without versions	Without	With
Packager selector – Refresh option	No	Yes
Package Manager	No	No
Create Package allows single/multi	Single and Multi	Single
Requires Keycloak user to login	Yes	Optional
Add record to package	Adds to SCM local working area	Adds to dsf repo
User roles	Applicable	Not applicable

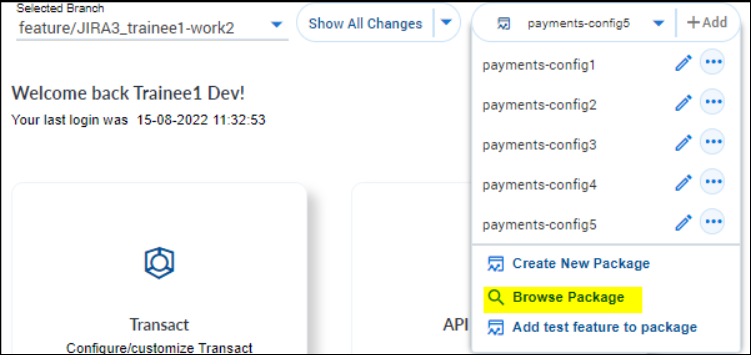

Package Selector
App bar

SDLC Process

The following can be performed by Workbench:

Configure
Store configuration
Write tests
Create and publish deployable and versioned release packages

Example

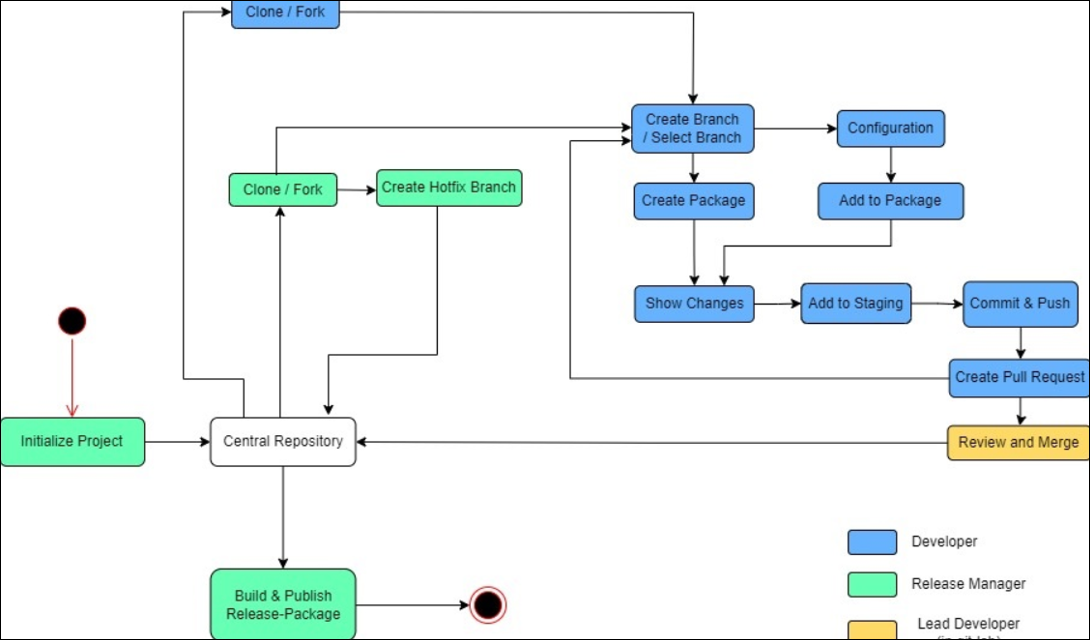

In the diagram below, there are different roles like developer, lead developer, and release manager.

The following actions are performed by each role to complete the process.

Release Manager

Initialize projects, which creates a base or central repository for all the developers to work
Creates a hotfix branch on the central repository
Creates and publishes release packages

Developer

Create branch
Do changes
Add to package
Commit & push
Pull request

Lead Developer

Review and merge a pull request (This is performed through “gitlab” server).

Trunk Based Development

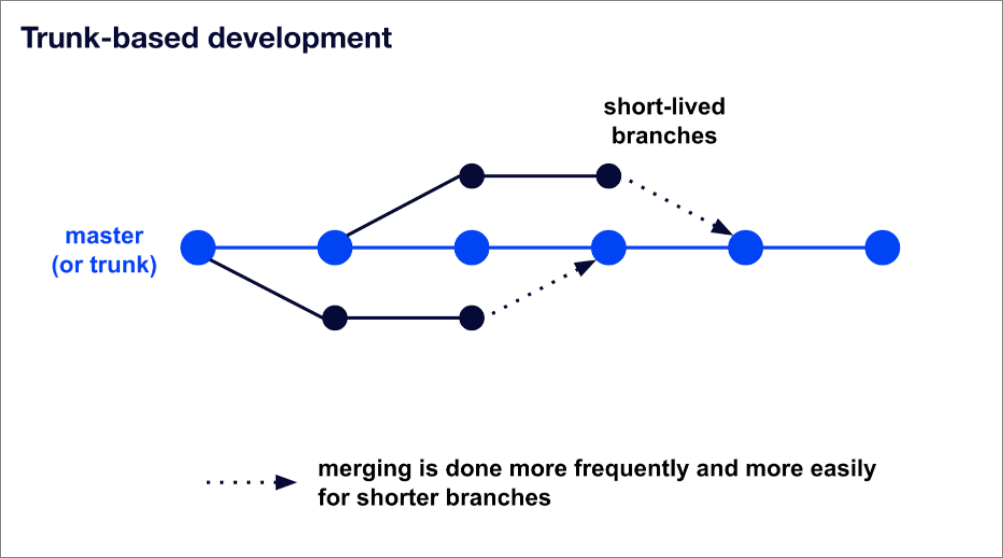

Trunk-based development (TBD) is a source-control branching model where developers collaborate on code in a single branch called trunk. The key benefit is to avoid drift in development branches and the resulting merge complications.

TBD is a key enabler of CI and continuous delivery. When individuals on a team commit their changes to the trunk multiple times a day, it becomes easy to satisfy the core requirement of CI (all the team members commit their changes to trunk at least once every 24 hours). It ensures the codebase is always releasable on demand and helps to make continuous delivery a reality.

TBD is a software development strategy where the engineers merge minor changes more frequently into the main codebase and work off the trunk copy rather than work on long-lived feature branches. The dev team shares a branch called trunk, and each developer creates a short-lived feature branch, where the developer can commit the changes to the trunk (master) and not to the release branches. With the trunk-based approach, we will also have a pre-integration step of running the build first (which must pass).

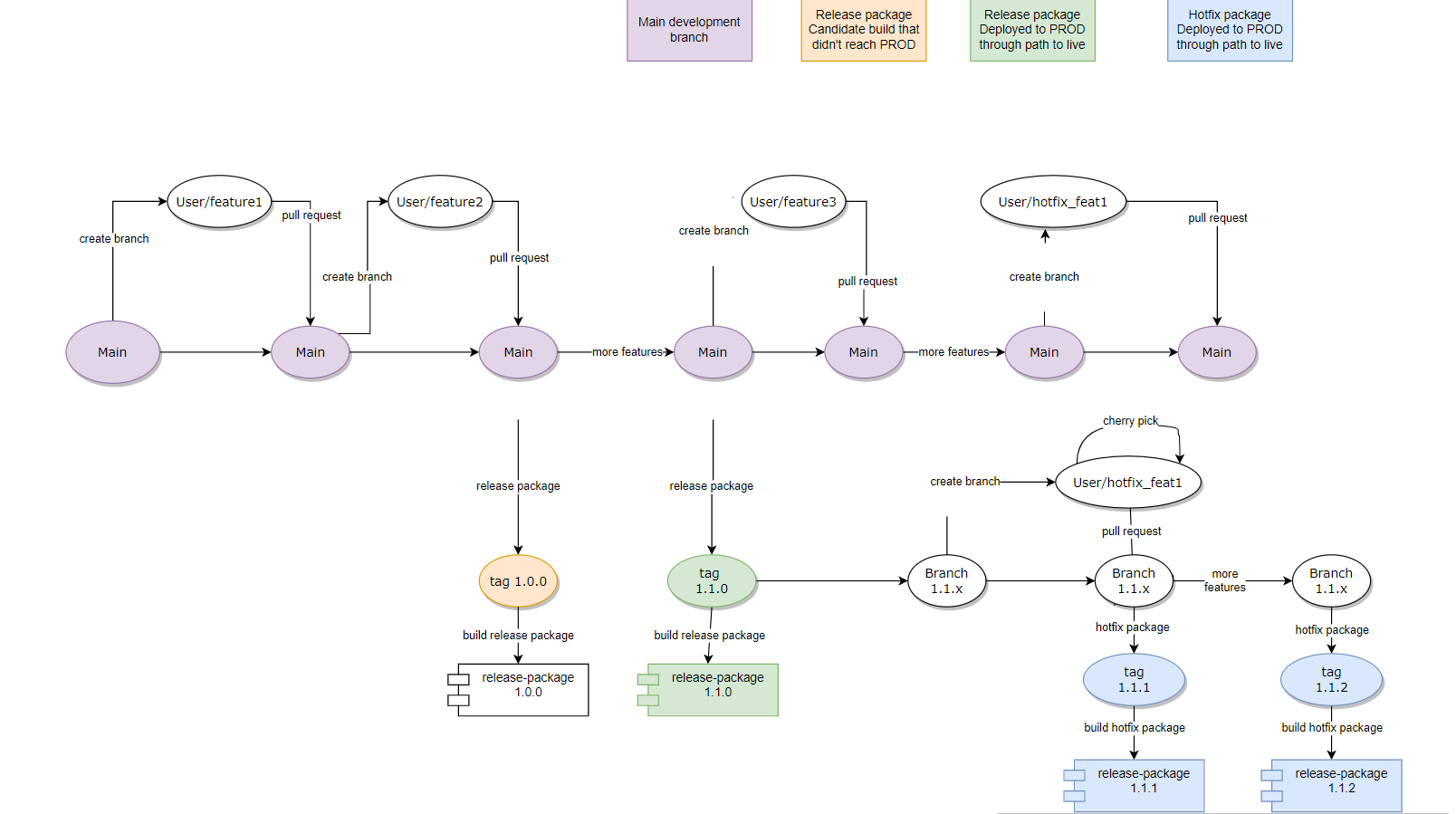

Release versus Hotfix

Standard Release Package Management

The release admin can create release packages through Workbench to have a candidate package for production deployment with all the latest changes.

The following process is performed in release package management.

The release package version is auto-incremented (can also be manually controlled) at every build.
A new Git tag is created corresponding to the release package version once the release package is created and published.
The release package is pushed to an Artifactory repository, and a Kafka event is sent to notify the external system of the task completion.

This mode is enabled by default in Temenos Banking Cloud solutions.

In Temenos Banking Cloud solutions, once a new release package is published, the client can decide on when the package goes Live (typically, DEV > SIT > UAT > PRE-PROD > PROD). The promotion consists of release package deployment and executions of release package tests through the Automated Test Framework. If a release package is deployed and tested successfully, the operator can decide to deploy it to the next environment in the path to live.

To prepare the release package:

Developers work on the short-lived feature branches and create pull requests that can be reviewed and merged by a lead developer.
Release admin triggers a release package build.

Hotfix Release Package Management

To prepare the release package in hotfix:

Release admin prepares a hotfix branch that is used by the developer to include their fixes. The Workbench proposes to create the hotfix branch based on a tag in Git.
Developers work on the hotfix branch with short-lived feature branches and create pull requests that can be reviewed and merged by a lead developer.
Developers include their fixes in the master branch as well.
Release Admin triggers a hotfix release package build by selecting the appropriate hotfix branch.

Resolving Merge Conflicts Manually

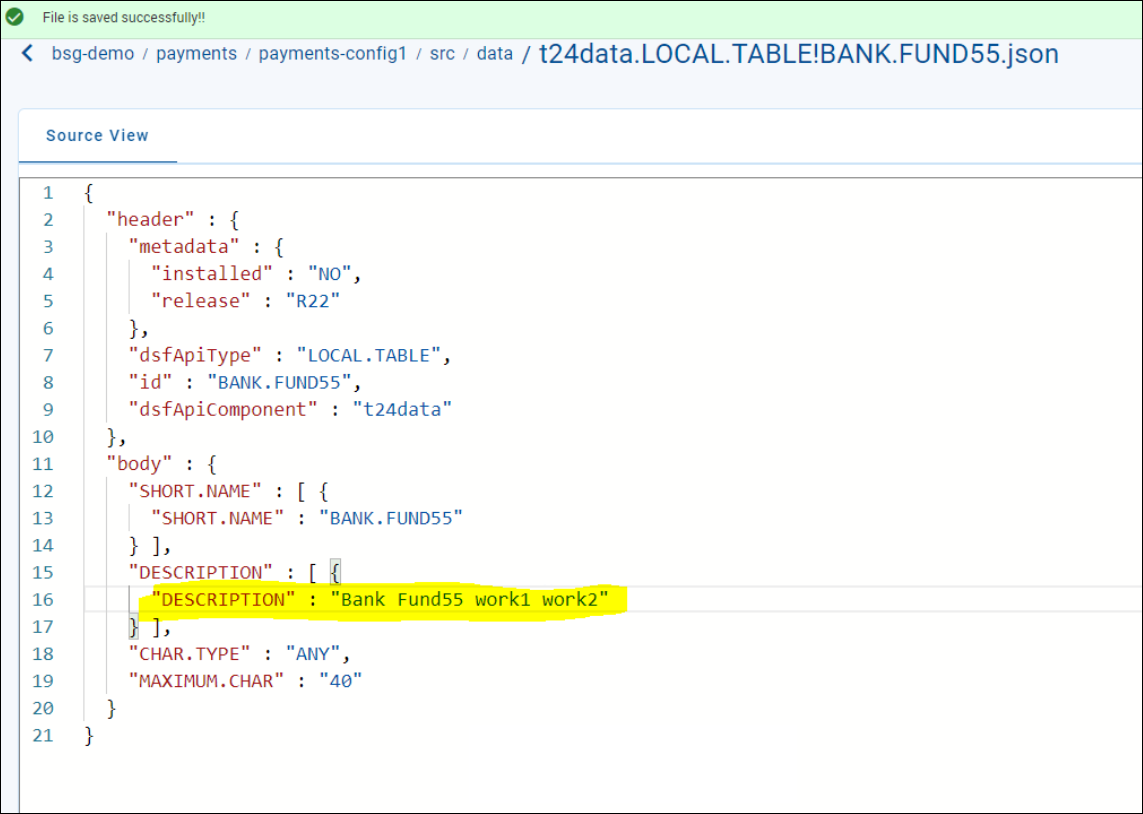

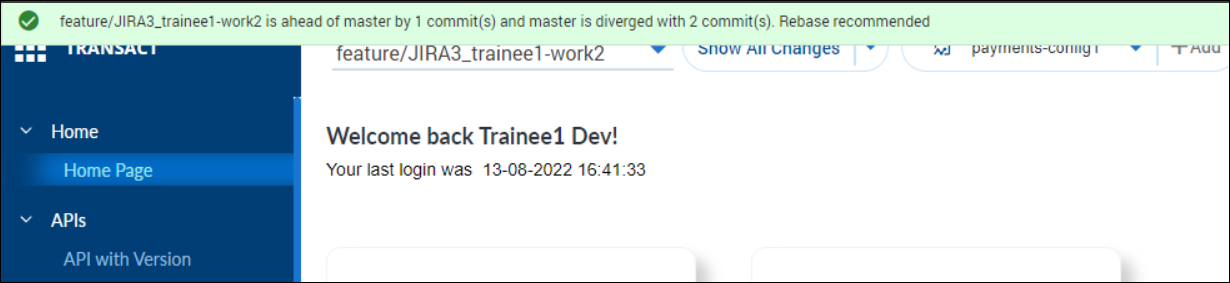

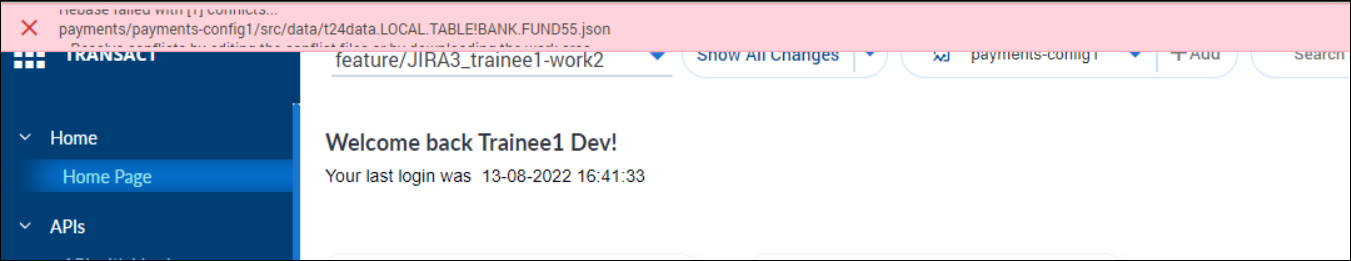

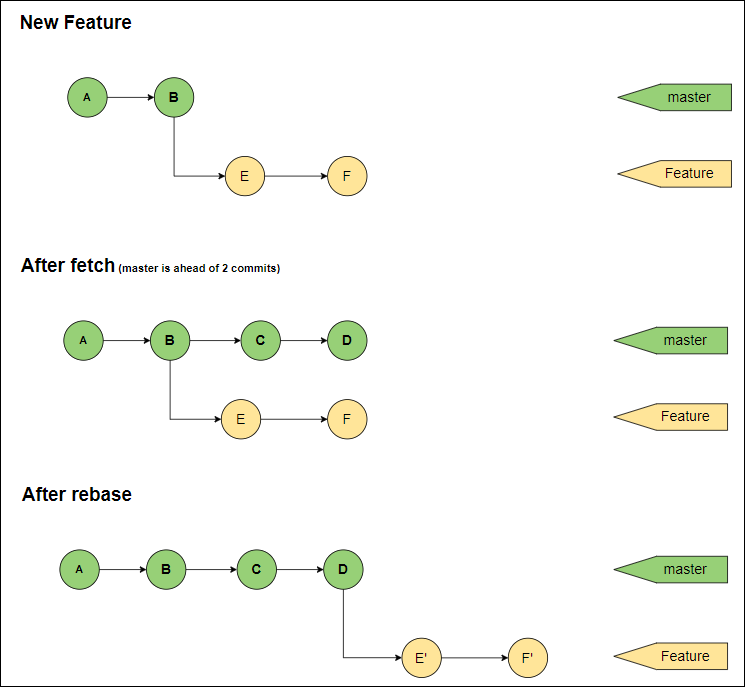

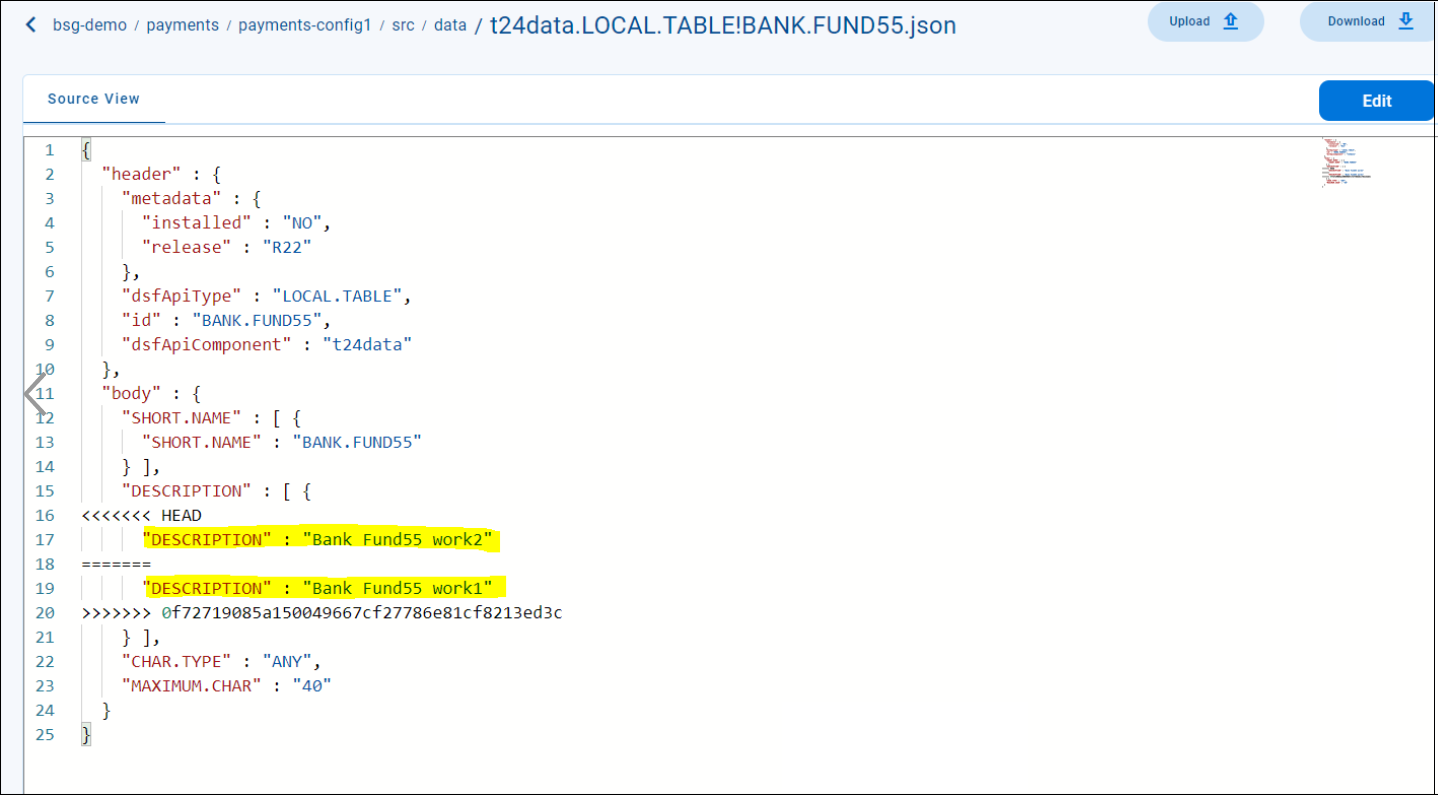

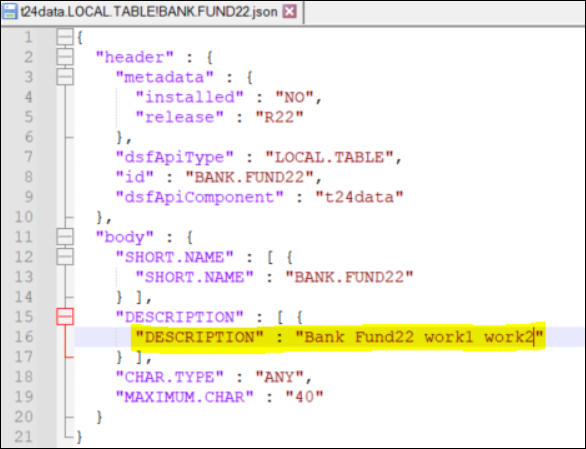

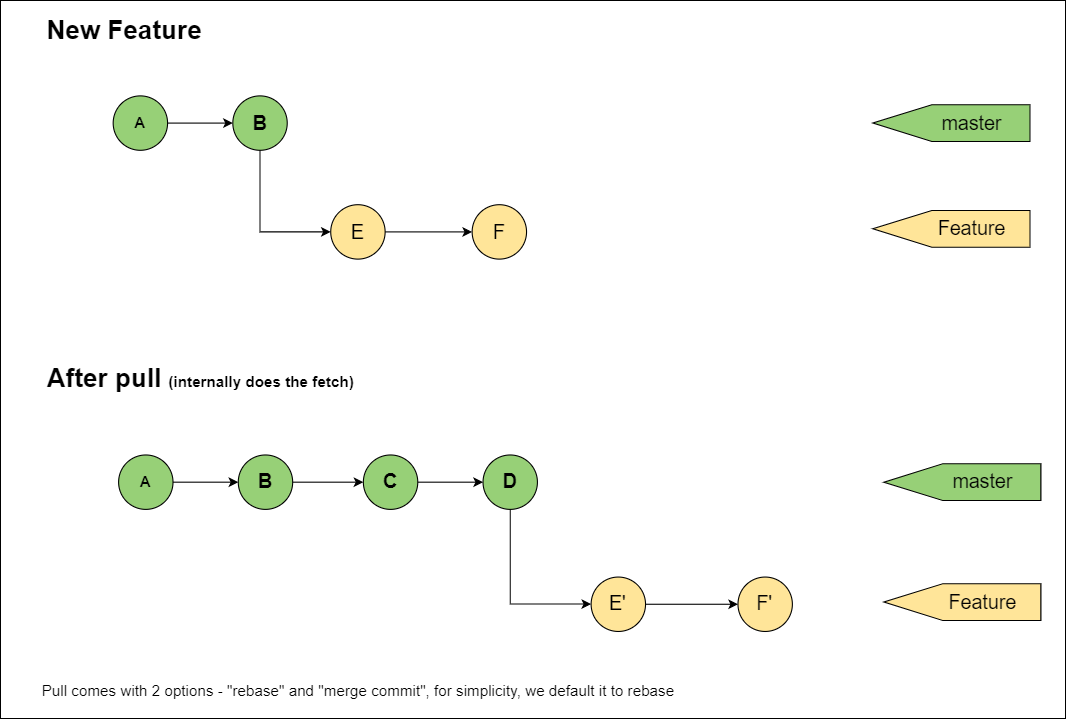

Git can handle most merges on its own with automatic merging features. A conflict arises when two separate branches edit the same line in a file. In real-time, consider two developers updating the same file in parallel, in which one of their changes is committed successfully, and the second is under conflict. In such cases, perform a fetch and rebase from Workbench.

Fetch
