Working with Hybrid pool

Process	Activity	System/User
Create pool in pending live	BUNDLE-NEW.OFFER-ARRANGEMENT	Orchestration service
Create accounts in pending live	ACCOUNTS-NEW.OFFER-ARRANGEMENT	Orchestration service
Set go live date for pool	BUNDLE-UPDATE.LIVE.DATE-PRODUCT.BUNDLE	User

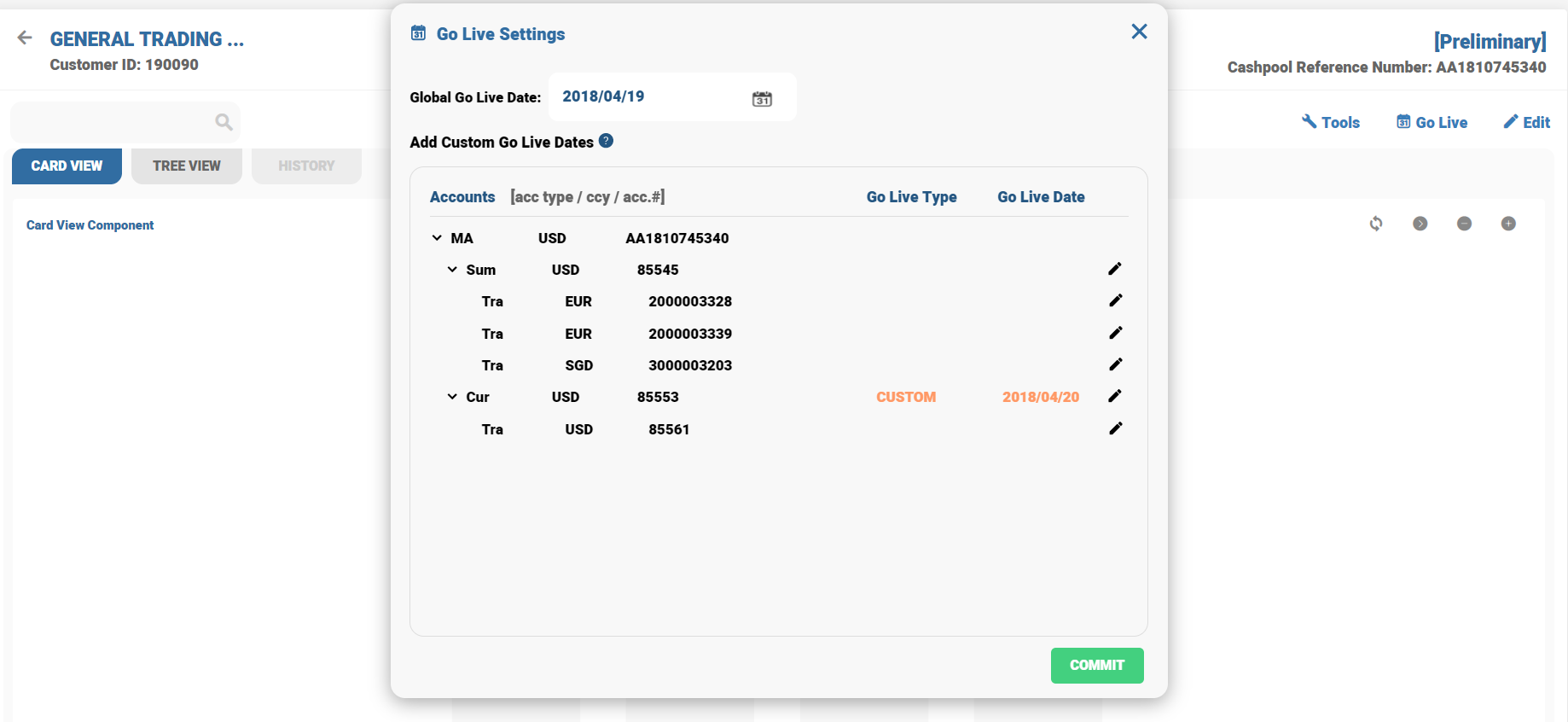

Set go live date for accounts in pool (be spoke)	BUNDLE-RESTRUCTURE-BUNDLE.HIERARCHY	User
Bring accounts to Live	ACCOUNTS-NEW-ARRANGEMENT	Scheduled by orchestration service and processed by COB orchestration process
Bring pool to live	BUNDLE-NEW-ARRANGEMENT	CB orchestration process
Add standalone account	ACCOUNTS-TRANSFORM-ARRANGEMENT	Scheduled by orchestration service and processed by COB orchestration process
Remove pool account	ACCOUNTS-TRANSFORM-ARRANGEMENT	Scheduled by orchestration service and processed by COB orchestration process
Close pool account	ACCOUNTS-SETTLE-PAYOFF	Scheduled by orchestration service and processed by COB orchestration process

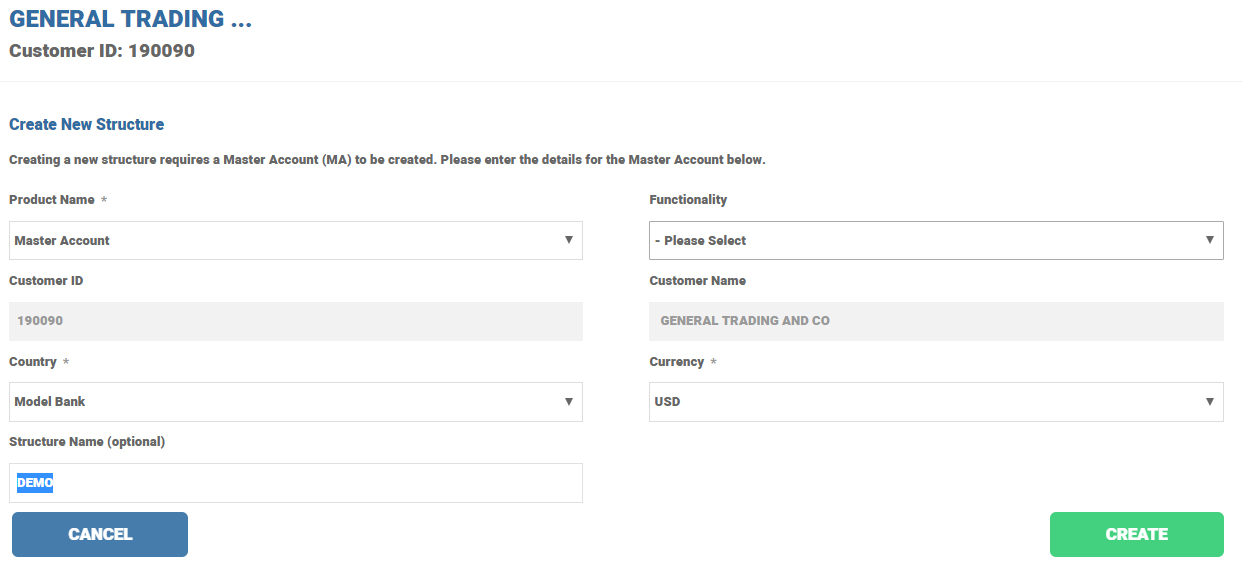

Creating Pool Administration – Manually

This section describes the steps and sequences to be followed, to manually create the various account part of a BN pool structure.

The navigation is as follows,

Select the Customer>Drilldown to their SCV>Product Catalog.
Select Product Catalog from the User Menu

These accounts (including the master account bundle arrangement) can be created forward dated. They are activated by the system at SOD on that date.

Create CT accounts in the desired currencies.

Switch off settlement instructions on pay-in and pay-out sides.

Create a new bundle arrangement under the master account product.

Attach the CTs to the product bundle.
Identify the currency of the master account and choose the corresponding CT account to be the recipient of the bundle.

Create summary or transaction account in the order of the hierarchy.

The parent must be created first before creating the child.

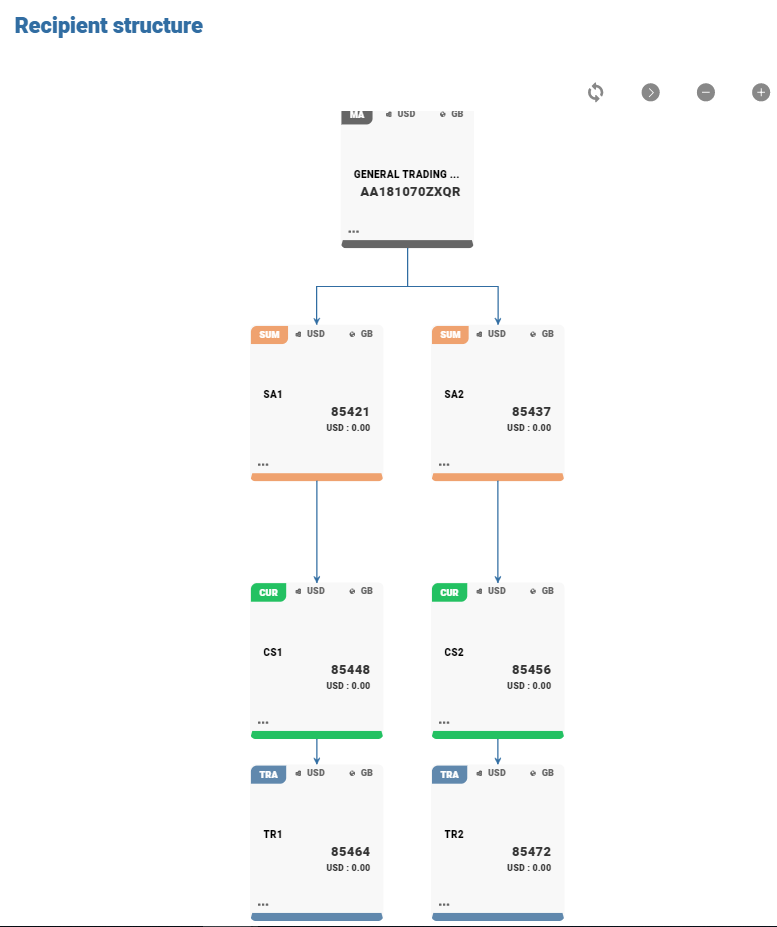

If TR1 has its parent as CS1, which has its parent as SA1, then SA1 is created, followed by CS1 and then TR1.
Once an account is created, its parent can only be set or changed through the purpose built internal restructuring activity.
Normal Update-Account activity cannot be used.
Similarly, once an account is created, the bundle arrangement (master account) and link account number (CT account) can be updated through the purpose built External Restructuring Activity.

Normal Update-Account activity cannot be used.

Switch off settlement instructions on pay-in and pay-out sides.

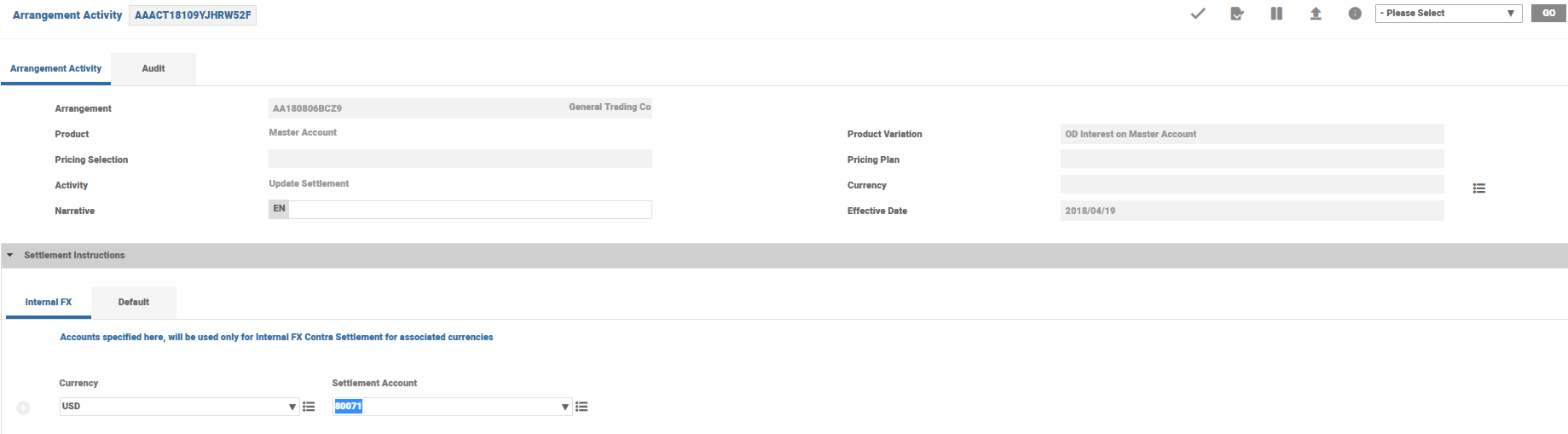

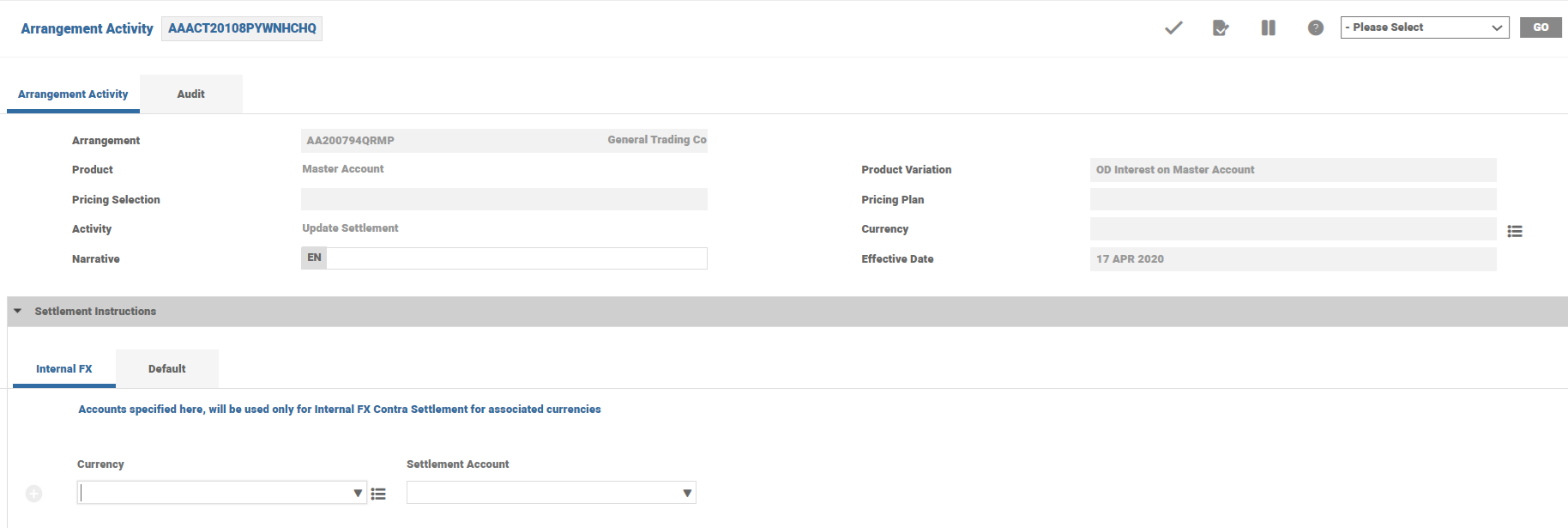

Once the required transaction accounts are created, use Update-Settlement activity on the CT accounts and relevant CS or SA to specify their default settlement account and in the case of CS or SA and TR, the default counter booking account.

Once the accounts are created, the normal workflow on updating their conditions are to be followed through the arrangement overview. The new activity drilldown links to setup,
- Bank interest or fees or schedule and settlement
- Internal interest or fees or schedule and settlement conditions.

Generating IBAN

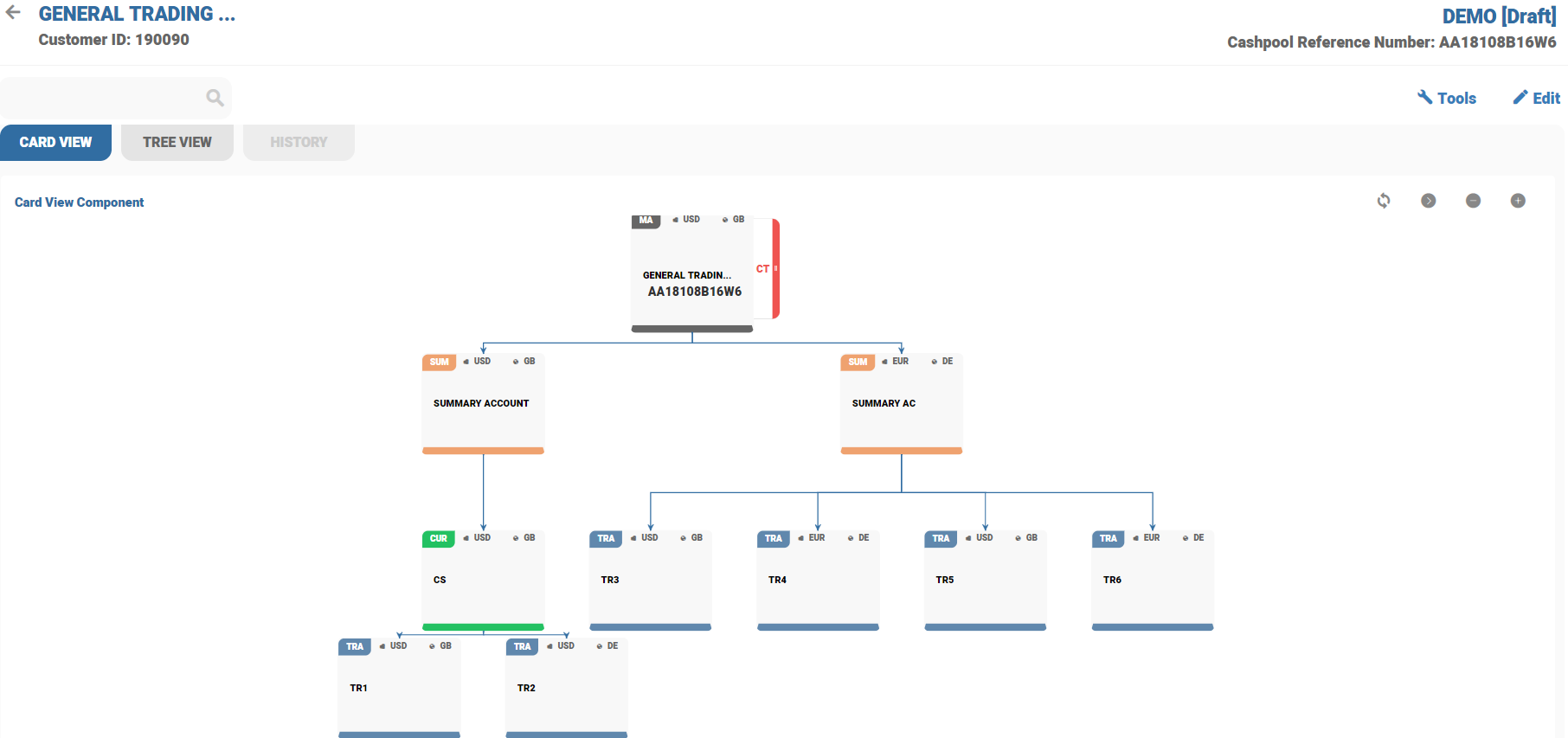

When the Bundle for the master account product is created in Draft status and when it is subsequently moved to the New Offer status, the IBAN is generated based on the values defined for Generate Iban and Alt Id Type. The IBAN can be seen in the AA.ARRANGEMENT record of the underlying contract.

As displaying the entire IBAN Value on the card is not feasible, it displays few characters of IBAN and appends it with three dots , for example, GB12DEMO60161300087537 is displayed as GB12DEMO6061…; on hovering over the text it displays the full string value.

The Alternate Id Type and Alternate Id of the Alt Id Types can be viewed in the expand header of each card. For the accounts other than master, T24.IBAN value gets displayed on the card instead of Account ID. If T24.IBAN value is available, the Alt Acct Type and Alt Acct Id get displayed on the expand card header.

Linking of Account to a Pool

When creating the CT accounts except for Limit (in case of MCCFor SCCF or MCF or SCF) is updated, no other special attribute needs to be specified to attach it to a master account, since it is done through the UPDATE-PRODUCT.BUNDLE activity. The user does this activity directly on the bundle arrangement (master account).

Once the CTs and MAs are created, when creating SA or CS or TR or MTR, it is important to capture the pool and hierarchy details via the purpose built attributes in Account property.

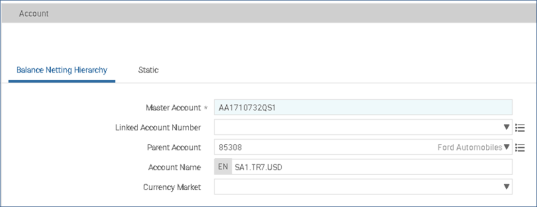

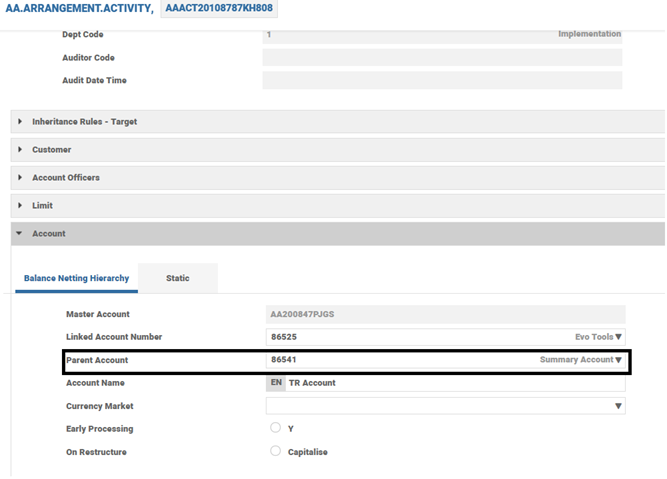

The following is a screenshot of a TR being created new, attached to an existing Pool under SA1 as its parent. The navigation for this could either be from the Product Catalog or the Master Account Overview.

The Master account is the bundle arrangement.

If the account added or created is in a different Temenos Transact company than the master account, then the master account reference must be captured suffixed with its company mnemonic. In the example above, since the master account is in Temenos Transact Company BNK, it must be captured as AA1710732QS1/BNK for the system to recognise it.
Linked Account number is the CT Account. If left blank and if a valid CT in this currency exists, then the system would default it.
- If a value is entered, the system validates that it is a valid participant in this Bundle Arrangement and that its currency matches this account’s currency.

Parent account is used to capture the parent in the hierarchy. It is an optional field and when left blank, it mean the account being created would be added to the pool directly under the master account level.
If a value is entered, the system would validate that it is,
- A valid member of the Bundle Hierarchy
- An allowed parent of this account
- Enabled for multi-currency if its currency is different from that of this account’s currency

In case of opening CS or SA, the above rules hold true except for the Linked Account Number (for which input is allowed).

Internal Restructuring – Changing the Parent Account

The accounts in the BN pool can be internally moved (at any point). To facilitate this, the ACCOUNTS-CHANGE.PARENT-ARRANGEMENT activity is initiated from the New Activity menu.

During this process happens, the balances from the previously linked parent account is also transferred.

Linking of Account to a Pool

When the CT Accounts are created (except for Limit in case of MCCF or SCCF or MCF or SCF) are updated, no other special attribute is specified to attach it to a master account using the UPDATE-PRODUCT.BUNDLE activity. The user does it directly on the bundle arrangement (master account).

When the CTs and MAs are created and when creating (SA or CS or TR or MTR), the pool and hierarchy details should be captured using the purpose built attributes in Account property.

The below screenshot shows a new TR attached to an existing pool under SA1 as its parent. The navigation for this is from the Product Catalog or the Master Account Overview.

The master account is the bundle arrangement.

When the account added or created is in a Temenos Transact company different from the master account, the master account reference should be captured and suffixed with its company mnemonic. In the above screenshot, since the master account is in Temenos Transact company BNK, it must be captured as AA1710732QS1/BNK for the system to identify.

Linked Account Number is the CT account. If this field is left blank and when a valid CT in this currency exists, then the system defaults it.

When a value is entered in this field, the system checks if it is a valid participant in the bundle arrangement and currency matches the account’s currency.

Parent Account is used to capture the parent in the hierarchy. It is an optional field and when left blank, the account created is added to the pool directly under the master account level. When a value is entered in this field, the system validates if it is,

A valid member of the bundle hierarchy
An allowed parent of this account
Enabled for multi-currency (if the currency is different from that of the account’s currency)

The above rules hold true when opening CS or SA, (except for the Linked Account Number for which input is not allowed).

Bundle Hierarchy Details

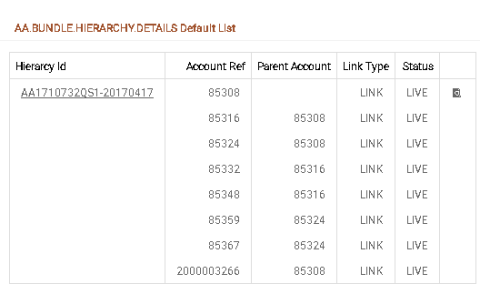

The AA.BUNDLE.HIERARCHY.DETAILS (system maintained table) is used for any investigation or analysis purposes or to know the pool structure on a given date.

Transactions on BN Accounts

Posting transactions on a BN pool is possible through the transaction account (that has External Posting set as Yes).

The system blocks any direct posting on CS or SA or CT.

Whenever a transaction is posted in a TR account, the core accounting engine does the following:

Makes a posting on the TR as a memo posting and diverts it as a real entry in the corresponding CT account (specified in Link AC Number field in Account Property)
Replicates the same memo entry in the parent of the TR (specified in the Parent Account field in Account Property) and its parent and so on up to the top level parent.

Internal or external transactions are controlled by the Transaction Type attribute in TRANSACTION table. This and the internal cover control attributes in Limit property class drives the validations on these transactions for TR or CS and SA accounts.

Internal Balance Netting Transaction

Internal transactions initiated between TR accounts, which are part of the same BN structure are located in different companies. The applications which are used for transactions, (FUNDS.TRANSFER, STANDING.ORDER or AC.CASH.POOL) can pass the accounting entries with the processing date, taking into consideration the company’s system date of the TRs and the CTs involved into the transaction.

The process by which the processing date is passed to accounting entries are consider the setting in INTERCO.PARAMETER.

Example

A BN structure is present in the system with two transactions accounts opened in different core banking companies and one currency top account linked to the TRs located in another company. The below accounts and opened

Account Type	Company Name	System Date
CT account (100001)	Temenos core banking Norway company	25/10/2017
TR account (100002)	Temenos core banking Norway Sweden	23/10/2017
TR account (100003)	Temenos Core Banking Norway Finland	24/10/2017

An internal transaction is initiated through the FUNDS.TRANSFER application between the TR accounts (100002 and 100003). The transaction is initiated from the Temenos core banking Norway company and the system is set to use the PDA accounting mode. The Align Dates field is set to All in INTERCO.PARAMETER application.

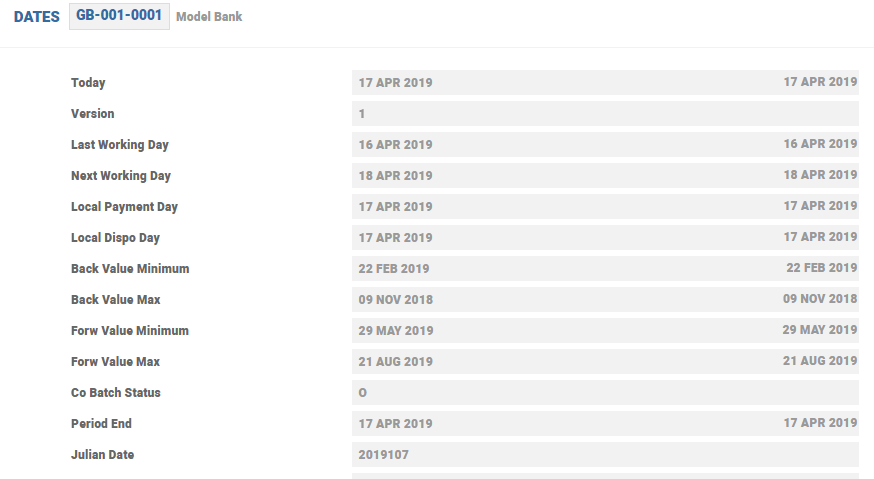

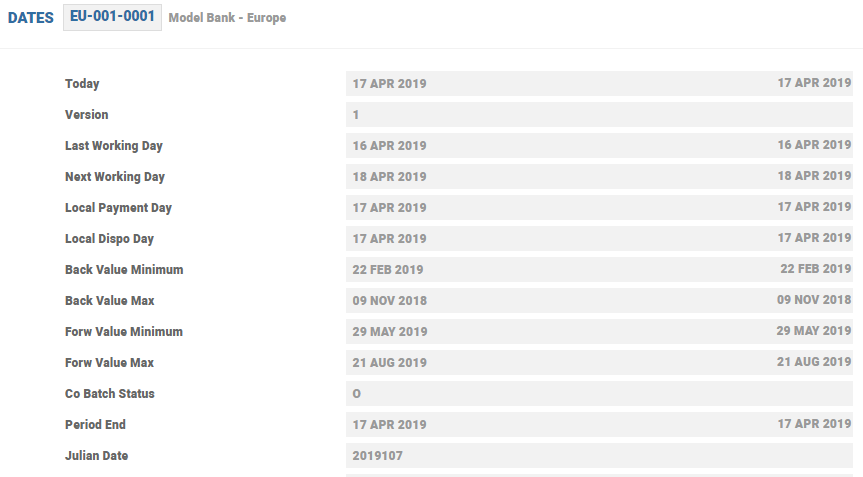

The system checks the core banking company system date of (TR and CT) account, and picks the latest date to be passed to the accounting engine as processing date. In this case, the accounting entries to (TR 100002, TR 100003 and CT 100001) are posted with a processing date as 25th October 2017, (which is the latest among all three accounts involved in the transaction). The system does not take into consideration the system date of the core banking company for the currency summary accounts and summary accounts.

Setup

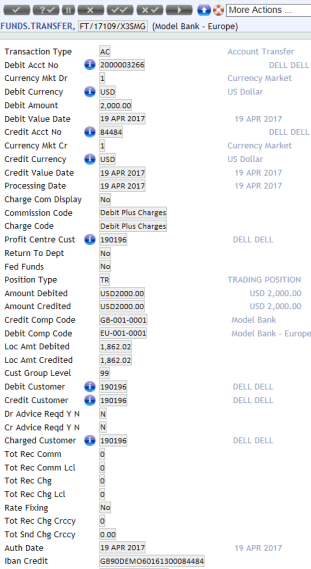

A funds transfer is initiated in the system between the below accounts:

Account Number	Company Name	System Date
84484	Temenos Model Bank Company	18/04/2017
2000003266	Temenos Model Bank – Europe Company	19/04/2017

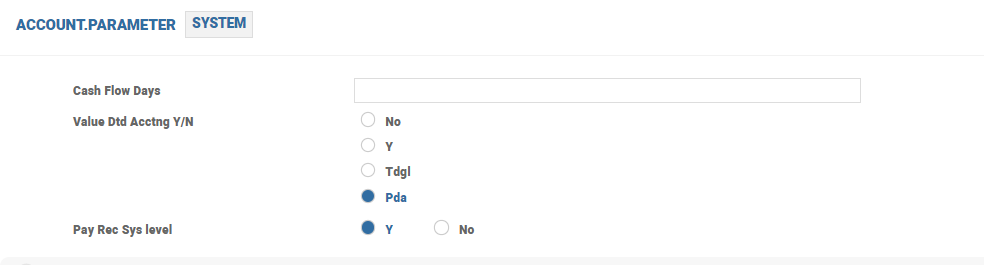

The Value Dtd Acctng Y/N field is set to Pda in both companies and the Align Dates field is set to All.

The funds transfer is initiated from Temenos Model Bank- Europe Company.

The balances in the accounts (84484 and 2000003266) are is 0 and a credit of USD 10,000 (before initiating the funds transfer) respectively.

As the system date in the Temenos Model Bank Company is earlier than the one in the Temenos Model Bank –Europe, the Processing Date is set to 19 APR 2017 in the STMT.ENTRY for the account 84484.

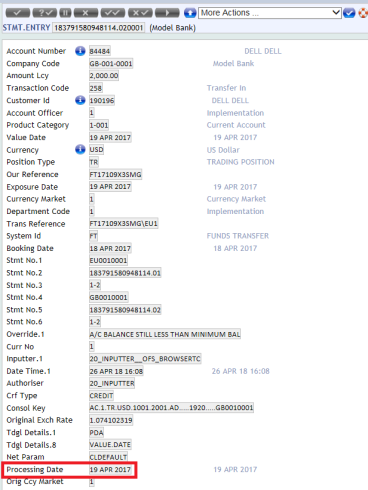

The system takes the latest processing date between the two, as the option all is setup.

Funds are booked under RECEIVE asset type until the date in the Temenos Model Bank Company changes to 19 APR 2017.

Administering Live Pool Structure

When a pool structure (bundle arrangement) is created, subsequent maintenance activities either at Pool or individual account level can be carried out from the bundle arrangement overview.

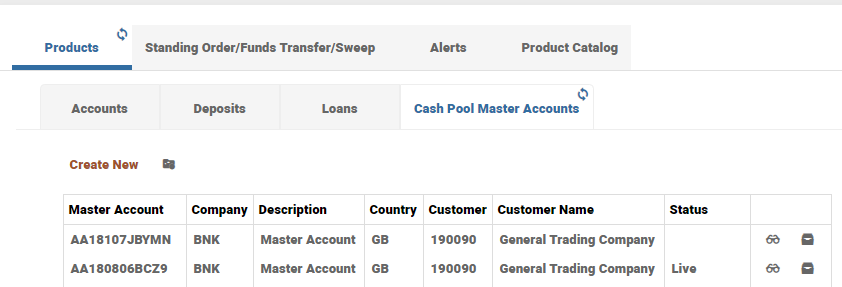

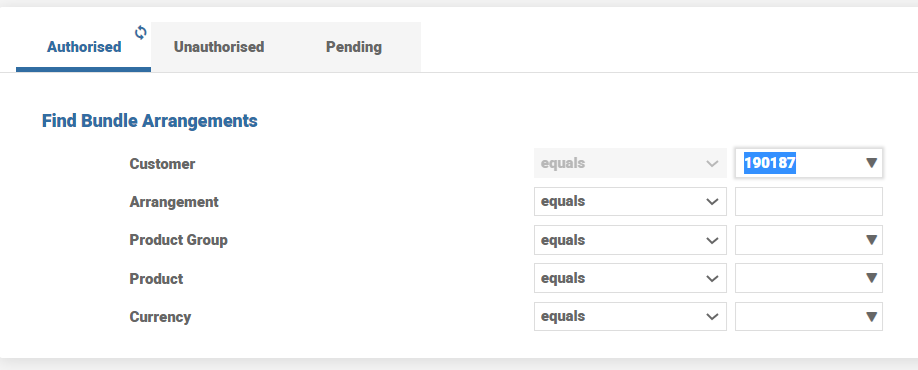

Find Bundle Arrangement

The spectacles icon takes the user to the arrangement overview

Bundle Arrangement Overview

The New Activity lists the user activities that are performed at the bundle level. This is used to launch the Update Product Bundle activity to add more CTs to the master account.

The Bundle Participants section lists the CT accounts that are part of the master account. The spectacles icon drills down to the respective CT account arrangement overview

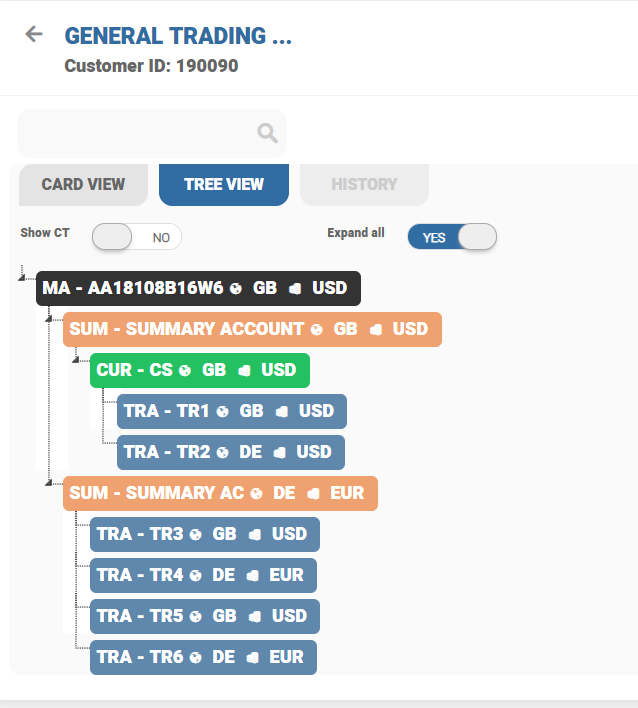

The Hierarchy section of the bundle arrangement overview lists the various accounts that are part of the hierarchy. The spectacles icon drills down to the respective account arrangement overview.

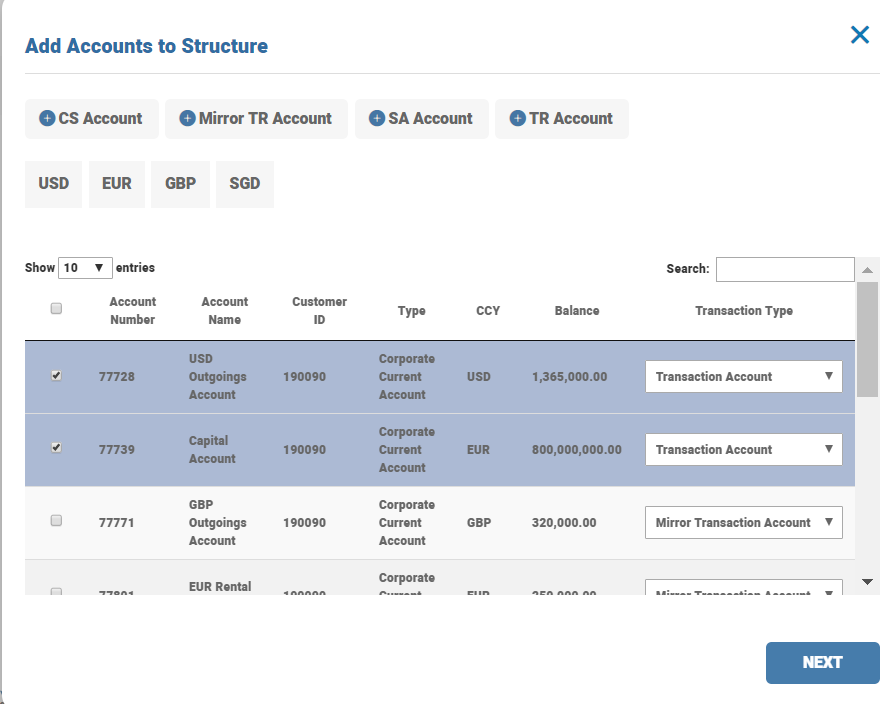

The Add A/C to Pool tab allows user to add different types of accounts to the pool. This is to provide easy access from the bundle overview and requires customisation of the enquiry based on the products displayed.

Setting up Settlement Instructions

The settlement property specifies the default settlement (in the case of CS/SA/CT) and counter booking account (in the case of TR/CS/SA). Navigate from the bundle overview into the respective account overview, the user can launch Update-Settlement activity from the New Activity List.

For example, counter booking for a TR account.

New Activity List

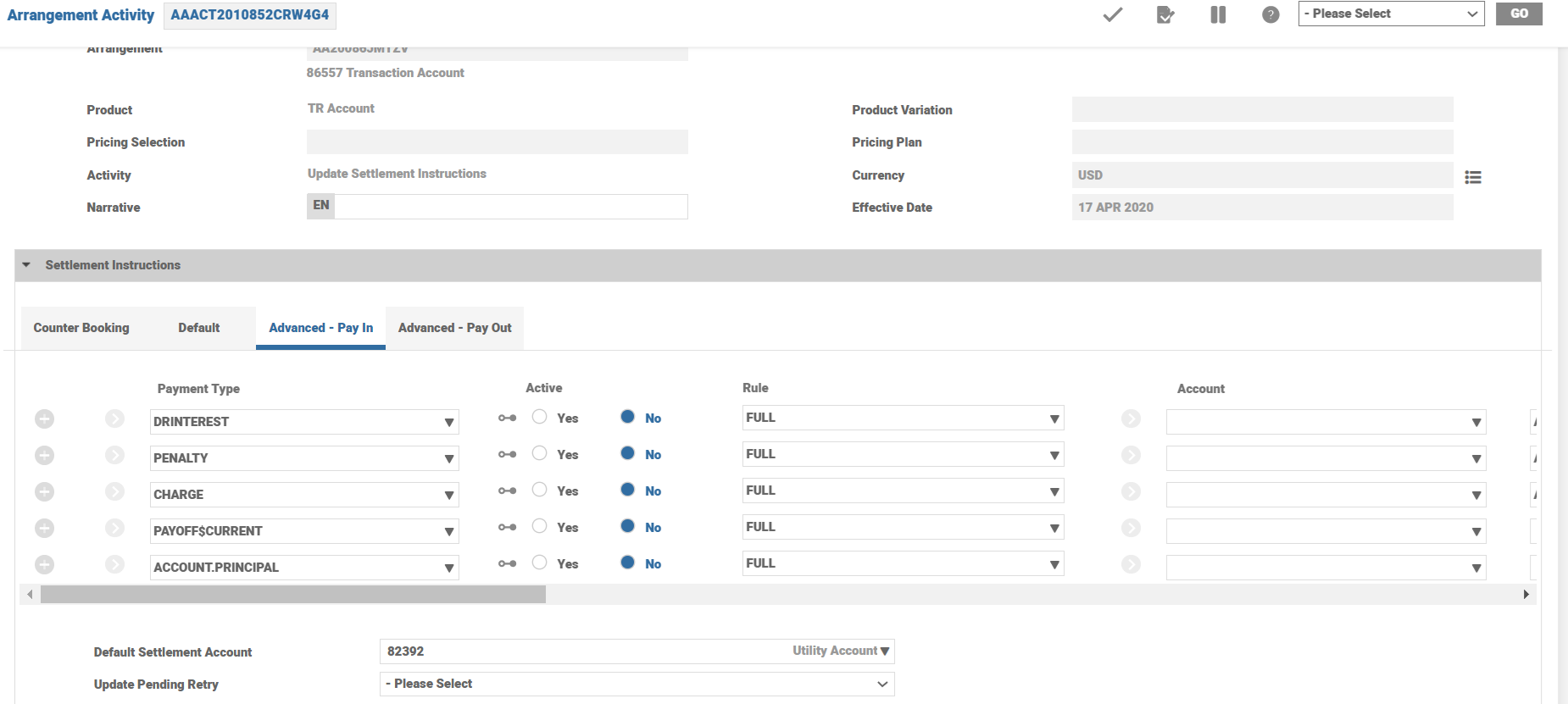

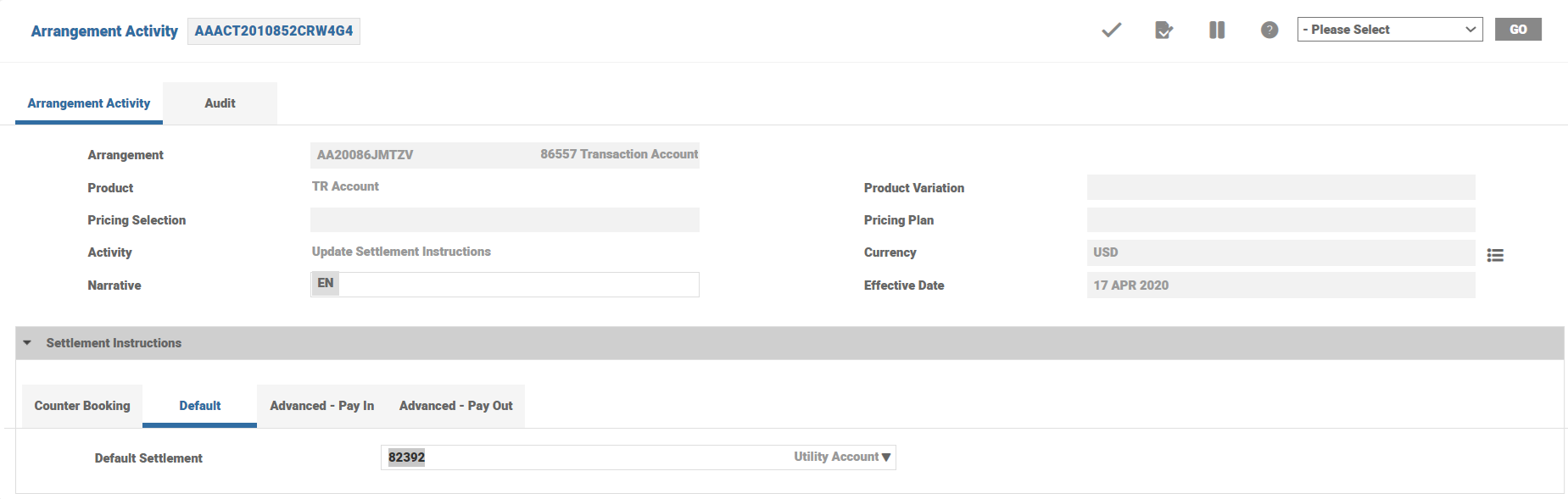

The below screenshot shows a default settlement account for a CS

When the settlement account is specified, the relevant pay in or pay out settlement instructions need to be switched on by setting the value to Yes.

Updating Internal Limit

The user navigates to the respective account arrangement overview and New Activity List to launch the Update Limit activity to set internal limit for a TR/CS/SA.

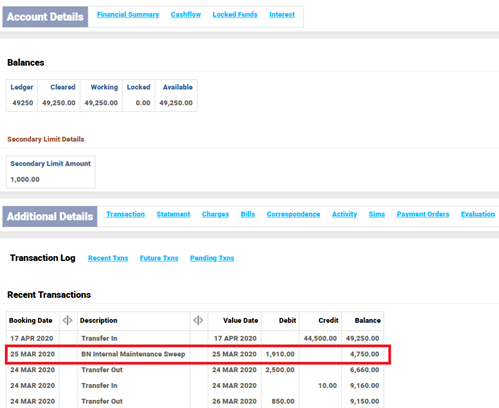

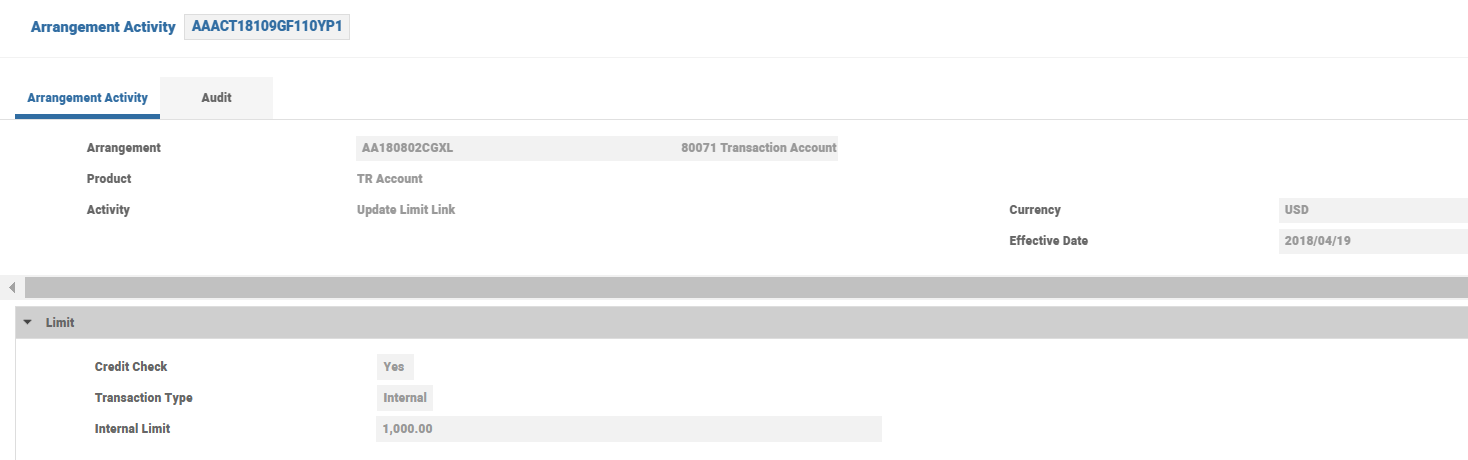

The below screenshot shows an internal limit on a TR

Setting the Internal Limit to 1,000.00 results in the maximum debit balance on this account to be 5,000.00.

Even though the Group Balance is close to 1 Million USD + 10 Million in Credit Facility, debiting USD 6,000.00 from this Account would result in the following override message.

Restricting Limit Utilisation

To set a restriction of limit utilisation by a CT on shared limit, the user can navigate to the respective Account Arrangement Overview and select the New Activity List to launch the Update Limit activity.

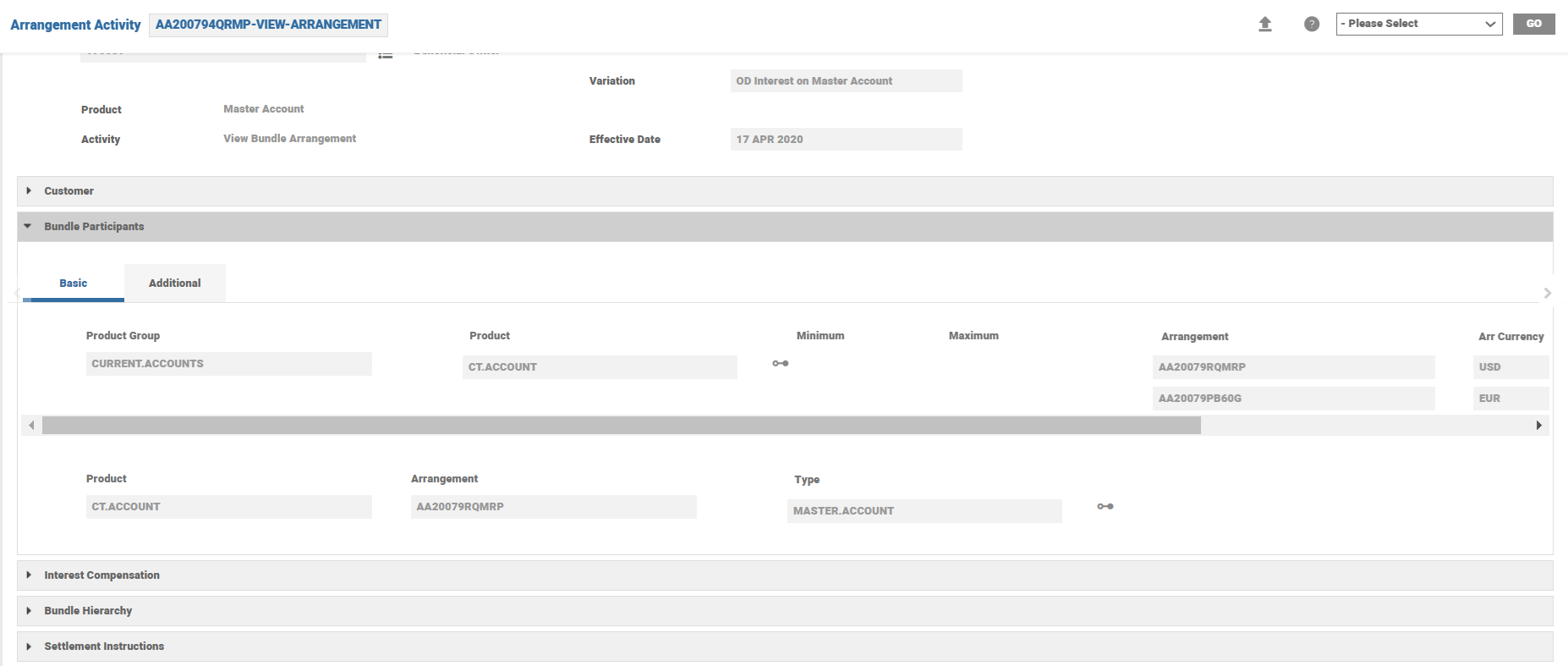

The below screenshot shows Bundle Participants in bundle overview:

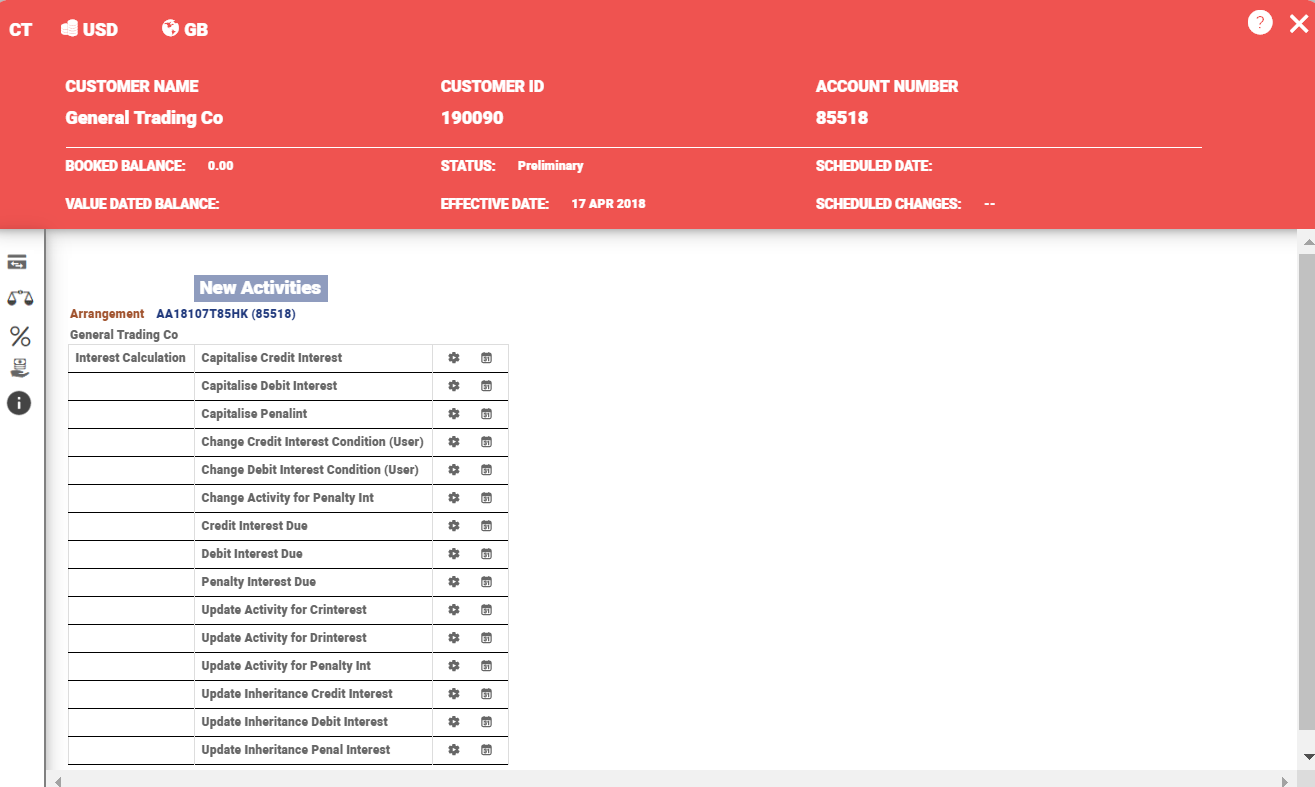

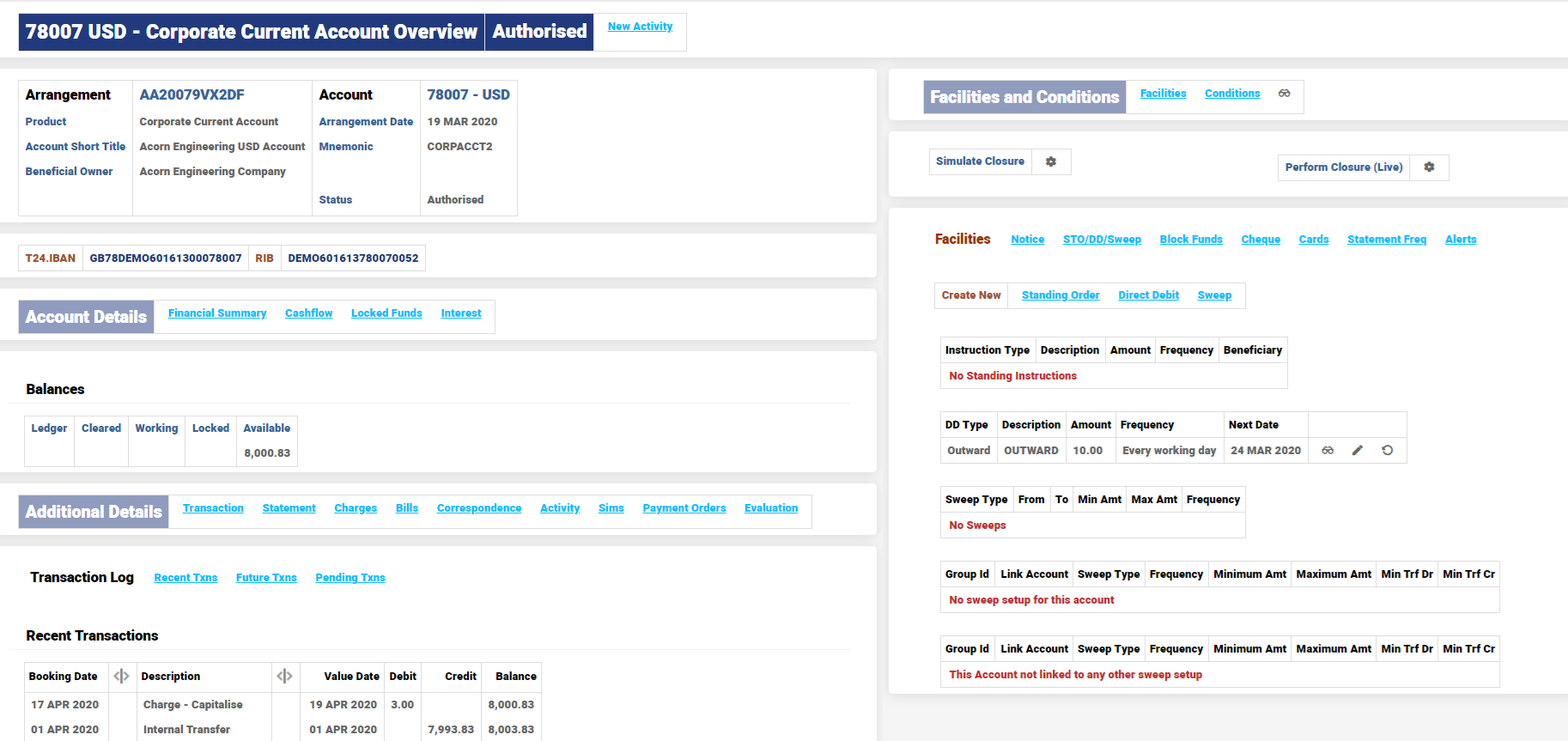

The below screenshot shows a New Activity on CT Account Overview

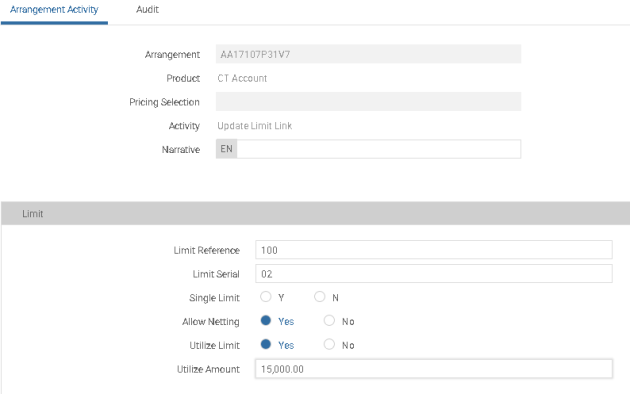

Update limit to restrict maximum utilisation of the available balance by the EUR CT to EUR 15,000.00.

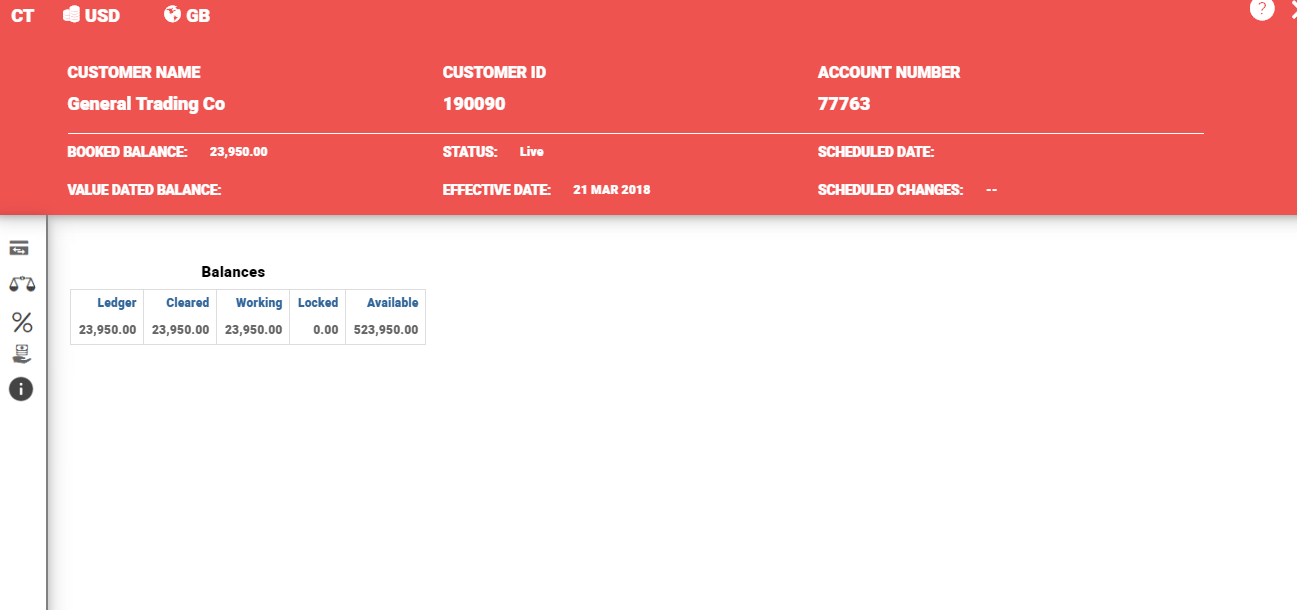

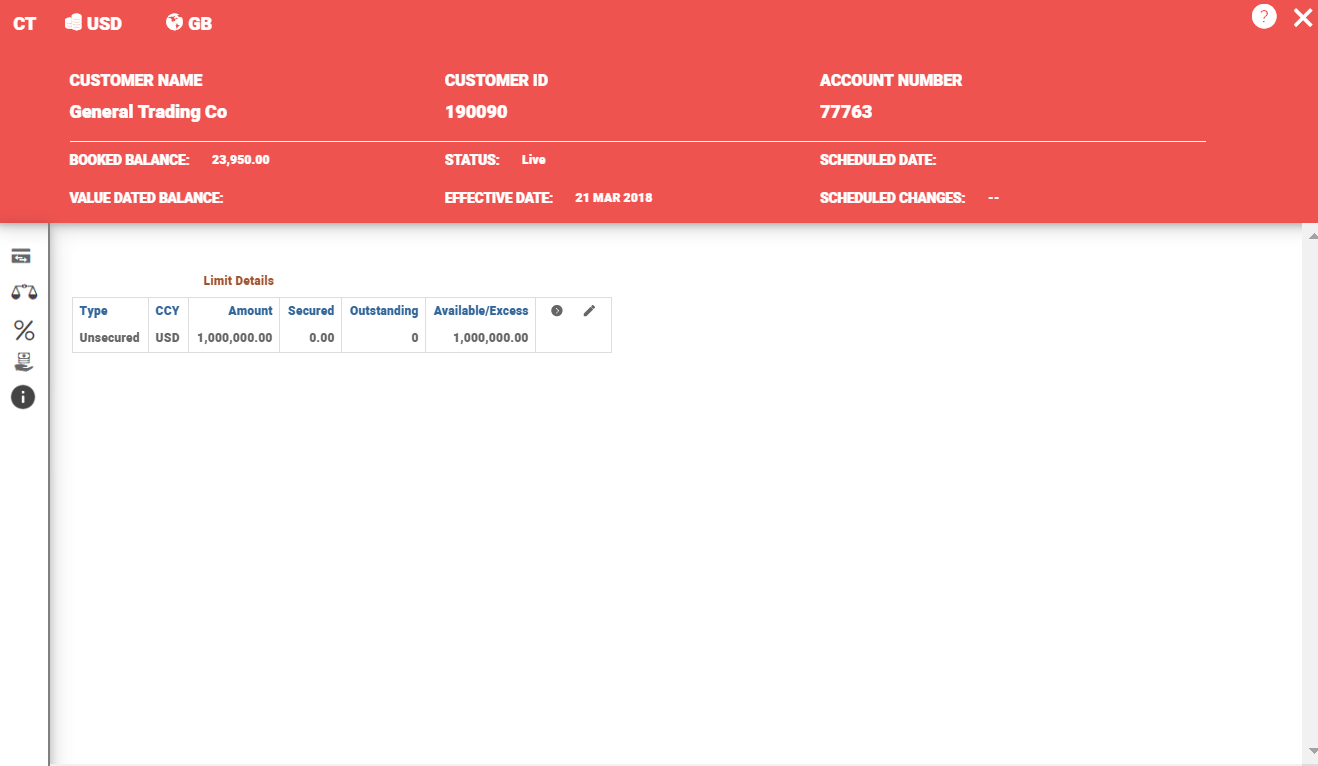

The financial summary of the EUR CT is shown below:

The account balance of the EUR TR is shown below:

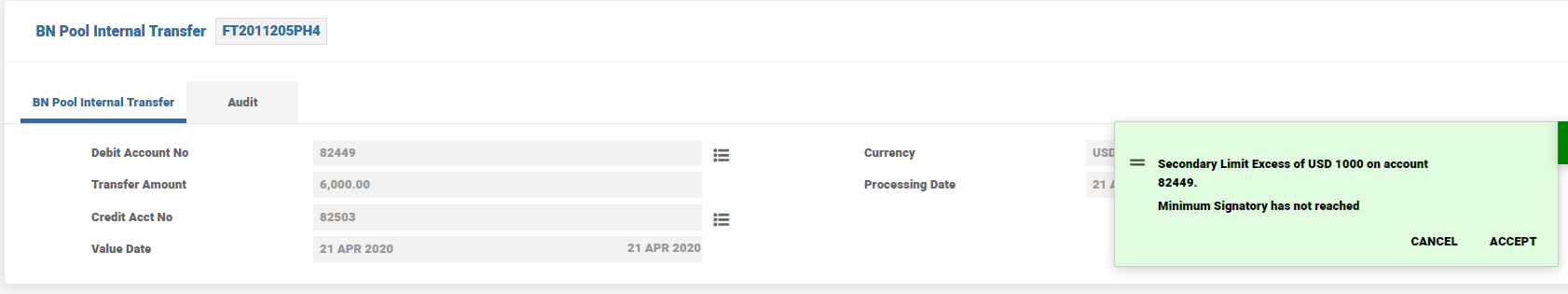

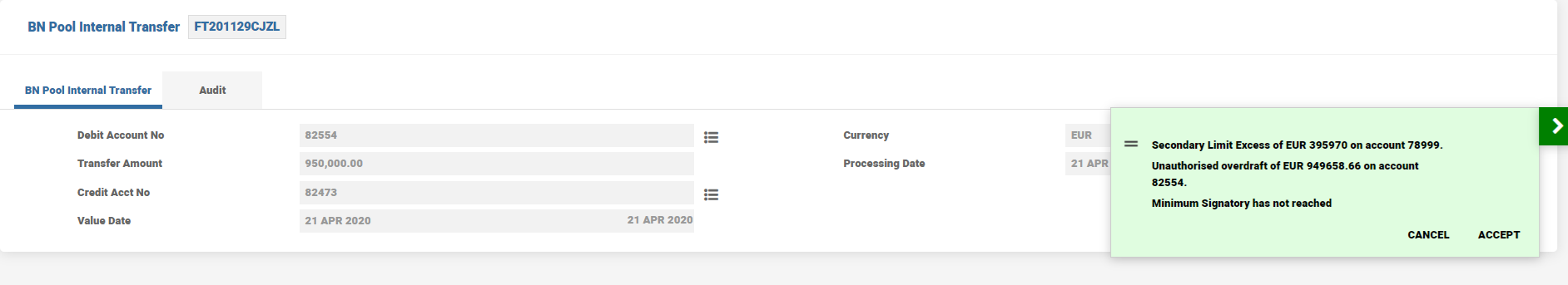

Debiting EUR 20,000.00 from TR results in this limit excess message on the EUR CT account 85294.

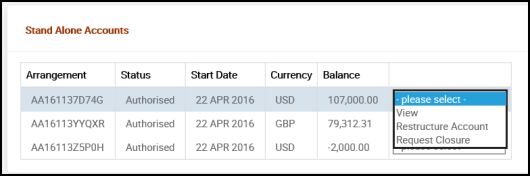

Connecting Standalone Account to BN Pool

An existing active account can be added as a part of the administration.

This account could have been in Temenos Transact for a number of months or years and was previously operating as a fully functional operational account, (processing regular transaction such as, debits and credits). The account has active direct debits, standing orders or any other service that Temenos Transact offers attached to the account.

A number of validations and processes are done to transfer to the BN Pool. The AA.ACTIVITY.CLASS record ACCOUNTS-TRANSFORM-ARRANGEMENT is used to facilitate and control this unique process.

This process is in simulation mode or as a live activity with the following validations and actions:

To facilitate this and the process to happen during COB, the Effective Date activity should be forward dated by at least one day.
When moving into the BN pool, the account must transition from an on-balance to an off-balance type account (internal type).
During the process, the correct transformation (TR) account should be selected.

The below validations are required:

The system validates all the services currently attached to the account and produce a statement that needs manual correction.
The system validates the authorised BN agreement defined.

Bundle Arrangement

This field used to define and validate that a BN Pool structure is available and this is the master account that ultimately this account is attached to.
When this validation fails, error appears.

Linked Ac Number

This field validates and checks the diversion account defined.

This diversion account (currency top) is defaulted by the system.
When this validation fails, error appears.

When the TRANSFORM activity is authorised, the activity is scheduled to run on the defined effective date.

During the close of business (COB), the system automatically transforms the product and actions the following events:

Interest all types (credit or debit or special)	The system calculates an up-to-date accrual of each individual interest property. Makes required adjustments to any of these interest properties. Honours adjusted periods, that is, a forward dated effective date.
Tax on interest	When defined, the system calculates all tax up to this point on each individual property.
Charges all types (periodic or scheduled or activity)	The system calculates all types of charges up to the effective date. Makes up-to-date accrual of the individual charge properties. Evaluates all activity charges.
Tax on charges	The system calculates all tax up to this point on all charge properties.
Evaluate all activity restrictions	Per product definition, any defined rules need to be honoured.
Evaluate and generate any associated messaging	Per product definition activity messaging generates the appropriate advice.
Evaluate all current core services attached	A validation report is generated.
When the calculated balance is negative, validation shows an error.	Manual steps are needed to bring the balance into credit. The process can then be run again.

When the COB is complete, the account is a part of the BN account and its balance is seen in all the relevant hierarchy of accounts.

Internal Restructuring – Changing the Parent Account

The accounts in the BN pool can be internally moved at any point. To facilitate this, the activity ACCOUNTS-CHANGE.PARENT-ARRANGEMENT is initiated from the New Activity menu.

When this process happens, the balances from the previously linked parent account is also be transferred.

Example

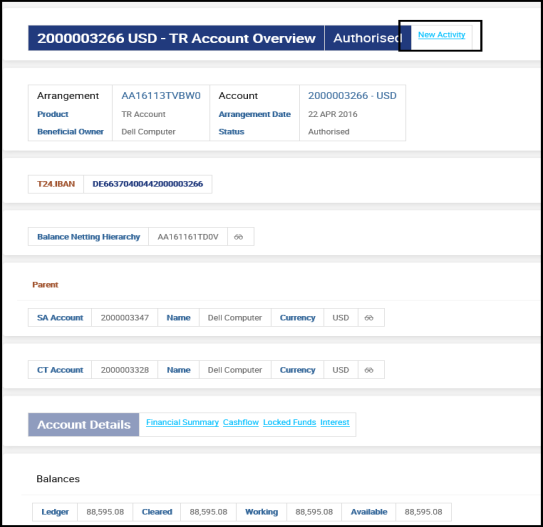

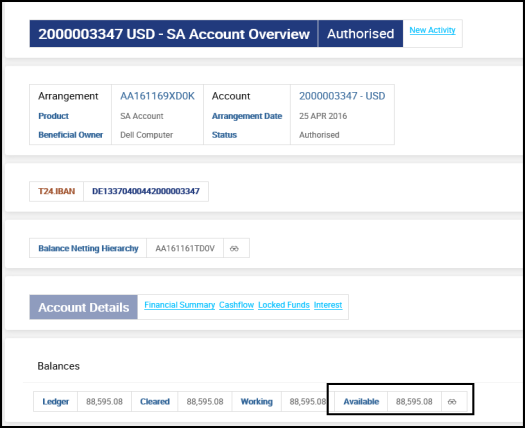

The above screenshot sows a TR is linked to SA account (2000003347) and this SA account has the same balance as the linked TR account.

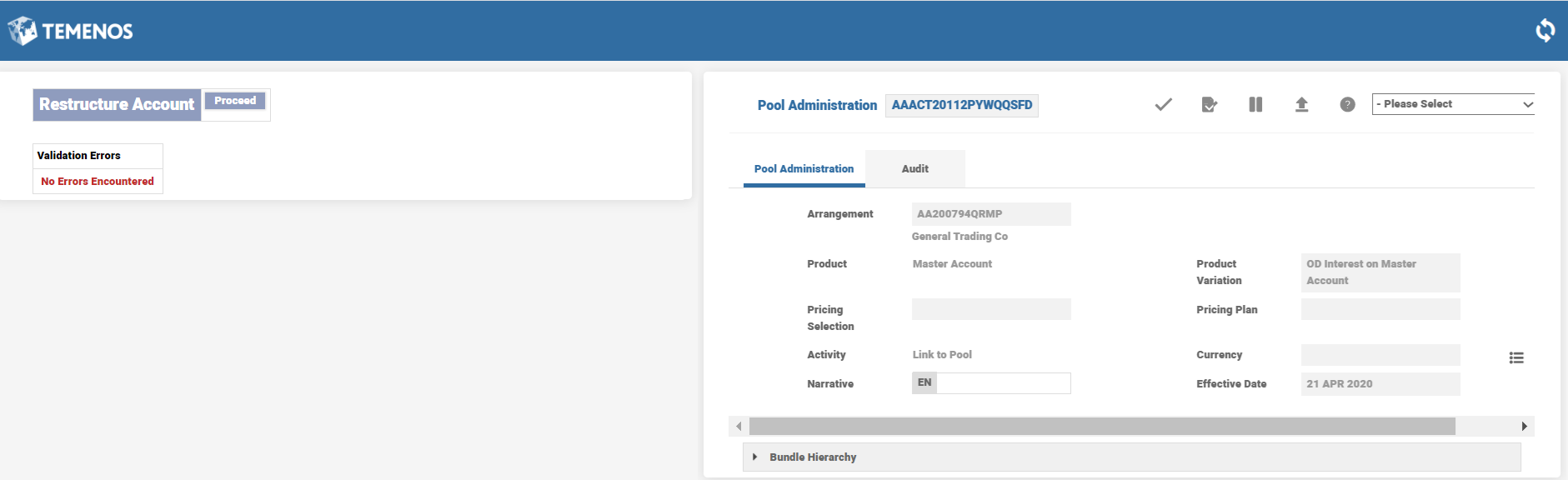

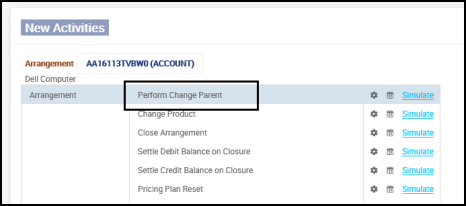

New Activity menu from the TR account, the User activity ACCOUNTS-CHANGE.PARENT-ARRANGEMENT can be initiated.

For restructuring, this activity happen during COB, hence, the Effective Date should be day +1.

The new parent account is changed to 2000003355, which is a new SA account.

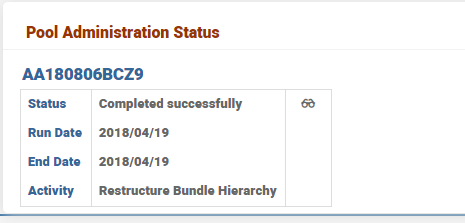

After authorisation and a COB is run, the restructure process is initiated.

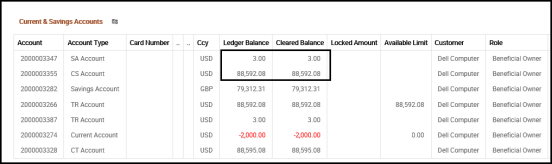

A balance of USD 88,592.08 is moved from (2000003347) to (2000003355) account.

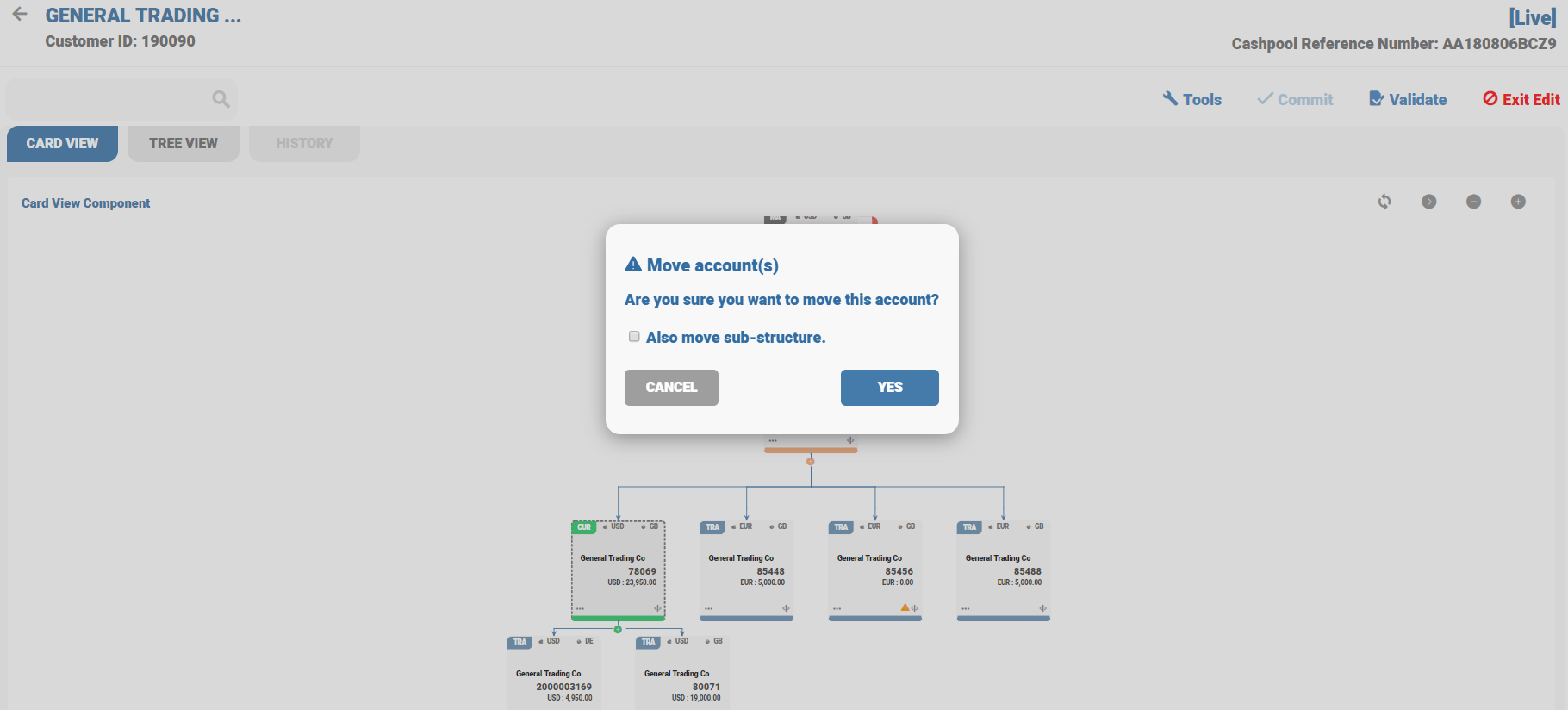

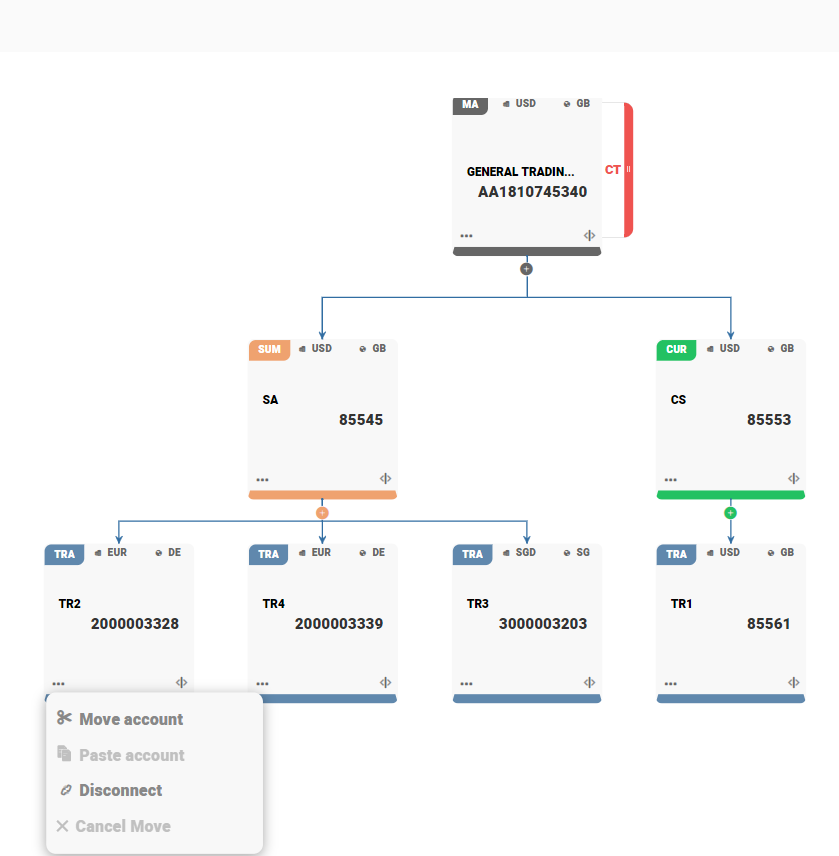

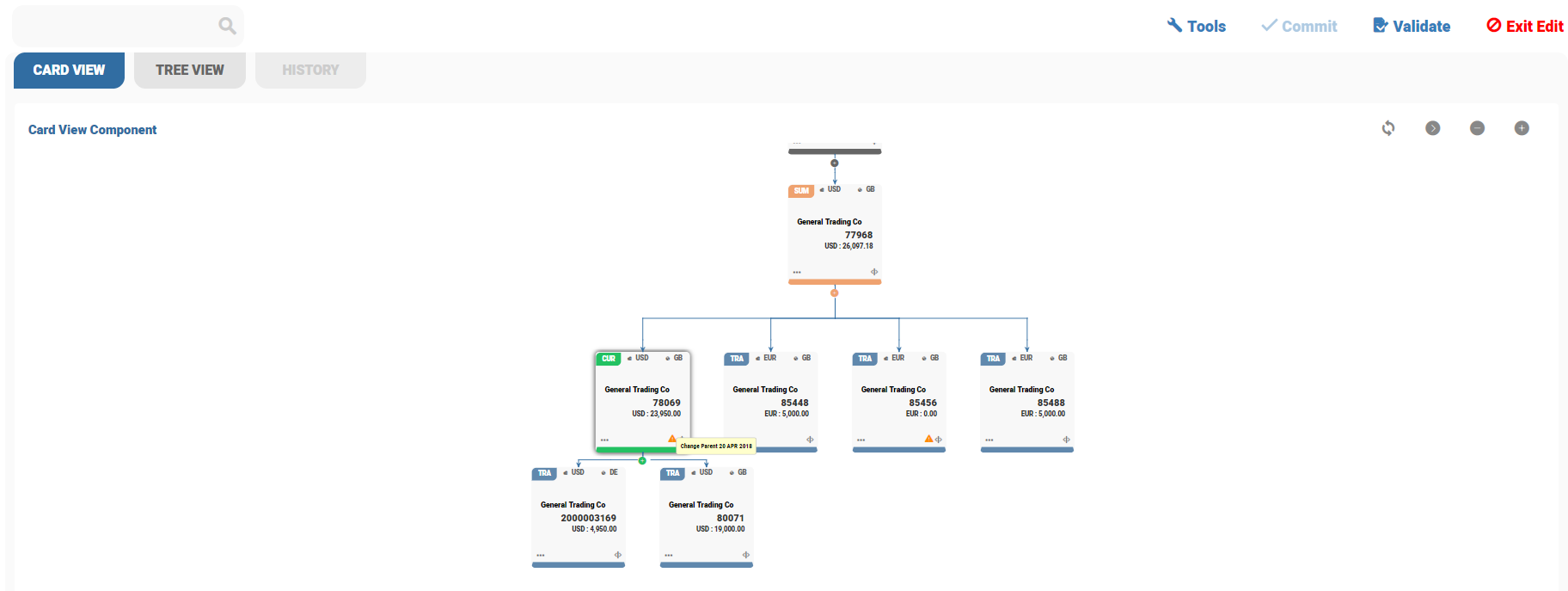

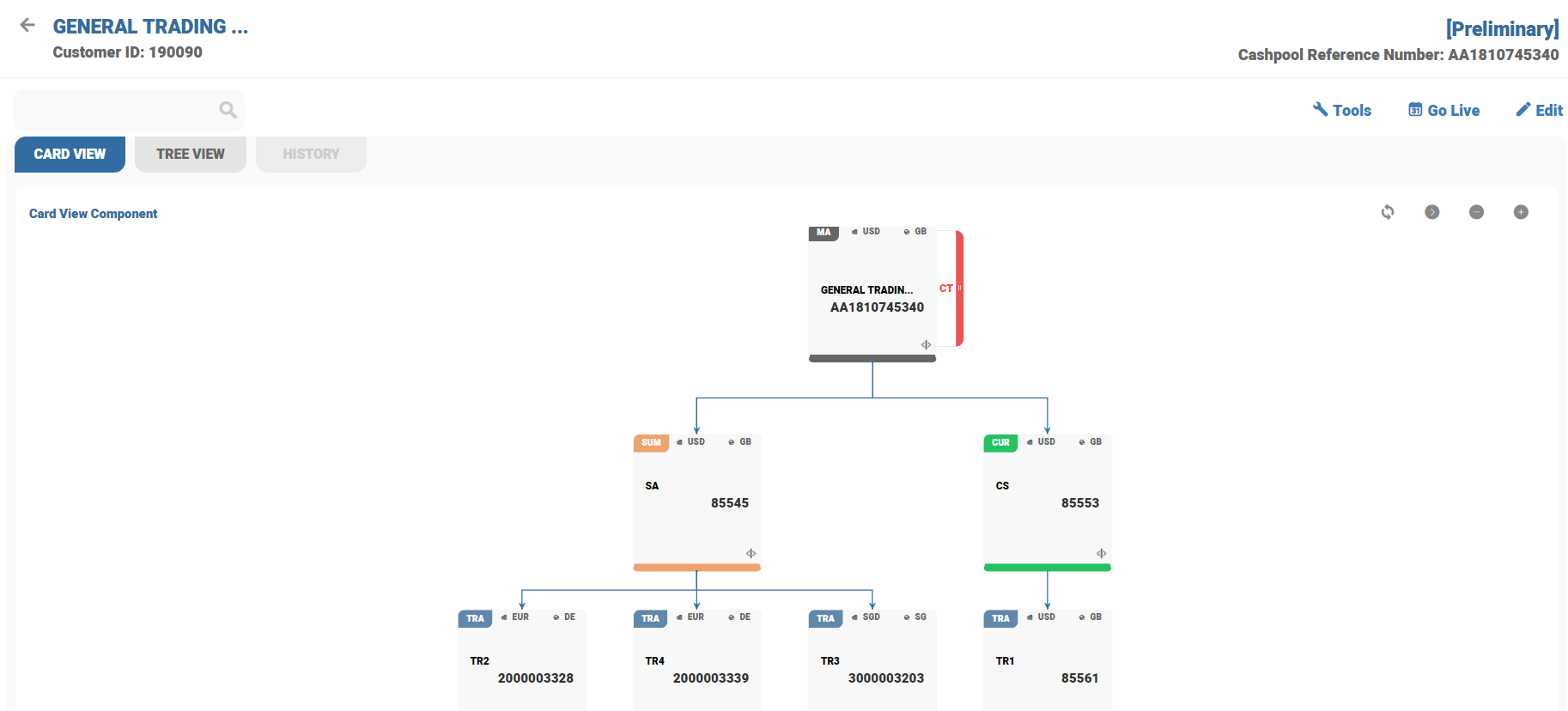

Intra-Cash Pool Movement of the TR/MTR - GUI

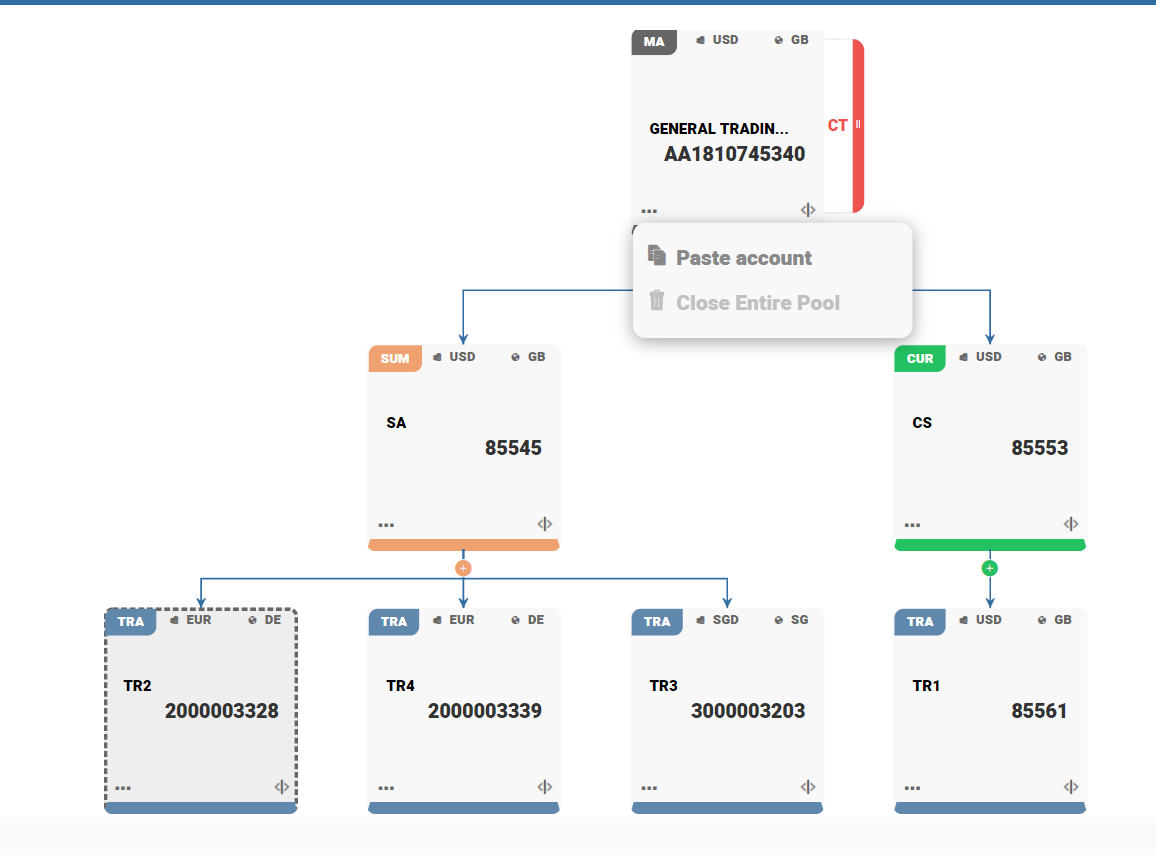

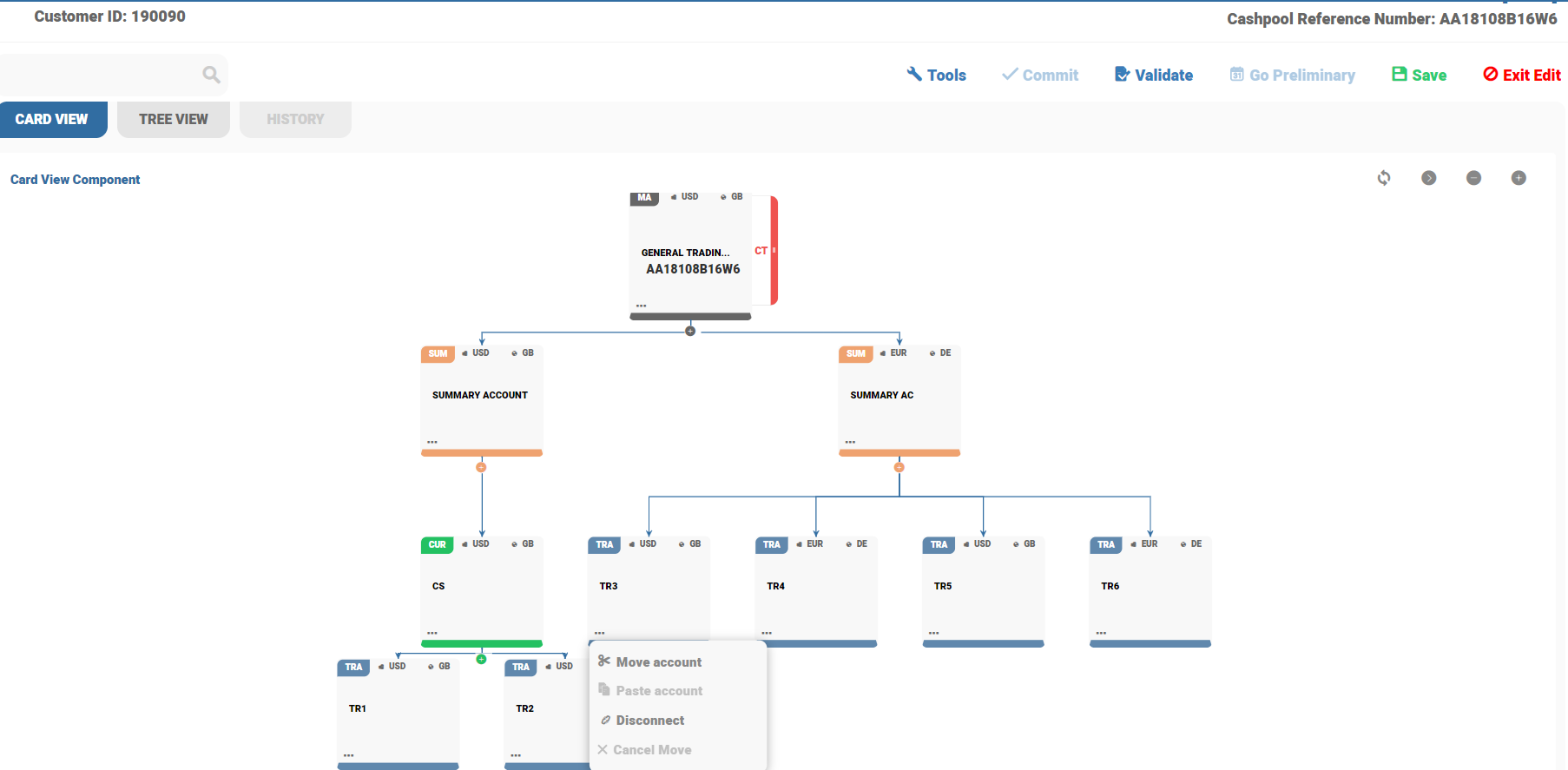

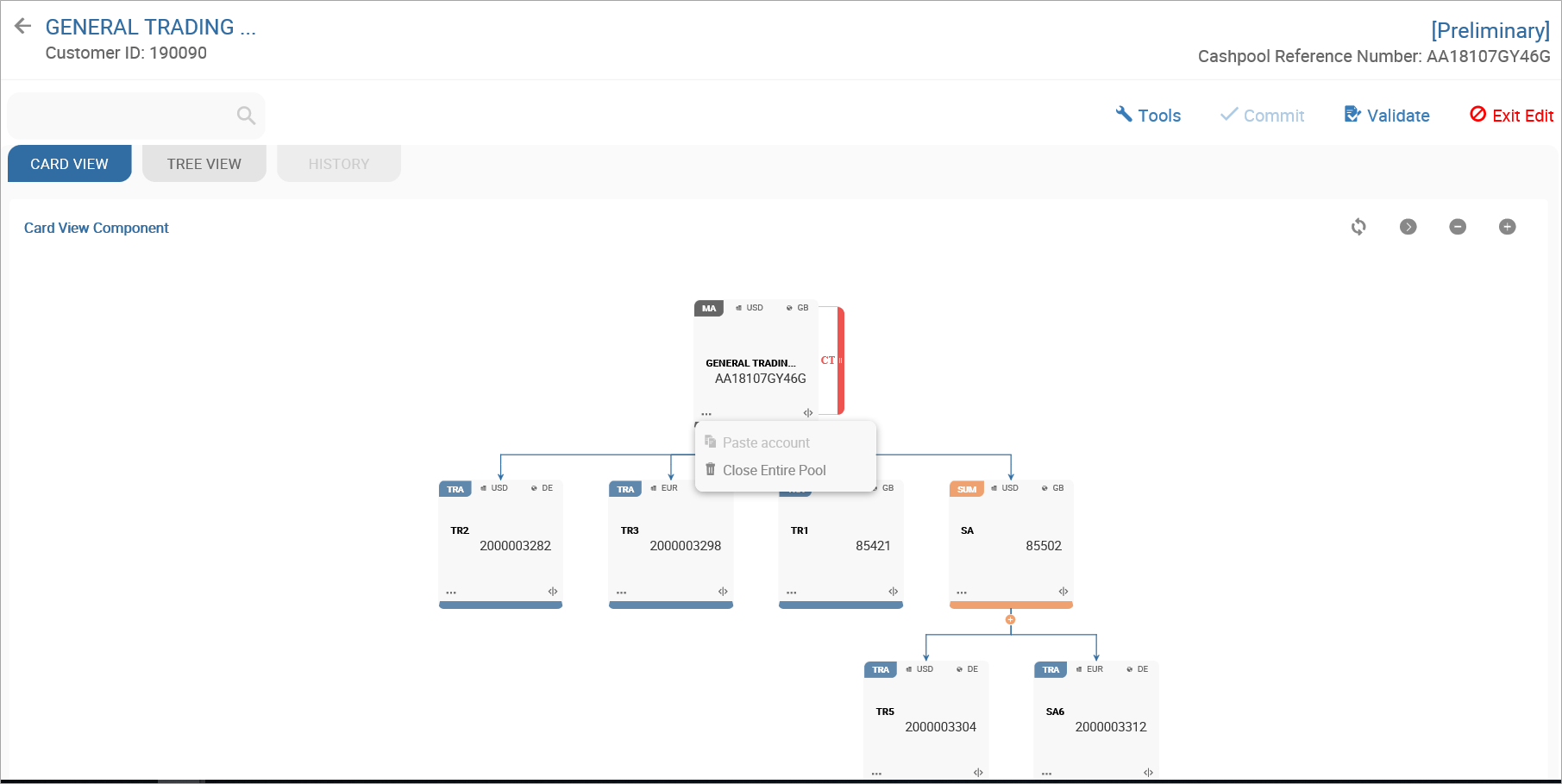

BN Pool accounts can be moved from one parent account to another parent accounts. To move an account, select the respective account, click and click Move account. Once the account is selected to move, select the target account and click Paste. When the account is already in Draft or Preliminary, the account is moved to the target parent immediately.

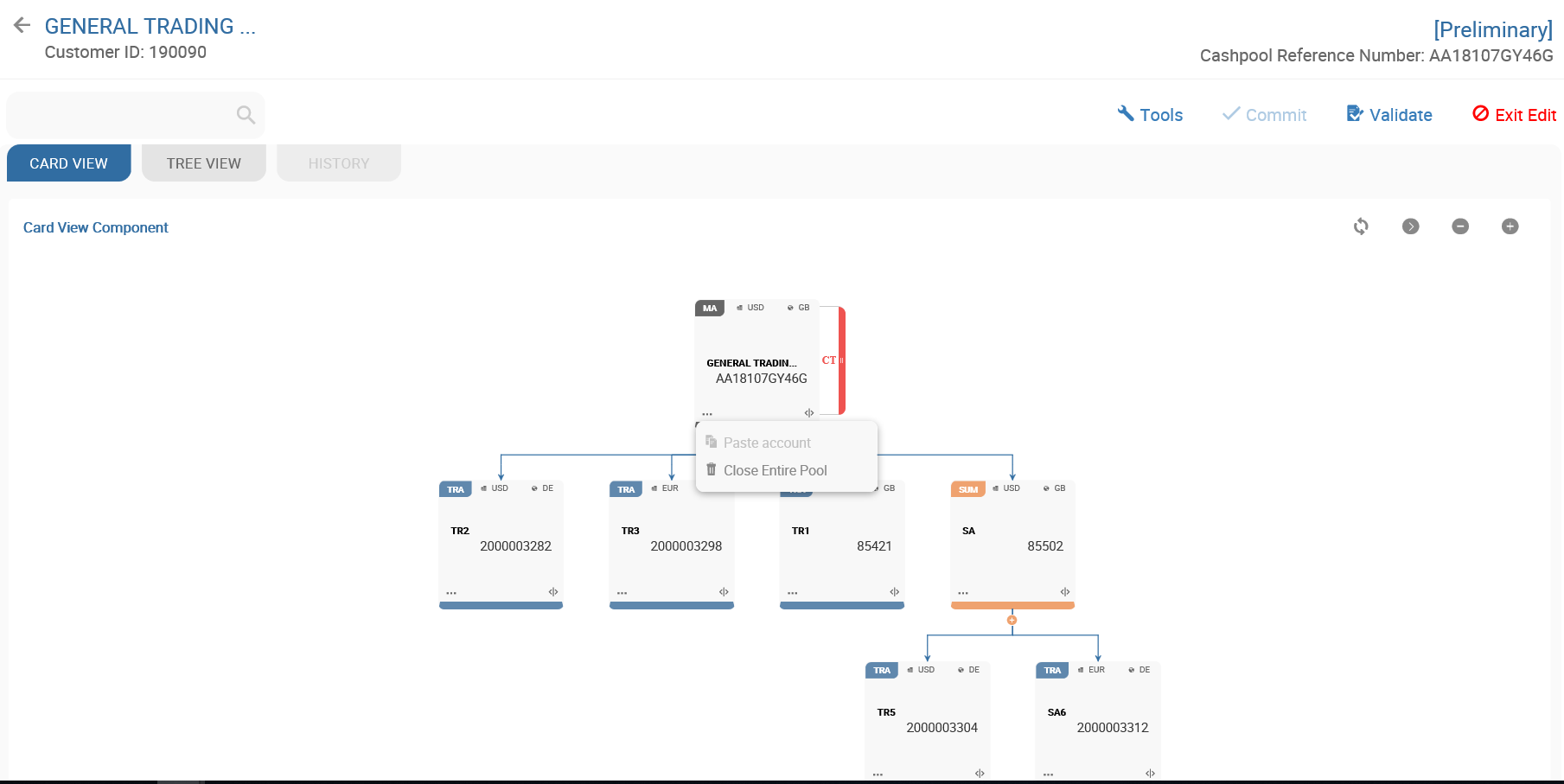

Select the target parent account and click Paste. When the account is in preliminary, the account is moved to the target parent account immediately.

Account 2000003328 is moved to the new parent, that is, bundle arrangement.

If the account is in Live, then the account is moved on the next working day or with a future business date. The account remains with the existing parent, terms and conditions remains the same. Once the system reaches the schedule date, the account is moved to the new parent.

Intra-cash pool movement of the Sub-structure (GUI)

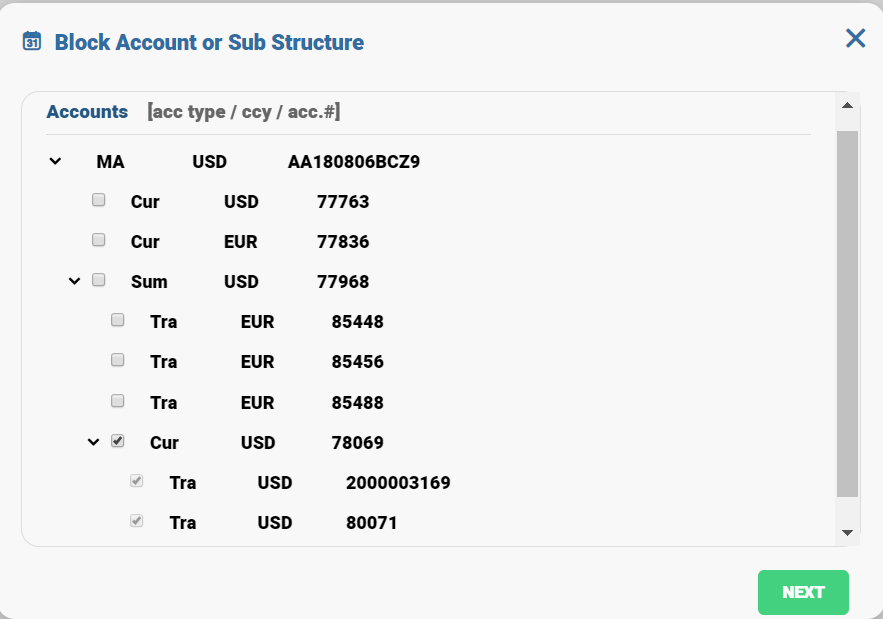

To move the sub-structure from one parent to another parent account, right-click the account that needs to be moved the new parent. New dialog box appears with confirmation, whether the account wants to be moved with sub-structure or only with the selected account. By clicking on Also move sub-structure, the entire sub-structure is moved to the new parent.

Temenos Transact scheduled a new activity and the account is moved on the scheduled date. Hover on the card to view the change parent details.

Pricing and Fees on Master Account

Financial institutions collect charges on master cash pool account, which is the master arrangement for the pool hierarchy, even when master cash pool account is a non-financial product.

Temenos core banking suite levies charges on master cash pool account (non-financial product) by extending the functionality of some of the property class to the bundle product line.

Example

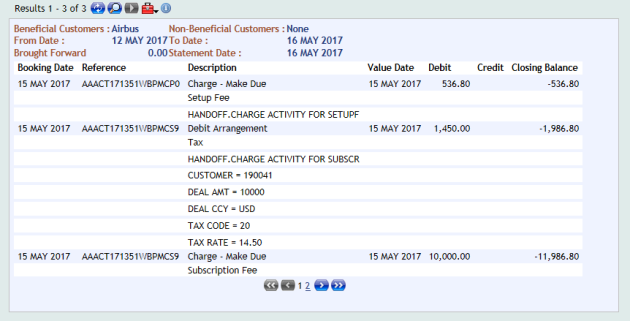

The charges levied on master cash pool account is posted to the nominated financial settlement account.

Bundle account /master account detail = Arrangement No AA17132HJ8T0
Settlement account detail = Arrangement No AA171323JK92, account no 85073
CT account detail = Arrangement NO AA17131SVQ33, account no 85057

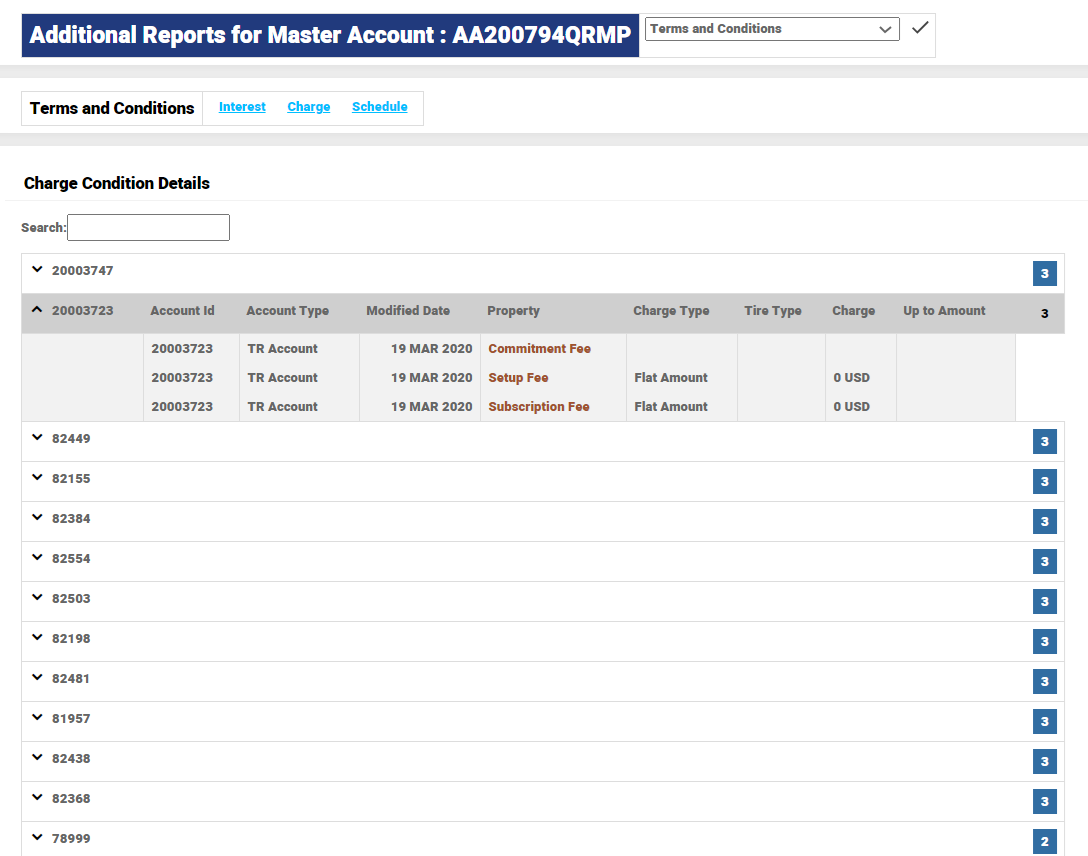

For the above master account following charges are configured
Subscription and setup fees are fixed as USD 1000 and EUR 500 respectively.

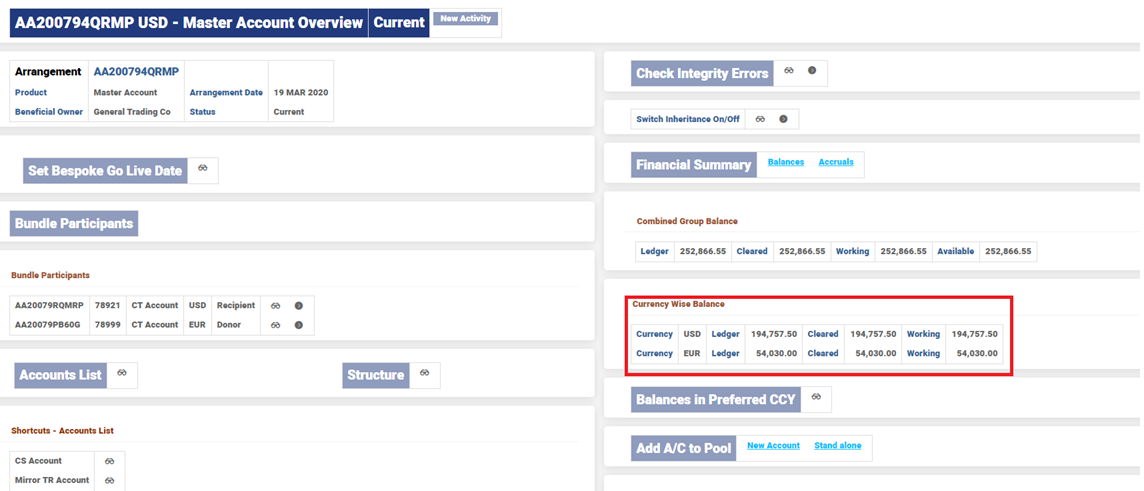

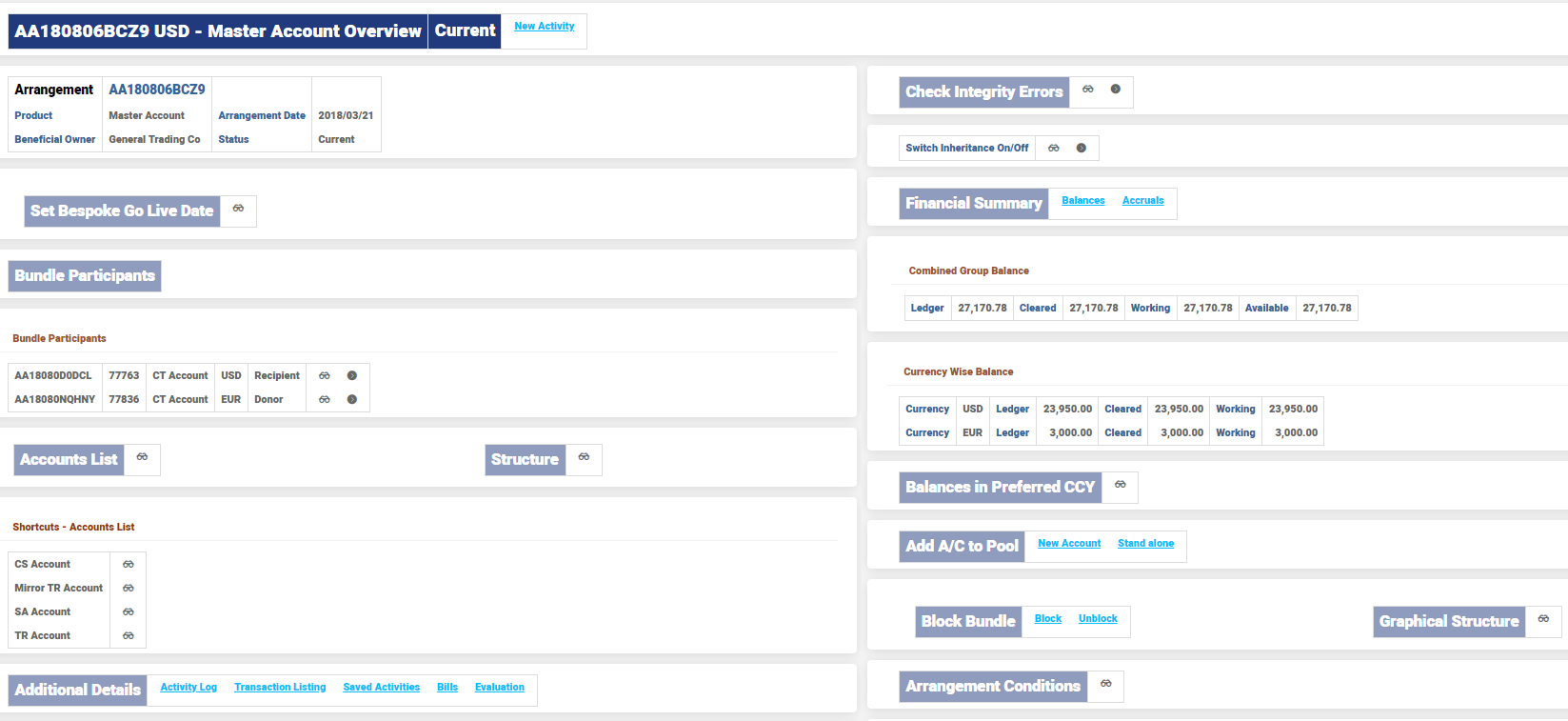

The below screenshot shows the Master Account overview:

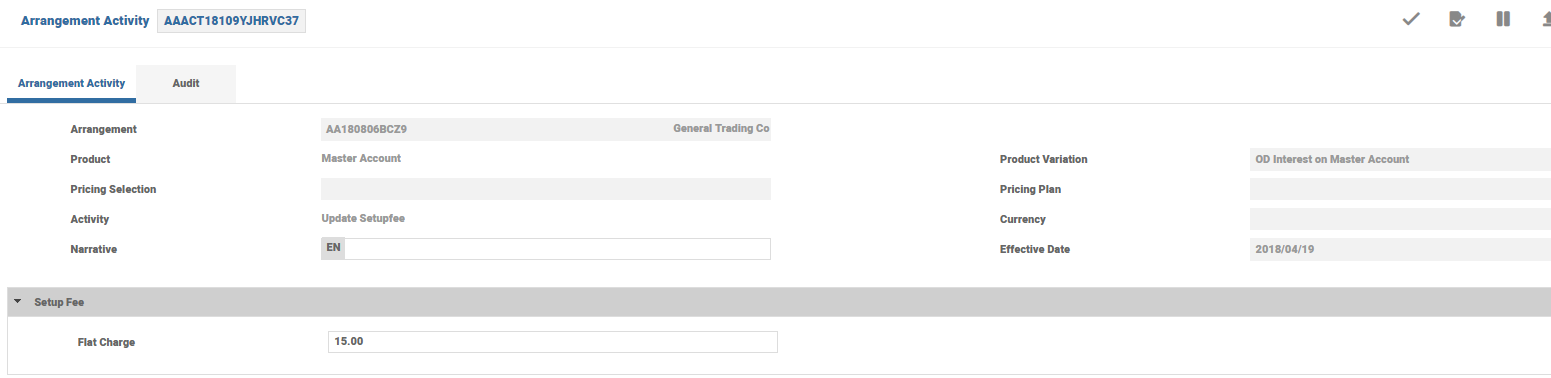

The setup fee is configured as fixed amount of EUR 500 for this bundle accouent.

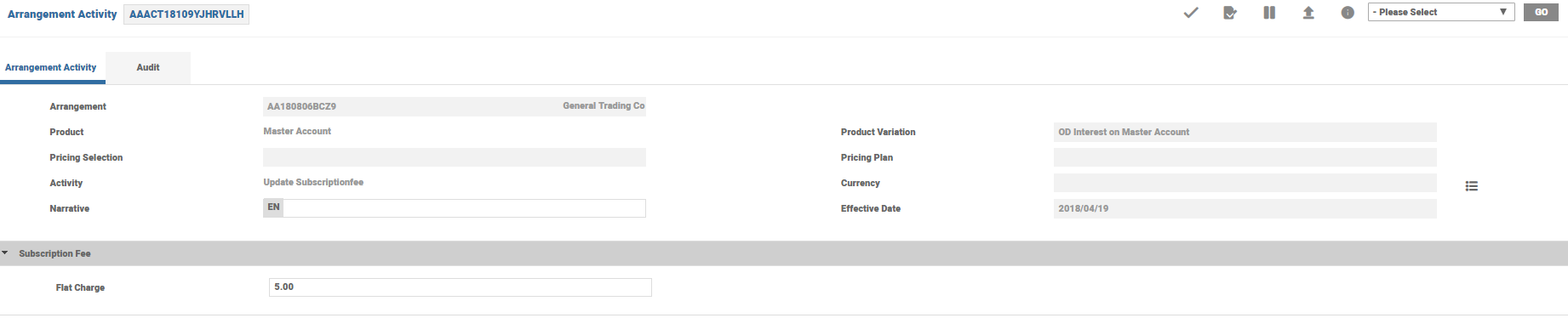

Subscription fee is configured as fixed amount of USD 10000 for this bundle account.

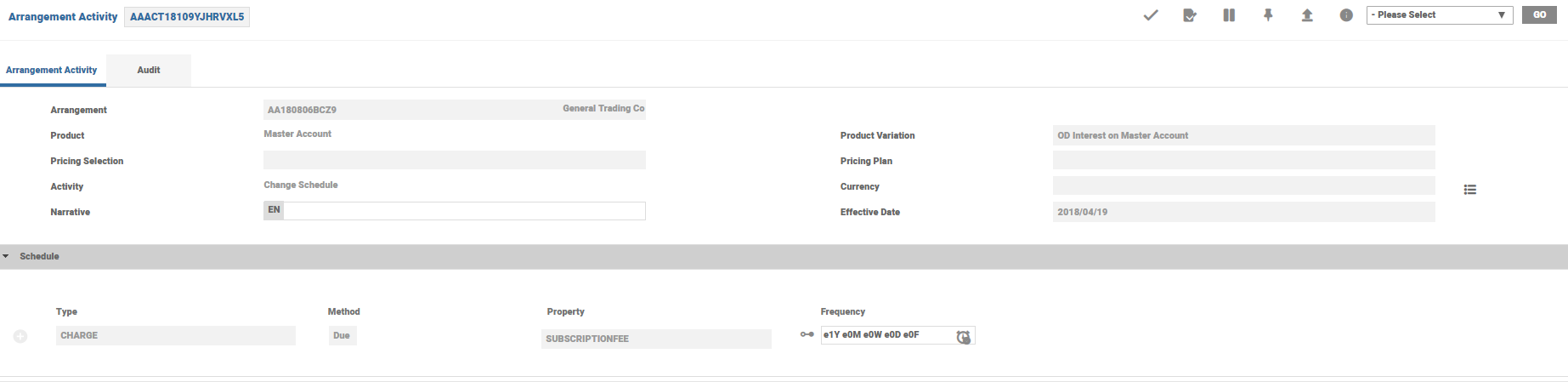

Schedule for collection of subscription fees is 3 days.

Defined default settlement account is 85073.

Defined settlement account 85073

Charges are levied on master account, debited to default settlement account as shown below:

Difference in the charge amount for setup fee is due to the currency difference.

Internal FX Pricing Arrangement Creation

The system is enhanced with a functionality to perform intra cash pool transactions between transaction accounts, which are in different currencies without affecting the currency top accounts’ balance. The functionality is called back-to-back FX and based on it, manual (FUNDS.TRANSFER) and automated (AC.CASH.POOL) transfers are executed as a balanced batch. These transactions are performed between four accounts, (two for each currency involved in the transaction). The Back-to-Back FX field in FT.TXN.TYPE.CONDITION and AC.SWEEP.TYPE applications allows the system to perform these transactions.

When a FUNDS.TRANSFER record or AC.CASH.POOL transaction is set up in the system (with the transaction type as FT.TXN.TYPE.CONDITION and Back-to-back FX field set as Yes, in AC.SWEEP.TYPE record), the system requests for another pair of accounts in the same currencies, as the ones set in the debit and credit fields. The other pair of accounts are called contra booking settlement accounts.

The counter booking settlement accounts can be attached at the master account bundle arrangement level or manually entered in the FUNDS.TRANSFER or AC.CASH.POOL records. The accounting core posts entries in all four accounts involved in the transaction, balancing the entries in each currency.

Example

A user defines a manual transfer by debiting TR (12345) in EUR and crediting TR (67899) in USD for EUR 1,000.

The back-to-back FX functionality requests two other TR accounts in EUR (22333) and USD (44555) to be entered in the transaction, to post the entries as a balanced batch.

The exchange rate (EUR/USD) is 1,081177 and the accounting entries are:

Account Number	DR/CR	Amount
12345	DR	EUR 1,000
67899	CR	USD 1,0811.77
22333	CR	EUR 1,000
44555	DR	USD 1,0811.77

The balances of the CT accounts in EUR and USD do not change, as the debit and credit entries in each currency are balanced.

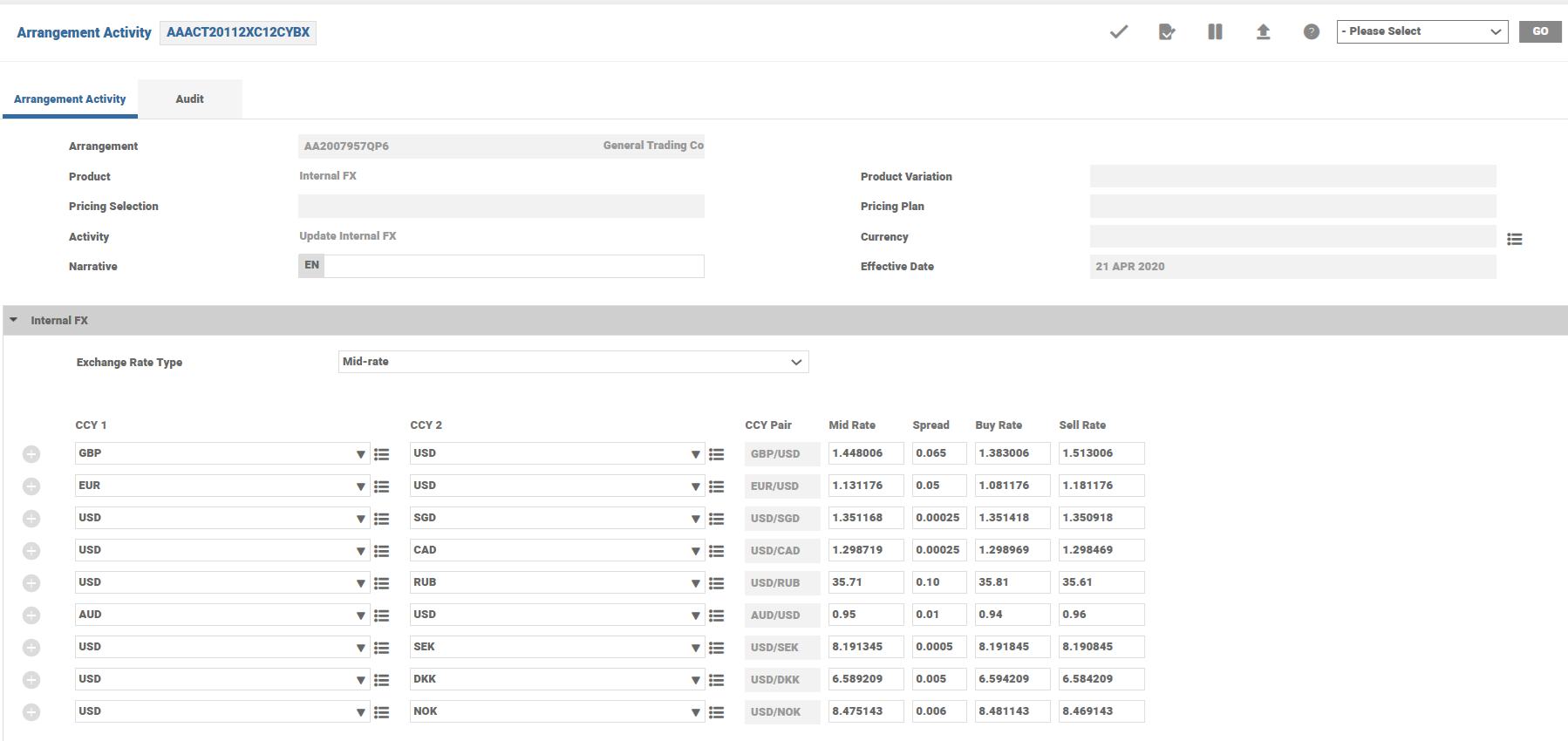

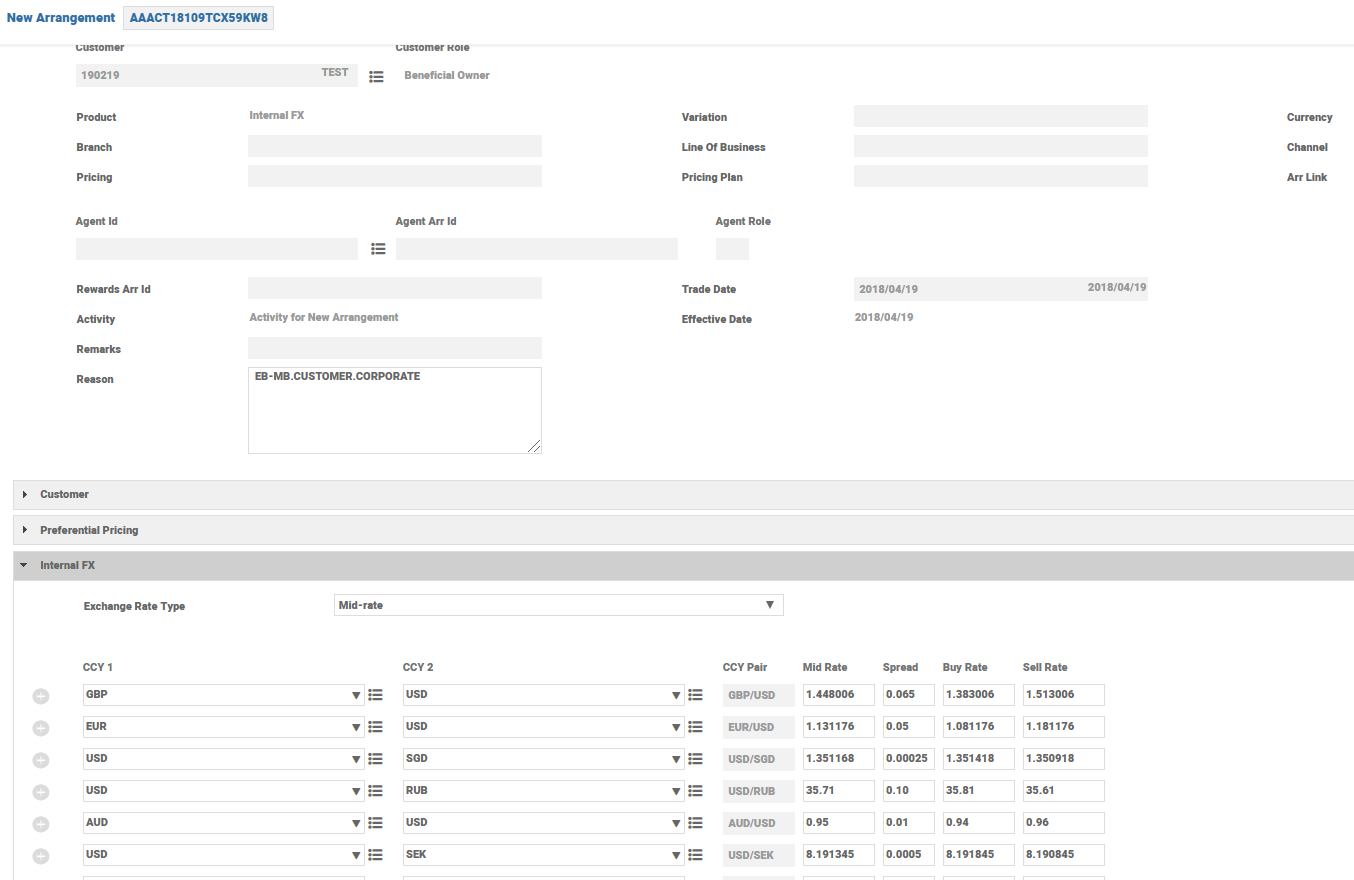

Defining Exchange Rates for Intra-Cash Pool FX Transfers

In AA, a new under this product,

The user defines the exchange rates for each currency pair (that is used when the system performs intra-cash pool transactions), under the Preferential Pricing product line, called INTERNAL FX.

These can be defined as product conditions under the INTERNAL FX product.

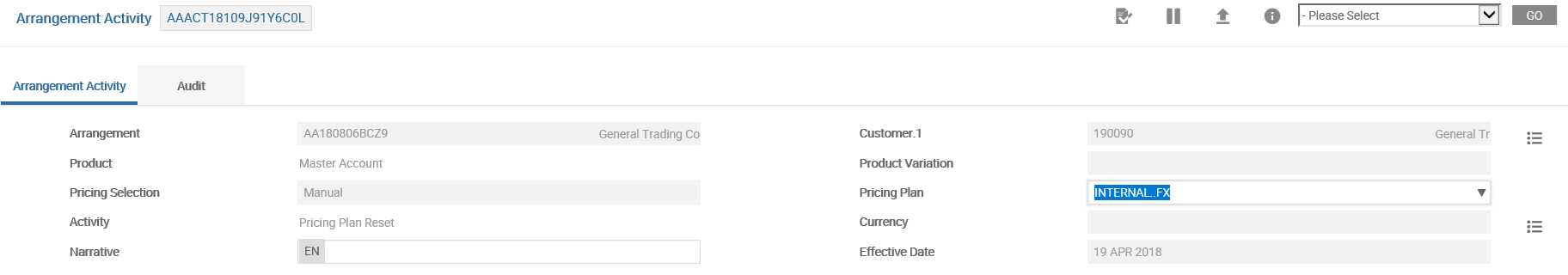

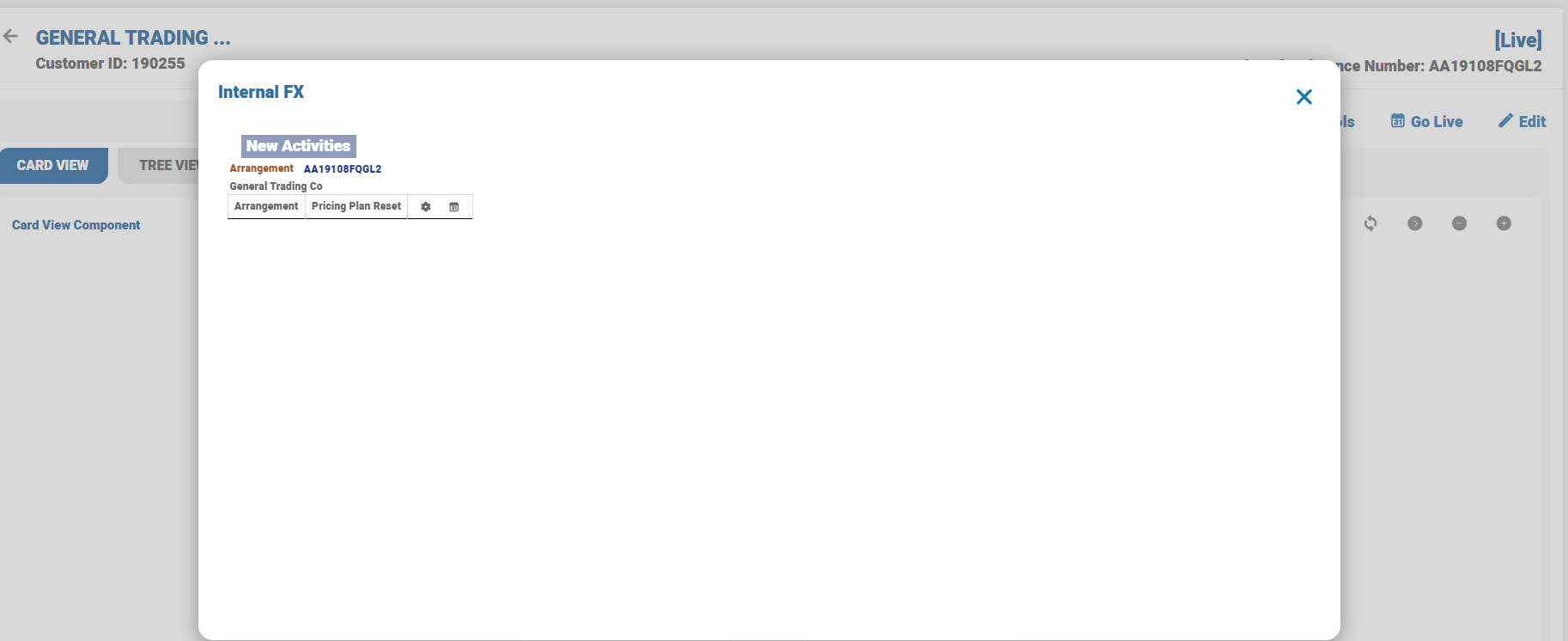

The user opens an FX preferential pricing for the specific customer for which a new master account bundle arrangement is opened, after defining the exchange rates.

For example, internal FX preferential pricing plan is attached to a Customer 190198.

After a preferential pricing plan is opened for the Customer, it is attached when opening the master account bundle arrangement. It is a mandatory step.

When internal transactions are performed using FUNDS.TRANSFER or AC.CASH.POOL applications, the system uses the exchange rates defined for this product.

Defining Exchange Rates for Intra-Cash Pool FX Transfers

In AA, a new under this product,

The user defines the exchange rates for each currency pair (that is used when the system performs intra-cash pool transactions), under the Preferential Pricing product line, called INTERNAL FX.

These can be defined as product conditions under the INTERNAL FX product.

The user opens an FX preferential pricing for the specific customer for which a new master account bundle arrangement is opened, after defining the exchange rates.

For example, internal FX preferential pricing plan is attached to a Customer 190198.

After a preferential pricing plan is opened for the Customer, it is attached when opening the master account bundle arrangement. It is a mandatory step.

When internal transactions are performed using FUNDS.TRANSFER or AC.CASH.POOL applications, the system uses the exchange rates defined for this product.

Preferential Pricing FX Condition

When the user updates rate through Preferential Pricing FX condition, (with a date effective in the future), the new rates are available to all TRs from that date.

When the user updates rate in Preferential Pricing FX condition, with a date effective in the past (T-3),

Existing transfers are not recalculated.
New internal FX transactions takes rates effective as of the booking date.

Static Review on Pricing Arrangement

The system automatically closes the pricing arrangement on static review, if the customer is no longer eligible for this pricing arrangement

This would happen as the Eligibility rules for the Internal FX Pricing arrangement are the same as that of the Master Account.
When a customer is not eligible to open a master account, the customer is not eligible to have an internal FX pricing arrangement either.

Transaction Processing

The transfer between two TR accounts belonging to the same pool but different currency results in the following: (The transfer is manual (through FT) or automated (standing orders or sweeps))

Pool balance is not changed
Currency position is not created in the bank’s books
This means, the debit is balanced against another TR belonging to the debit TR currency and the credit is balanced against another TR belonging to the credit TR currency.
The user (corporate customer) specified internal FX rate is used as the exchange rate for the currency conversion

When a user transfers EUR 1000 from a EUR TR account to a USD TR account in the same pool, and if the internal FX rate for EUR/USD is 1.25, then the following occurs:

DR	CR
EUR TR 1,000.00	Contra EUR TR 1,000.00
Contra USD TR 1,250.00	USD TR 1,250.00

Transactions in BN Pool

This functionality allows the user to setup balance sweeps between TR’s, which are part of the same BN structure and are in the same currency.

The validations introduced in AC.CASH.POOL, along with the change made in TRANSACTIONS and AC.SWEEP.TYPE application are:

The account number in @ID of AC.CASH.POOL and Link Account field are TR members of the same BN pool (or a member of the BN pool at the date defined in the Frequency field and if not, raises an error message alternatively). The system validates this when the internal sweep is defined, based on the Next Run Date given by the value entered in the Frequency field.
The accounts involved in the transfer are open in the same currency.

When the records are set in TRANSACTIONS, AC.SWEEP.TYPE and AC.CP.GROUP.PARAM applications, the user can define a sweep record for maintenance, surplus or zero balancing type.

The user can defines the below details:

The minimum balance to be maintained (in case of maintenance sweep or zero-balancing)
The maximum balance to be maintained (in case of surplus sweep or zero-balancing)
Frequency
Maximum amount to be transferred
Minimum amount to be credited (for maintenance sweeps)
Minimum amount to be debited (for surplus sweeps)
Schedule (intraday or end of day)
Sweep cancel date
Sweep suspense start date and end date (the period when the sweep is suspended, if applicable).

Example:

The below examples enables the user to understand the setting up of sweeps:

Setting up Balance Sweeping

The below scenarios explains the setting up of sweeps:

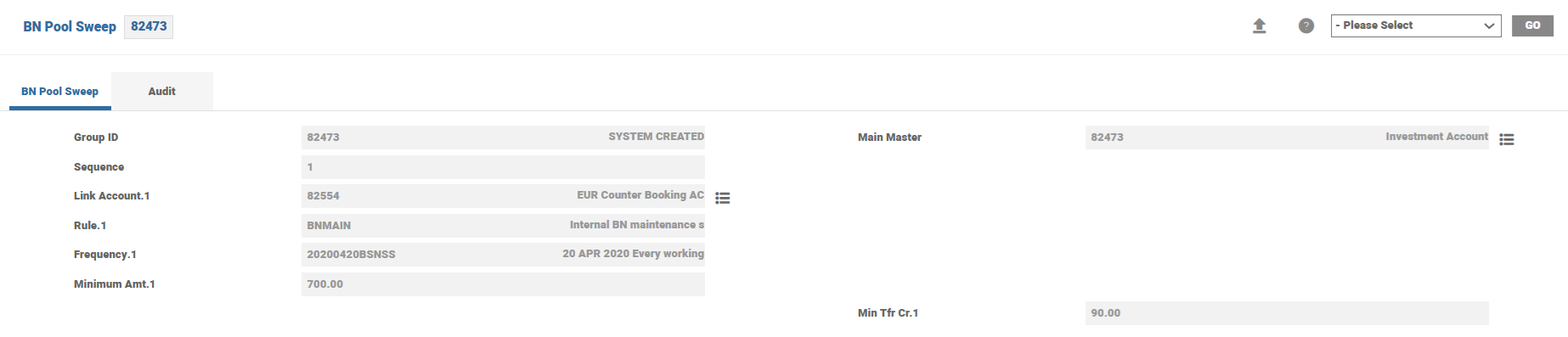

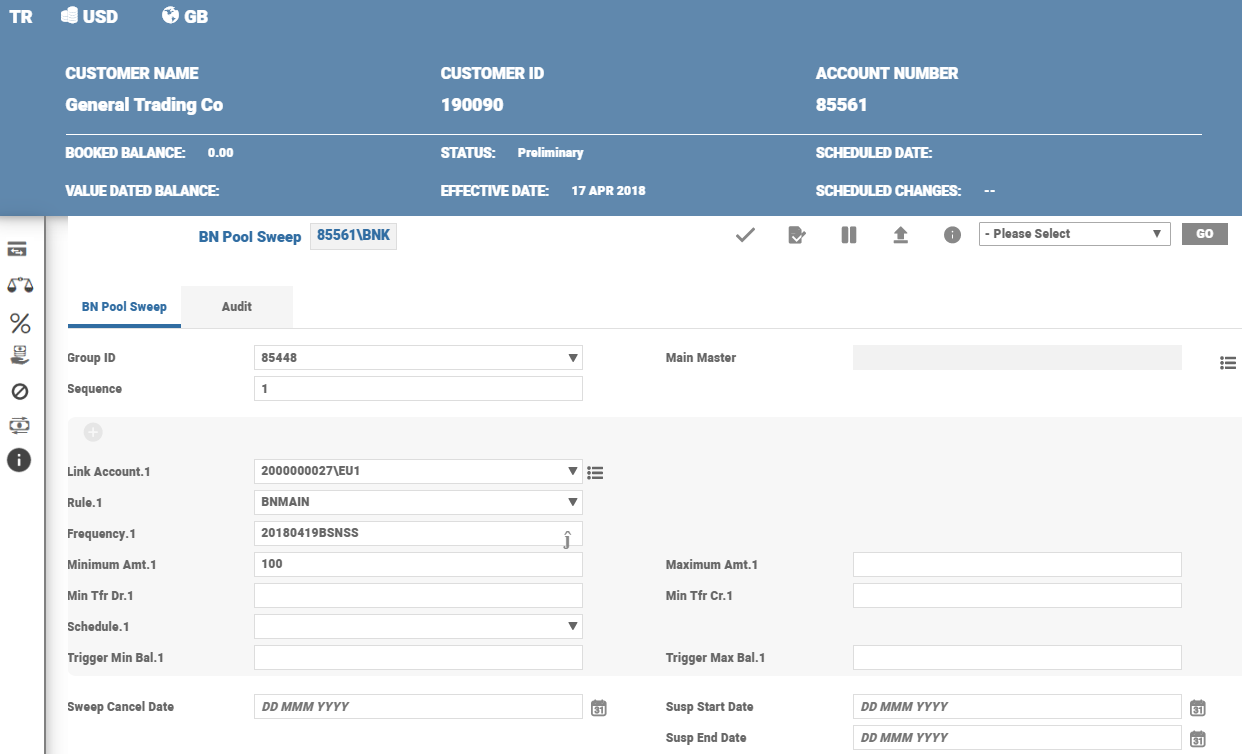

Setting up a Maintenance Sweep

A maintenance sweep record is created for two transaction accounts, which are part of the same BN pool and in the same currency. The source and link account has balances as 500 EUR and 2000 EUR respectively.

The record is created to maintain the balance of the source account (84565) as 700 EUR. This is done by setting the amount value in the Minimum Amt.1 field.

The user creates the maintenance sweep relationship by setting the TR 84506 as link account and subsequently selecting the BNMAINT option in the Rule.1 field.

The user sets the date when the sweep is run, by selecting the value in the Frequency field. In the presented example, it is set as daily, that is, every business day.

Enter Min. Tfr Cr 1 for 50 EUR, the user applies restrictions for creation of sweeps for a smaller amount. The sweep takes place if the sweep amount is greater than 50 EUR.

Also, the user sets a ceiling of 5000 EUR on the amount that is swept or transferred by entering this value in the Up to Amount.1 field.

This sweep does not run between (01 November 2018 to 29 November 2018), as the user has specified these dates in the Susp Start Date and Susp End Date fields.

The system checks the balance of the source account every business day until the user decides to cancel the sweep, (as cancel date is not set for this sweep).

As the balance of the TR account 84565 is below the minimum amount that is maintained, the system sweeps 200 EUR from the link account crediting the amount into the source account.

After the sweep transaction is done, the balance of the two TR accounts are updated as follows:

Available balance for the TR account 84565 is 700 EUR
Available balance for the TR account 84506 is 1800 EUR
Sweep transaction transfers 200 EUR from the link account to the source account

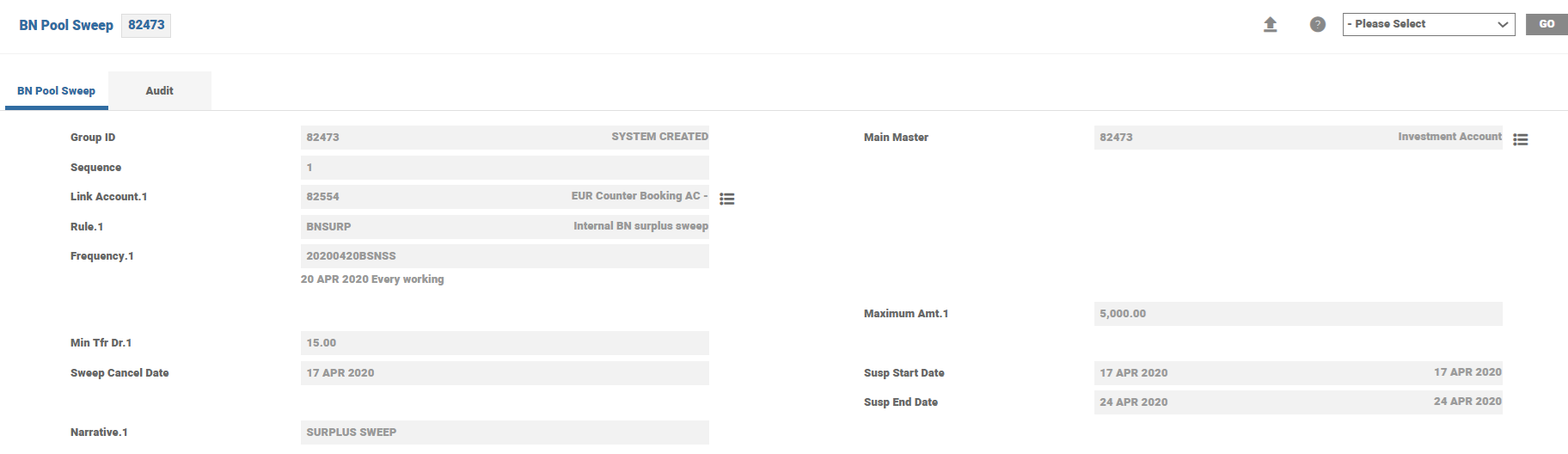

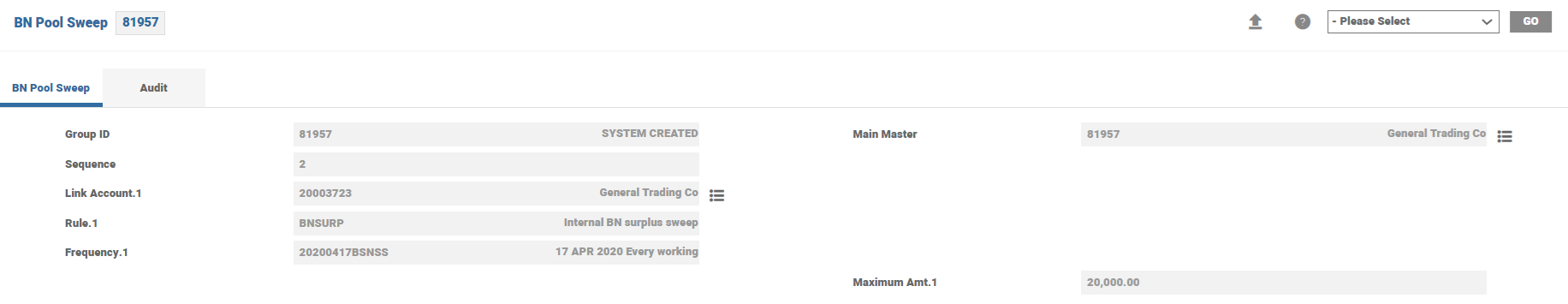

Setting up a Surplus Sweep

A surplus sweep record is created for two transaction accounts, which are a part of the same BN Pool and in same currency. The source and link account has balances as 1900 EUR and 2000 EUR respectively.

The record is created for the balance of the source account (84565) that is maintained at 1000 EUR by setting the amount value in the Maximum Amt.1 field.

The user creates the surplus sweep relationship by setting the TR 84506 as link account and selecting the BNSURP option in the Rule.1 field.

The user sets when the sweep should be run by selecting a standard value in the Frequency field. In this example, the user has set it as daily, that is, every business day.

Completing the field named ‘Min. Tfr Dr 1’ for 15 EUR, the user applies restrictions for the creation of sweeps for a smaller amount. The sweep takes place if the sweep amount is greater than 15 EUR.

This sweep is not run between (04 January 2018 and 04 February 2018), as the user has specified these dates in the Susp Start Date and Susp End Date fields.

The sweep record is automatically cancelled after 04 May 2018, as this date is specified in the Sweep Cancel Date field.

As the balance of TR account 84565 exceeds the maximum amount set to be maintained, the system moves the surplus amount from the source account crediting the link account.

After the sweep transaction is done the balance of the TR accounts is updated as follows:

Available balance for the TR account 84565 is 1000 EUR
Available balance for the TR account 84506 is 2900 EUR
Sweep transaction transfers 900 EUR from the source account into the link account

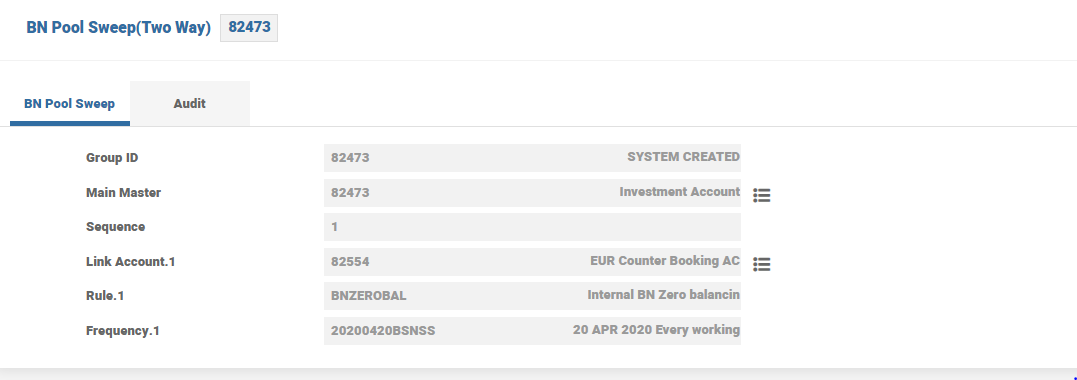

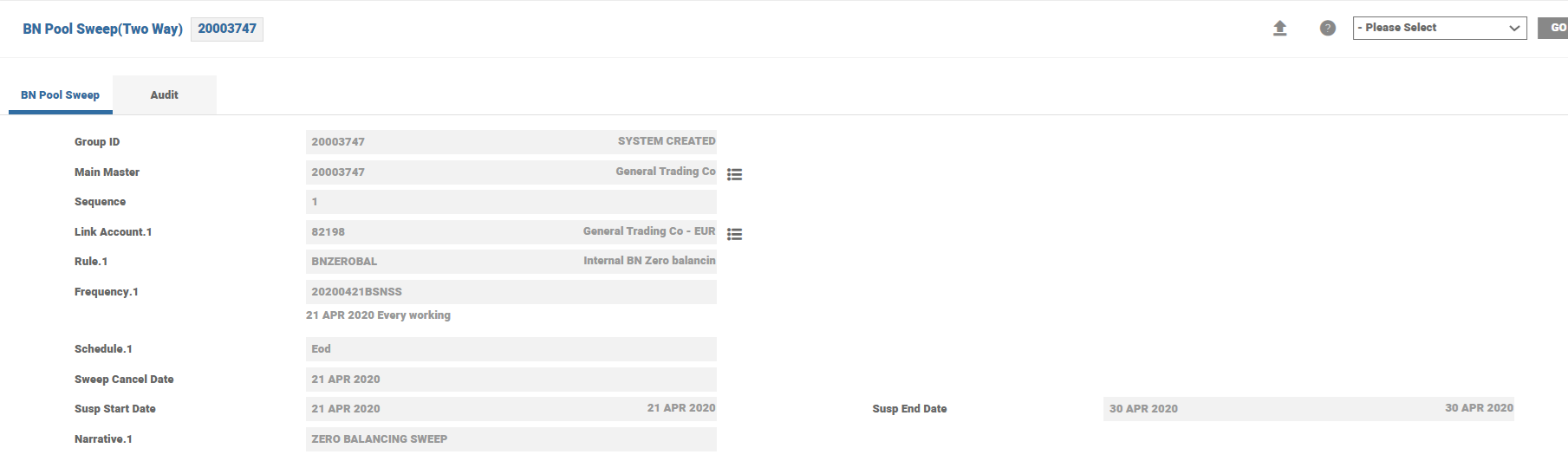

Setting up a Zero Balancing Sweep

A zero balance sweep record is created for the source account (84565) and the balance is maintained as zero. This is done by setting the Minimum Amt.1 and Maximum Amt.1 fields’ value as zero.

The user creates the zero balance sweep relationship by setting the TR 84506 as link account and selecting the BNZEROBAL option in the Rule.1 field.

The user sets when the sweep should be run by selecting a standard value in the Frequency field. In this example, the user has set it to weekly, which is every monday.

This sweep is not run (between 09 July 2018 and 07 September 2018), as the user has specified these dates in the Susp Start Date and Susp End Date fields respectively.

The sweep record is cancelled automatically after 22th of November 2018 as this date is specified in the Sweep Cancel Date field.

The system checks the balance of the source account according to the frequency set until the cancel date is met. If the balance of the source account is different from zero, it is adjusted as follows:

If the balance exceeds zero, the difference is moved into the link account.
If the balance is below zero the difference is swept from the link account.

Pool Sweep

The AC.SWEEP.TYPE application is improved, when defining the sweep types to be used in a sweep record, to offer the possibility to consider the balance of the entire Cash Pool or the currency position when the system triggers the sweeping transaction.

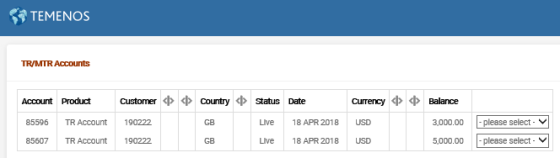

A BN pool structure is created in the system, having the following accounts and balances:

Master account - AA181081MPX8
Currency top account USD - 85577 with a total balance of 8000 USD
Currency top account EUR- 85588 with a balance of 0 EUR
Transaction account USD - 85596 with a balance of 3000 USD
Transaction account USD - 85607 with a balance of 5000 USD
Transaction account EUR - 85618 with a balance of 0 EUR

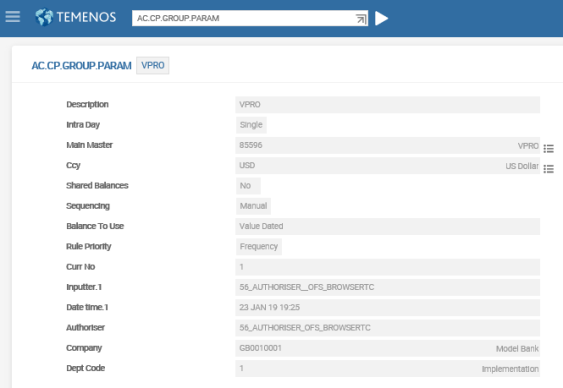

A cash pool group (VPRO) is created in the system in the AC.CP.GROUP.PARAM application.

A maintenance sweep instruction is created in the system, using the sweep type (BNMAIN-CT), where the Pool Sweep field is set to Currency.

The sweeping record is set between (transaction 85596 and a stand-alone account 75914) to maintain a minimum balance of 10000 USD.

Example 2

A maintenance sweep record type is created in the system by setting the Pool Sweep field as Cash Pool.

A BN pool structure is created in the system with the following accounts and balances:

Master account - AA181081MPX8 (USD) with a total balance of 10260 USD (the total balances of the CT accounts converted to USD
Currency top account USD - 85577 with a total balance of 8000 USD
Currency top account EUR- 85588 with a balance of 2000 EUR
Transaction account USD - 85596 with a balance of 3000 USD
Transaction account USD - 85607 with a balance of 5000 USD
Transaction account EUR - 85618 with a balance of 2000 EUR

A cash pool group (VPRO) is created in the system in the AC.CP.GROUP.PARAM application.

A maintenance sweeping instruction is created in the system, using the sweep type (BNMAIN-CT), where the Pool Sweep field is set to Cash Pool.

The sweeping record is set between a transaction (85596) and stand-alone account (75914) to maintain a minimum balance of 10000 USD.

Considering that the option Cash Pool is setup, the system considers the entire cash pool balance in the nominated currency (USD) and evaluates how much the system needs to sweep. In this case, the entire balance of the cash pool is 10260 USD and the system is set to maintain a minimum of 10000 USD, (that is, the system is sweeps 260 USD in the transaction account mentioned as a sweeping account.

BN Pool Emergency Block

In the CUSTOMER.MASS.BLOCK application, the user can provide the AA Bundle Arrangement ID in the AA Bundle ID field to block all the accounts, which are part of that bundle for transaction processing.

In case of BN, by entering the AA Bundle Arrangement ID and committing the record, all currency top accounts, which are part of that bundle is blocked for transaction processing (posted against transaction accounts, which are part of the same BN structure).

Example: A BN structure is created in the system with master account arrangement bundle ID as AA171075RFH6.

This bundle arrangement has two currency top accounts: AA17107RHMWK (EUR) and AA17107BB6H6 (USD).

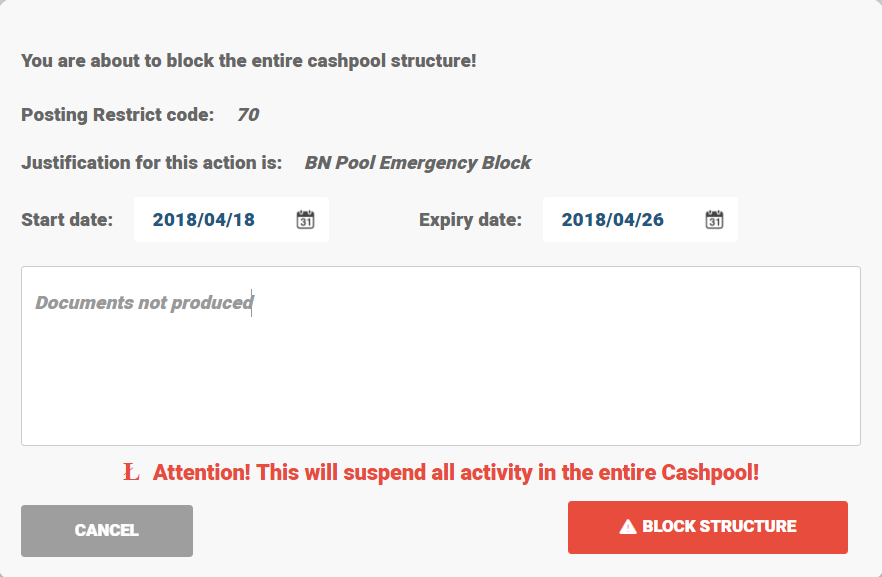

Block Entire Cashpool structure (GUI)

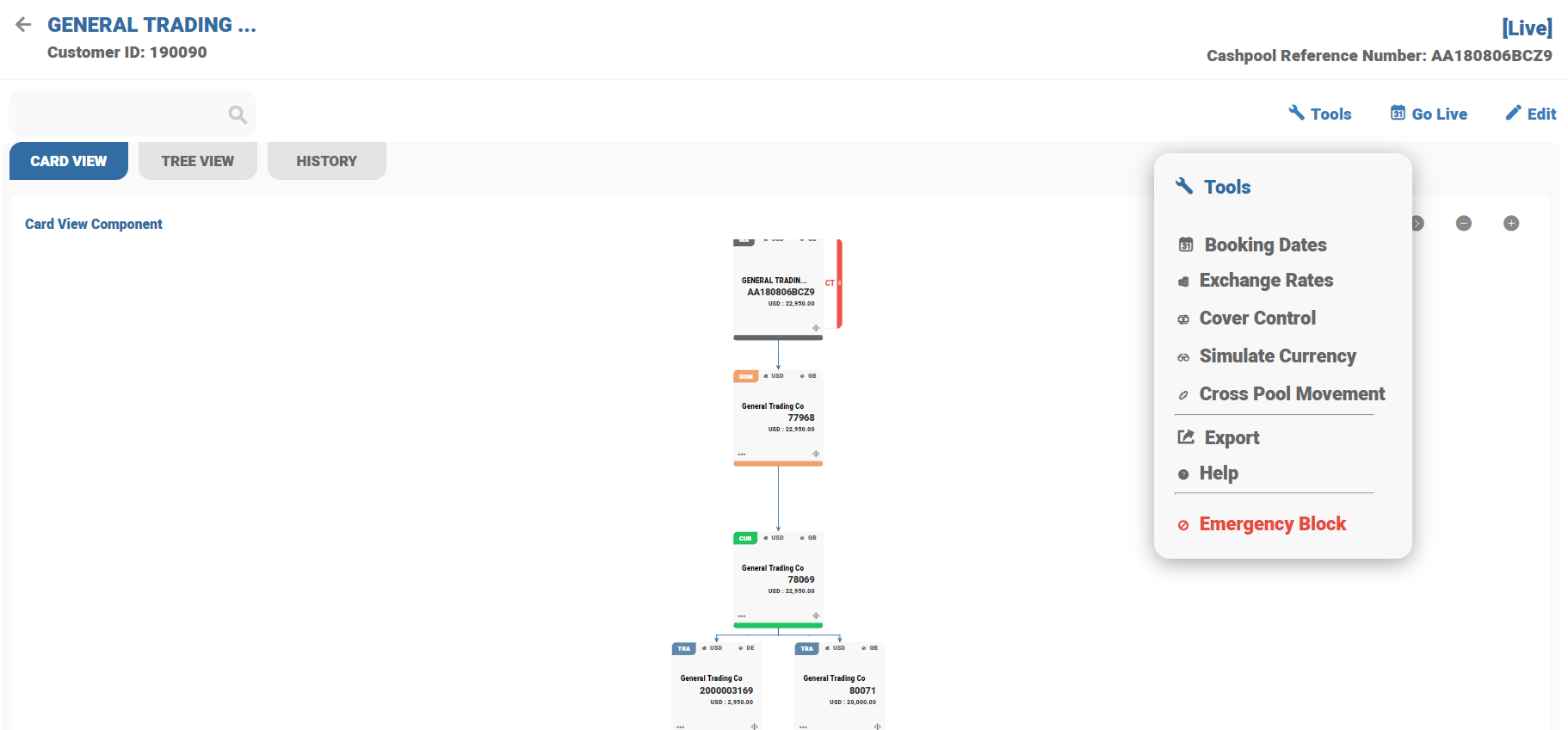

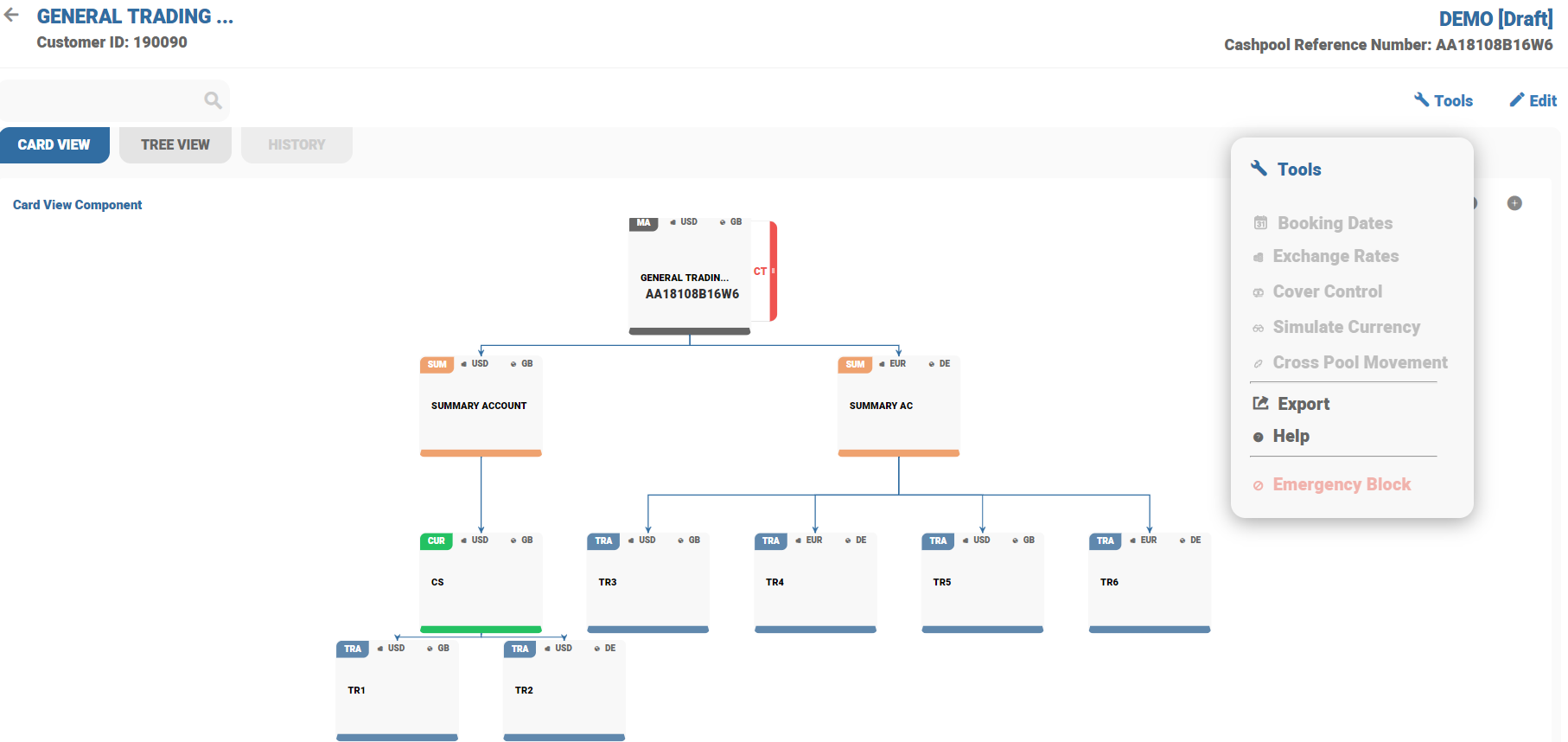

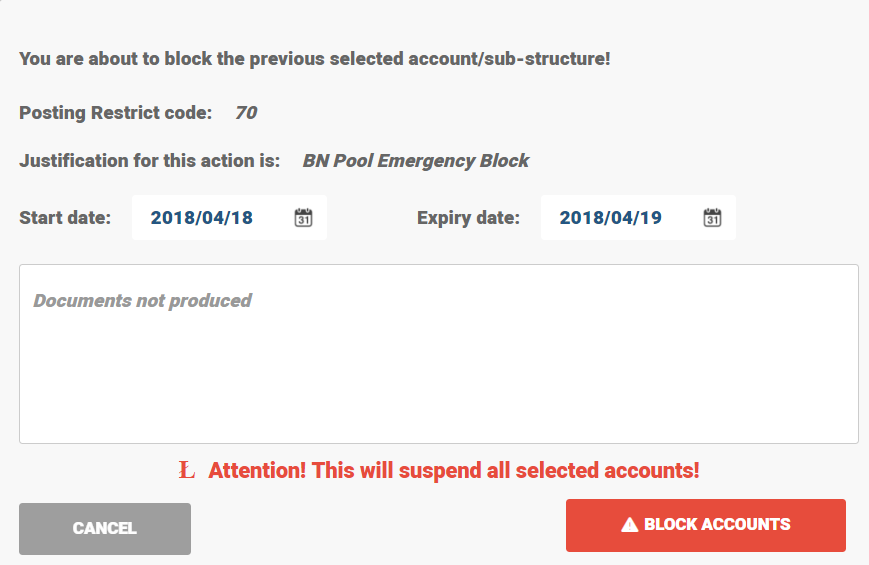

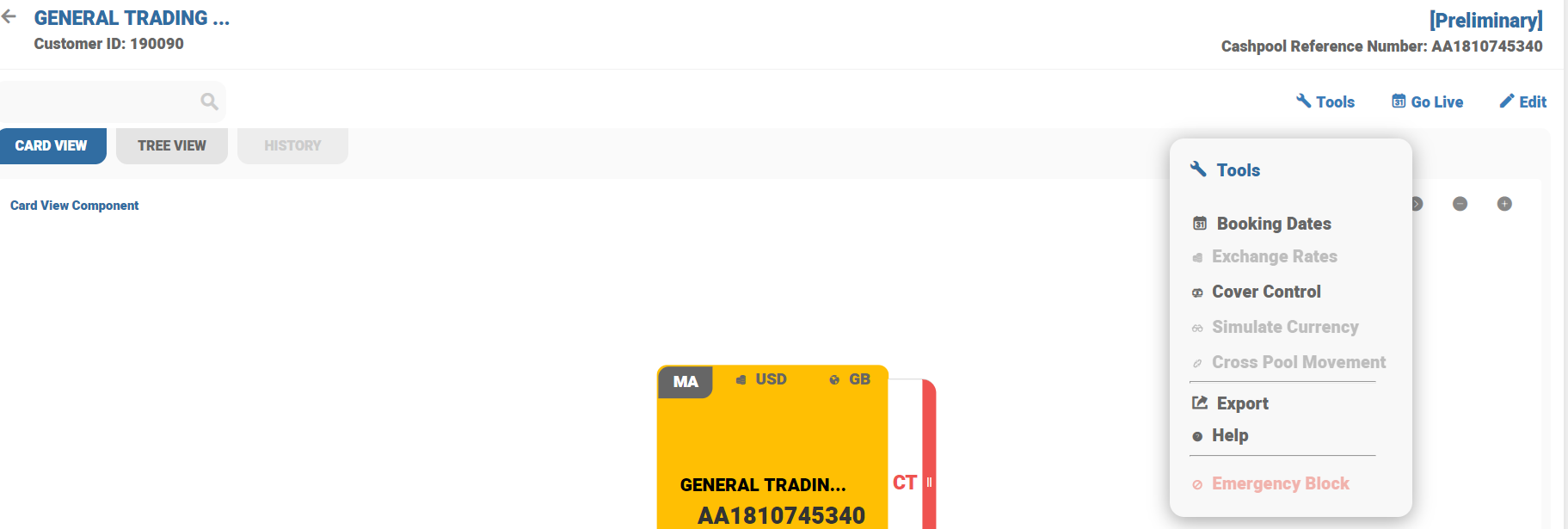

To block the entire BN structure, select Emergency Block from Tools menu. Select SUSPEND CASHPOOL to block all accounts, which are part of the respective bundle for transaction processing.

To block the BN pool,

Start date is a mandatory field.
Expiry date is an optional field.

Suspend can be done with future start date and expiry date. Once the Temenos Transact reaches the particular Start of Day (SOD), all the accounts which are part of that Bundle are blocked for Transactions. Fund transfer, standing order and sweeping scheduled (between the accounts in the bundle structure) are also suspended.

Once the BN pool structure is blocked, further maintenance on accounts is also suspended and the structure blocked message is displayed.

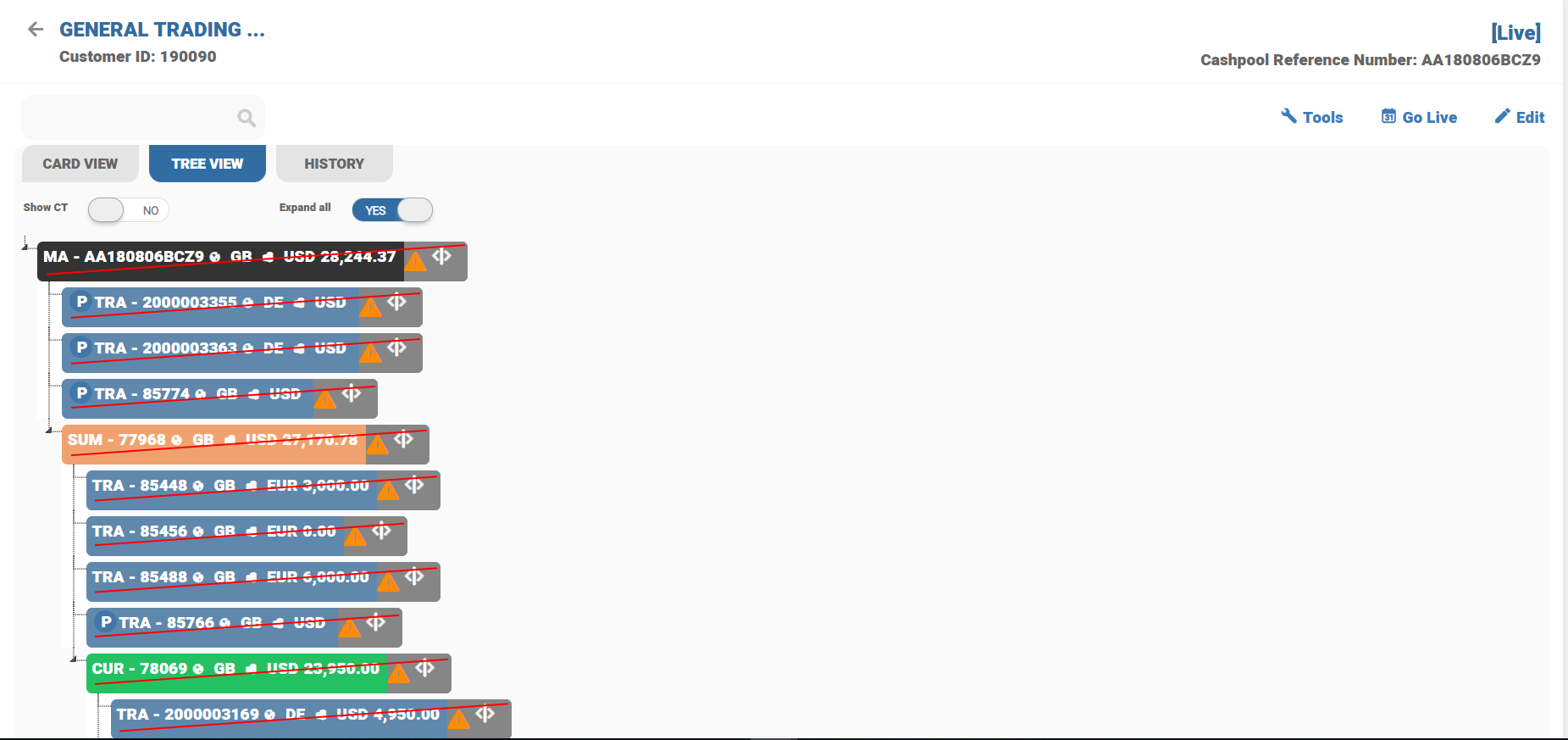

Blocking Sub-structure

To block the sub-structure, Select Emergency Block from Tools menu and click BLOCK ACCOUNT OR SUB- STRUCTURE. By selecting the parent accounts GUI blocks the child accounts linked under the parent account. In Temenos Transact child accounts are not blocked and only parent account is blocked. When the user initiates the transaction on TR accounts, Temenos Transact displays an error message and further transactions are not allowed. Enter date in Start date and Expiry date fields to block the sub-structure and a particular account. Temenos Transact allows to block the sub-structure or an account with future start date and end date.

When the user selects the parent account, the child accounts linked under the parent are selected automatically and in GUI, the status is shown as blocked.

Once the sub-structure and accounts are blocked, the status is updated on each account and the tool tip is shown on each card with the date on which the account is blocked. When the parent is blocked, the child account details are also updated as blocked in GUI.

Block details are updated in card and tree view.

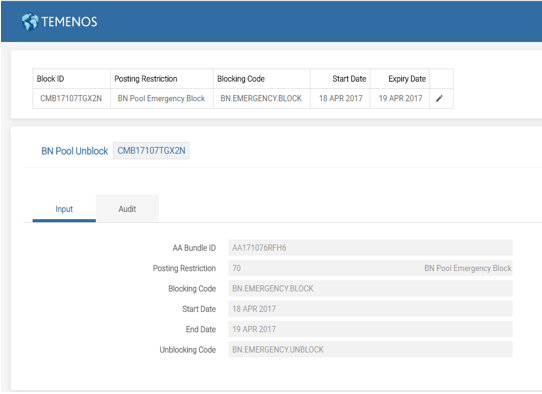

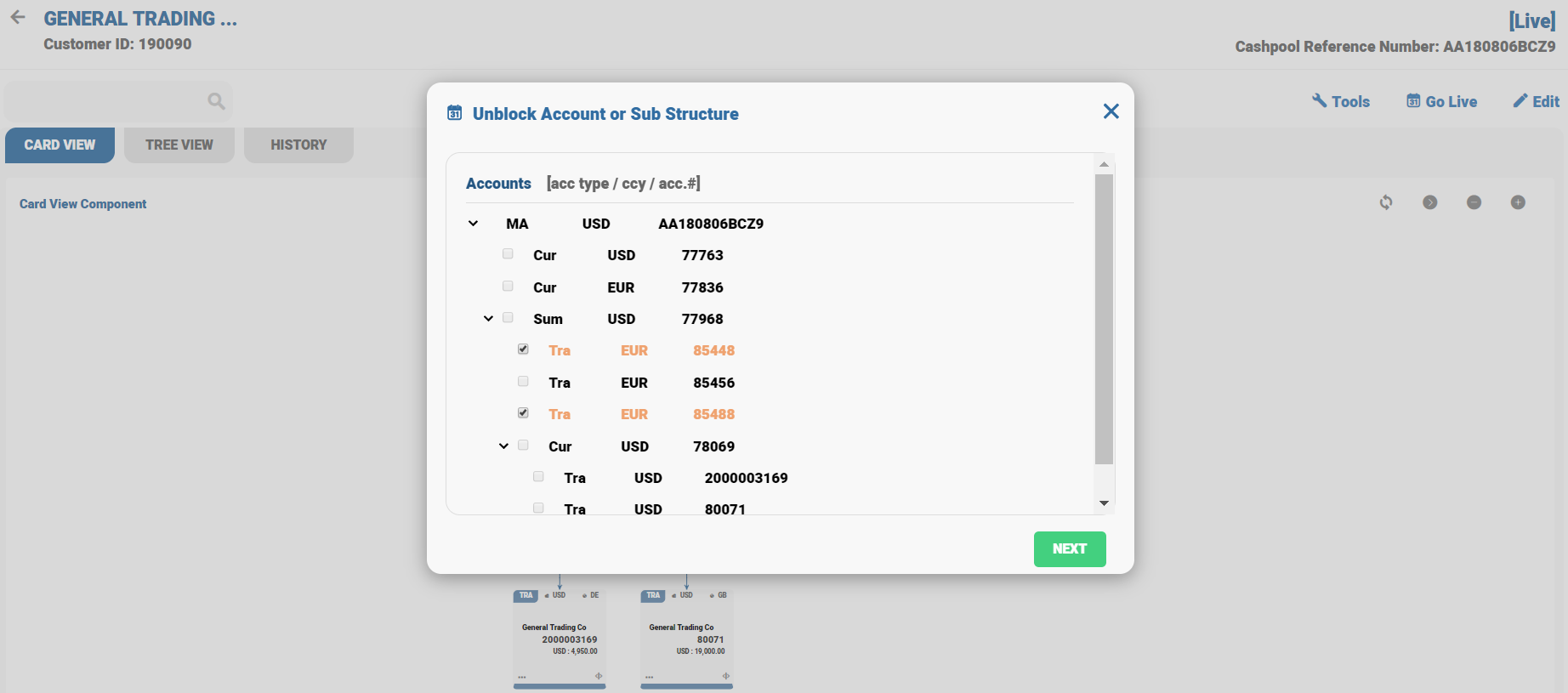

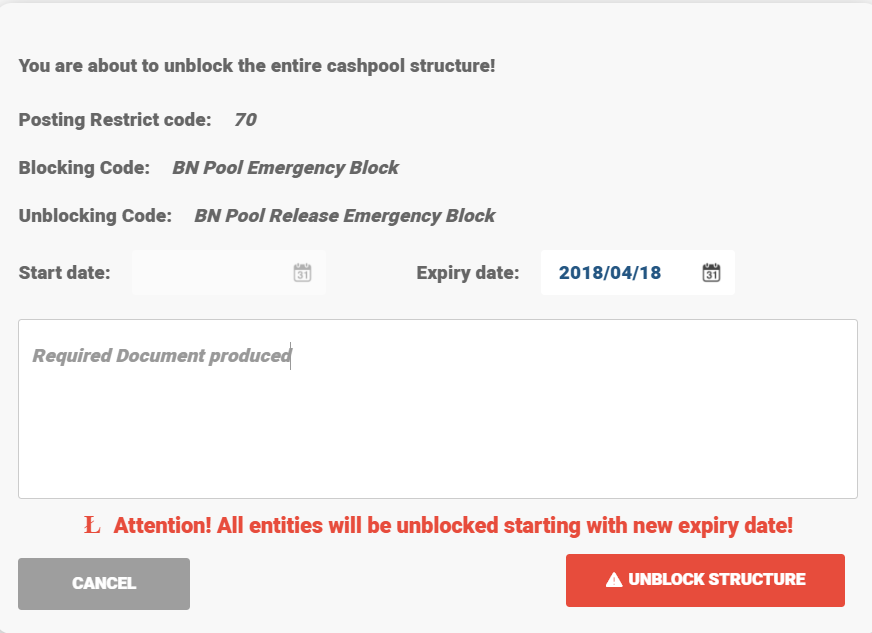

Unblocking sub-structure or Account

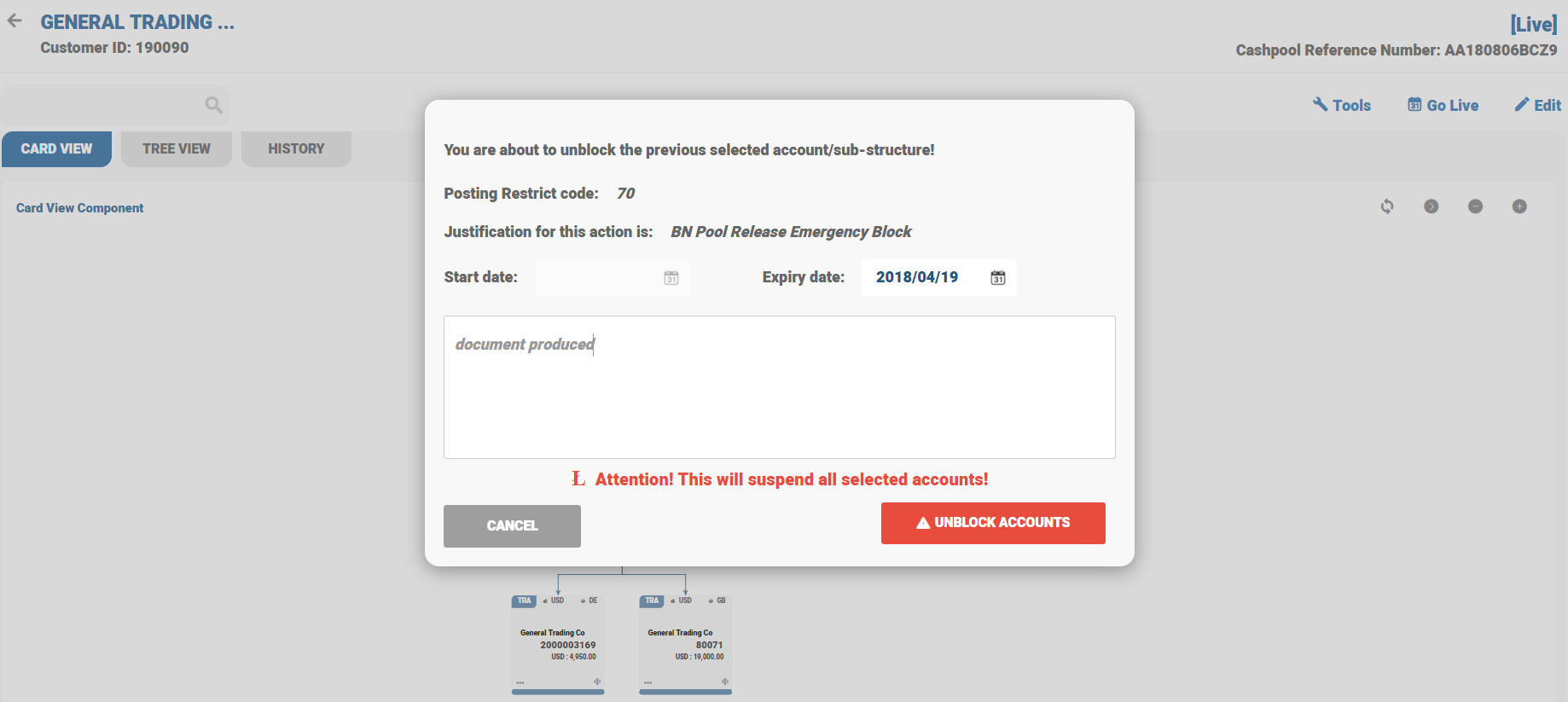

To unblock sub-structure or an account, select Unblock Account or Sub Structure. The blocked accounts are selected by default. The user can deselect an account when there is no need to unblock. Enter the Expiry date and click UNBLOCK ACCOUNTS to commit the changes in Temenos Transact. Expiry date can be current or future dated. When current date is used to unblock the account, it is unblocked immediately and Temenos Transact allows to initiate transactions.

BN pool GUI structure is refreshed with the changes in Temenos Transact and the blocked status is updated in GUI. Once the account is unblocked, the strike line on an account is removed immediately.

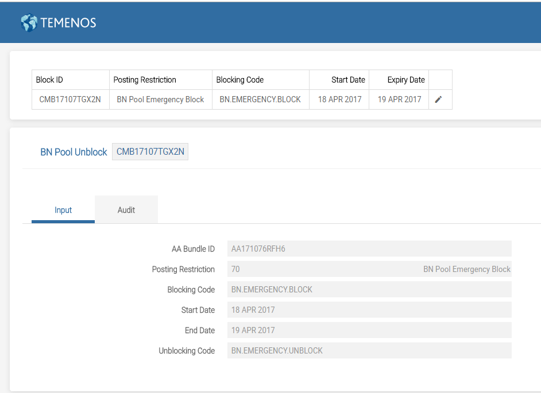

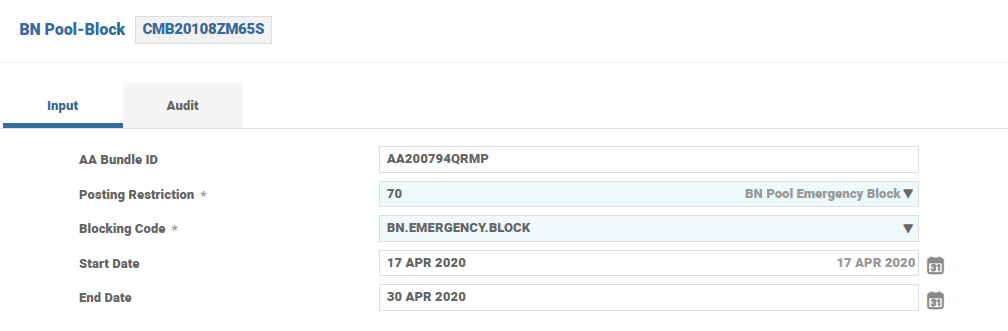

A CUSTOMER.MASS.BLOCK record is created to block the two CT accounts starting 18 April 2017, until 19 April 2017.

By giving the bundle arrangement ID and committing this record, the CT accounts are blocked and no transactions are posted against any transaction accounts linked to these currency top accounts.

The accounts are unblocked by giving the expiry date and an unblocking code.

A BN structure is created in the system, having a master account arrangement bundle ID as AA171075RFH6.

This bundle arrangement has two currency top accounts: AA17107RHMWK (EUR) and AA17107BB6H6 (USD).

Disconnecting and Closing a TR Account

A TR account can be disconnected from a BN pool and then it can be ultimately closed. In such cases, the balances, capitalised interest and charges are transferred to another account.

The general process to disconnect and close an account from the BN structure is as follows:

The user switches the TR account from off balance sheet to on balance sheet. This is done when user executes an activity to remove the TR account from the pool, a change product is also executed.

When closure is attempted, validation is done to confirm that link to the BN pool is removed. If not, a related error is displayed.

Click here to refer Arrangement Closure.

Reporting Pool Information

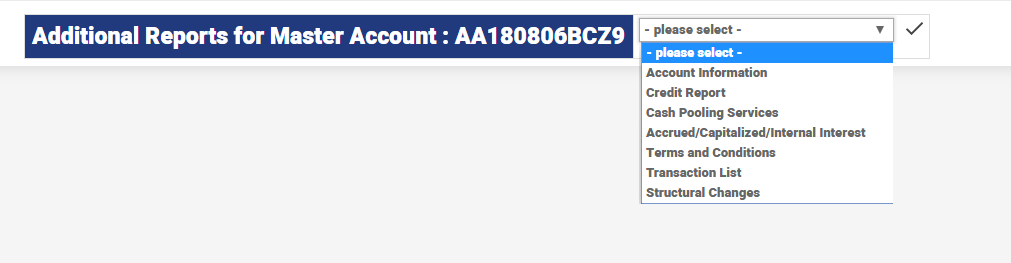

These reports are accessible through the Corporate Single Customer View (SCV) of corporate user menu under balance netting or in the role based home page for balance netting administrator.

The key reports are explained below.

Display Terms and Conditions Report

This report provides an overview on the latest terms and conditions registered in the account. The details include cover control, internal or external credit limits, payment restrictions and blocked amounts.

The details provided in this report are:

Account type
Account number
Currency
Date for latest modifications

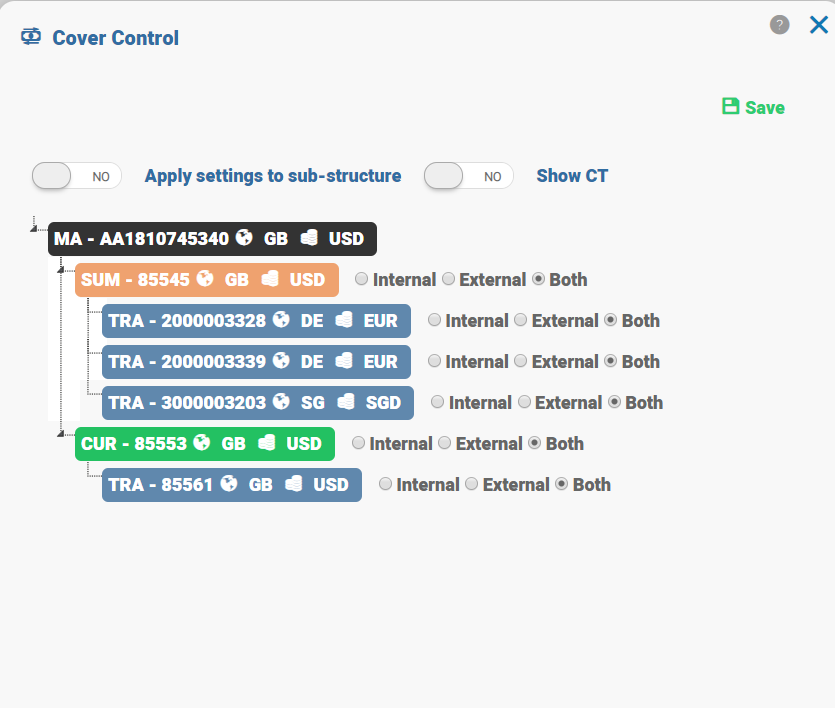

Cover control (on/off)
Capitalisation account
Frequency of capitalisation
Settlement account
Deposit interest (margin and base rate used)
Deposit fee (negative interest as a fee)
Lending interest
Lending fee
Unauthorised overdraft interest
Unauthorised overdraft fee
Penalty fee (in regards unauthorised overdraft)
Day method
Inheritance
Thresholds
Blocked amounts
Unable to check if conditions and terms seen are internal or external

When the user selects several accounts, the search can be limited to comprise only accounts in a certain currency.

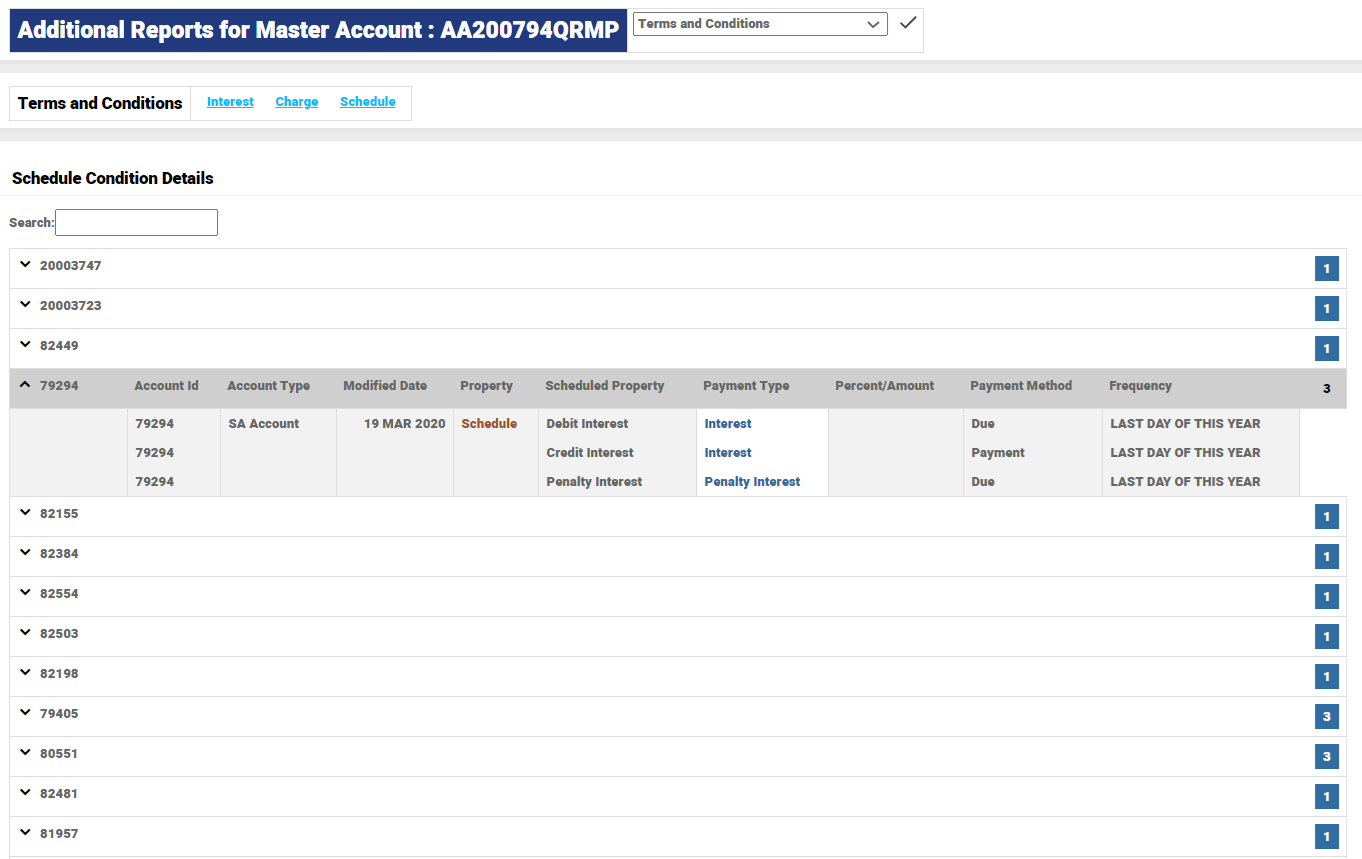

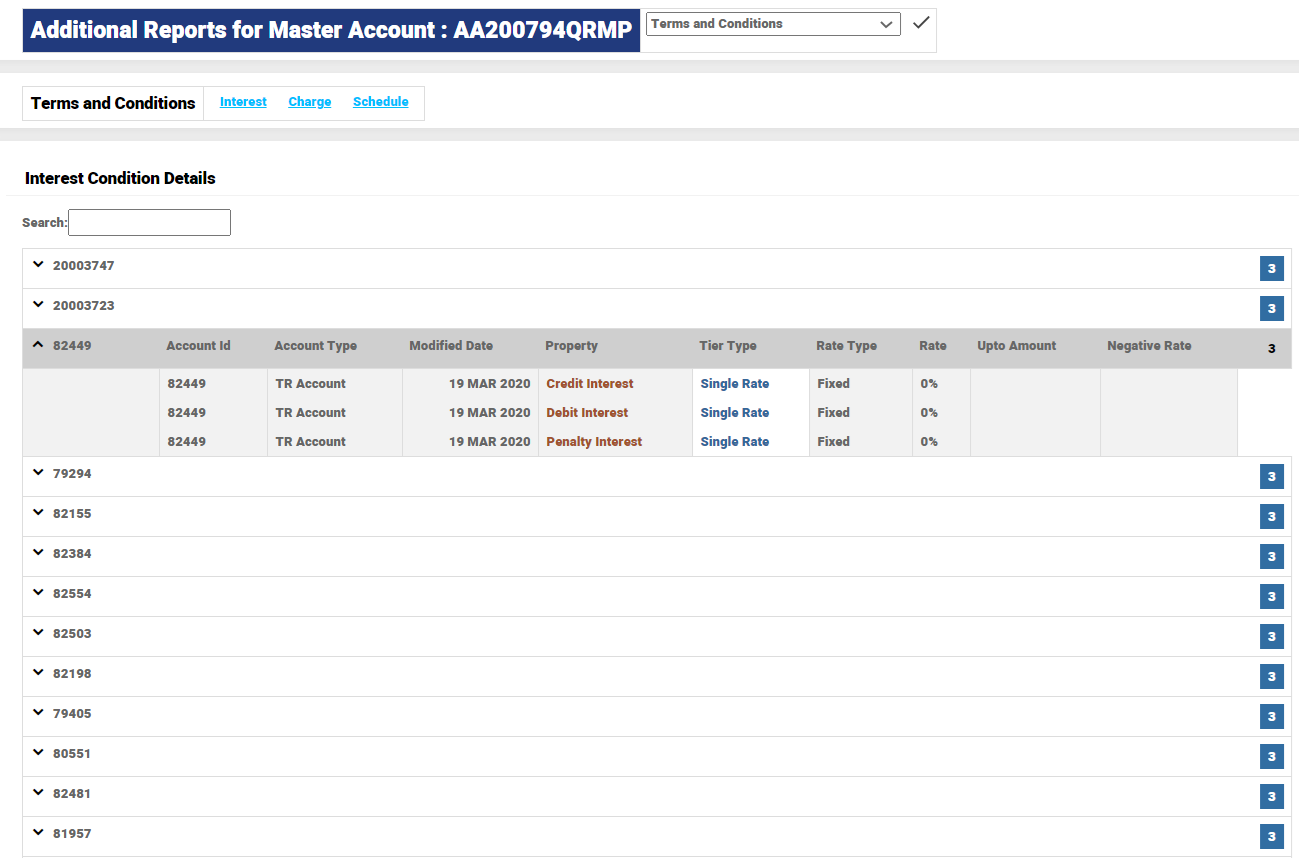

The below screenshot shows the terms and condition of master account - Interest:

The below screenshot shows the terms and condition of master account – Charge:

The below screenshot shows the terms and condition of master account – Schedule:

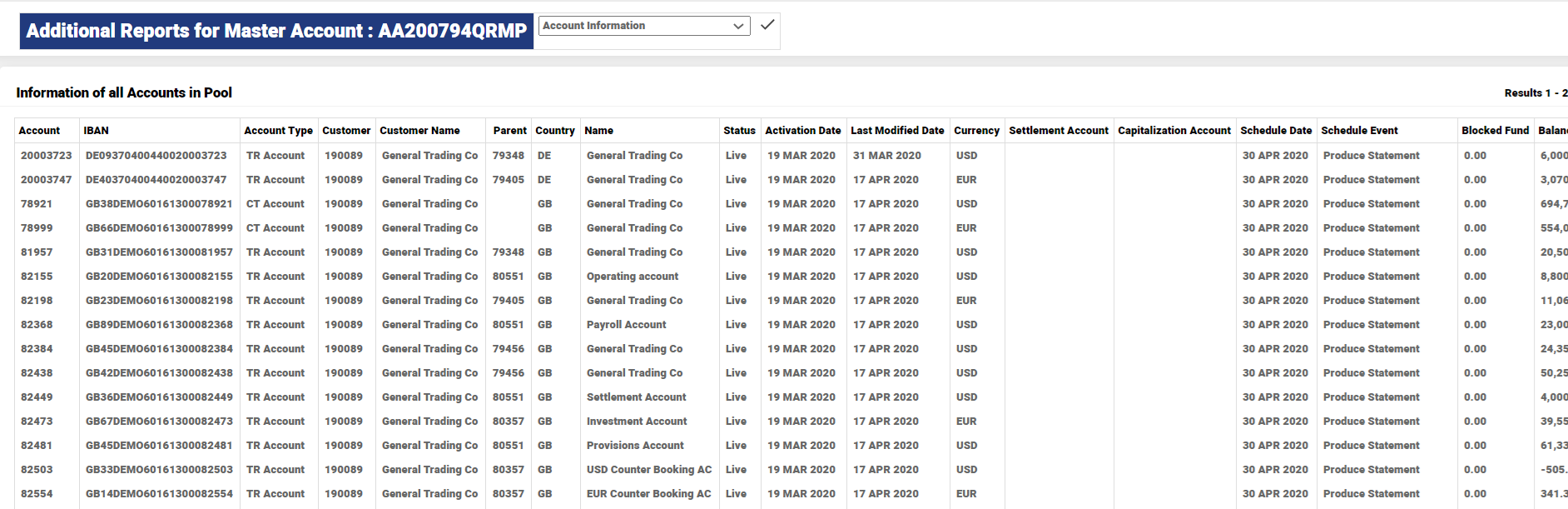

Account Information Report

The basic account information per current day for a BN cash pool account are shown below:

Account type
Activation date
Disconnected date
Date for latest modifications
Scheduled event(s) and the date for it
Account number both BBAN and IBAN format
Account country (that is, the country in which the account is located)
Currency
Balance reporting (which type, for example, account statements such as MT940, MT941)
Frequency of the statement (for transaction accounts only)
Parent account
Settlement account
Capitalisation account
Customer name
Customer ID

The closure date is also displayed for closed accounts.

The below screenshot shows that a search on master account displays the summary and currency summary account and transaction account in the hierarchy.

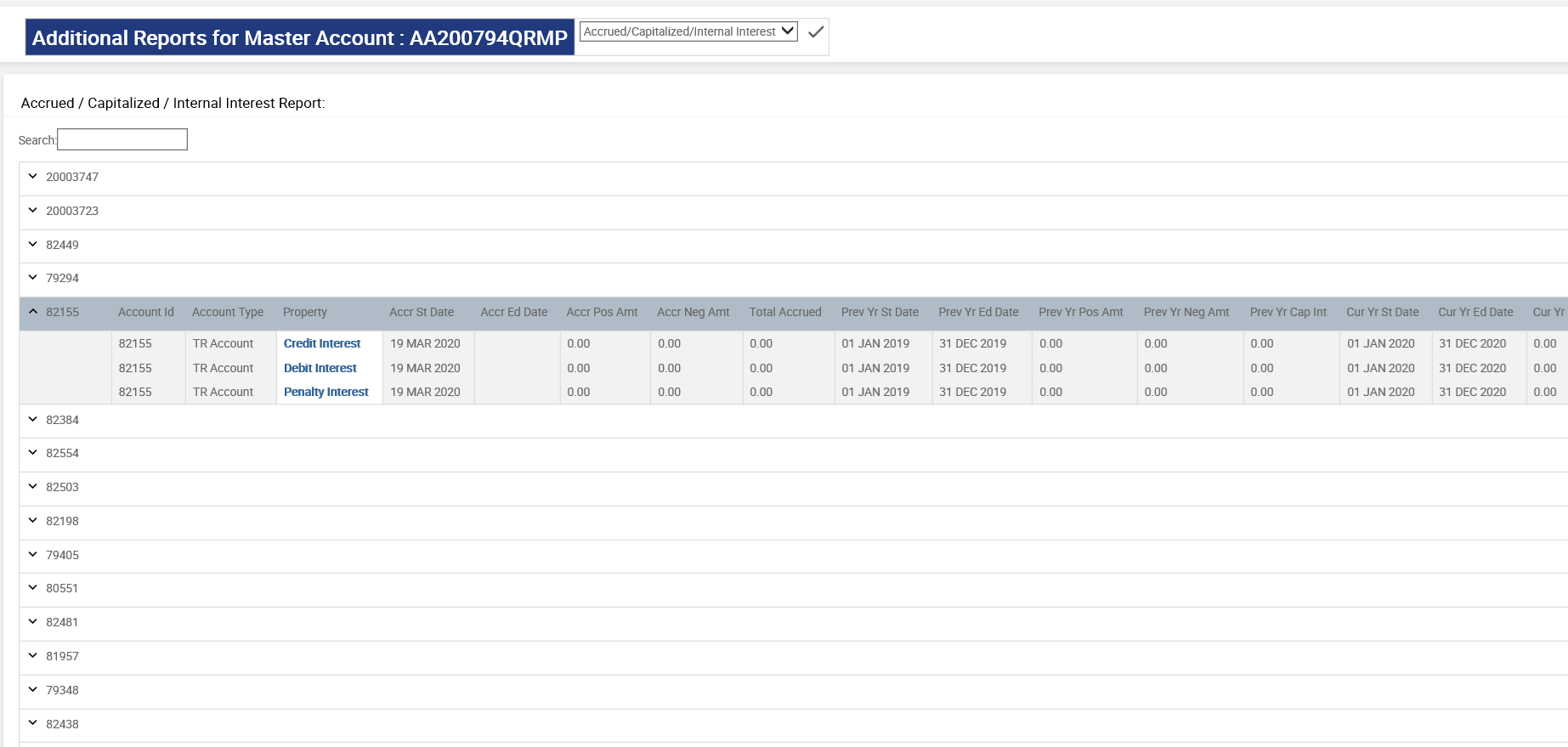

Accrued and Capitalised Interest and Internal Interest Report

The following details are found for a selected balance netting account:

Account number and account type
Interest type
Accrued interest
Capitalised interest current year
Capitalised interest previous year
Capitalised interest latest period
Date for latest capitalisation
Specification of accrued interest
Internal interest calculated but requested not to be capitalised for the current year
Internal interest calculated but requested not to be capitalised for the previous year
Internal interest calculated but requested not to be capitalised for the latest period

The below screenshot shows that a search on master account displays, the summary and currency summary account and transaction account in the hierarchy. The results can be exported to an excel.

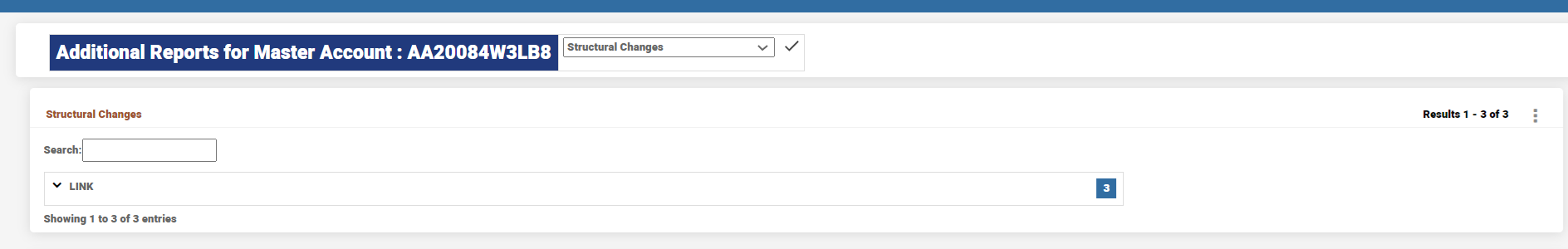

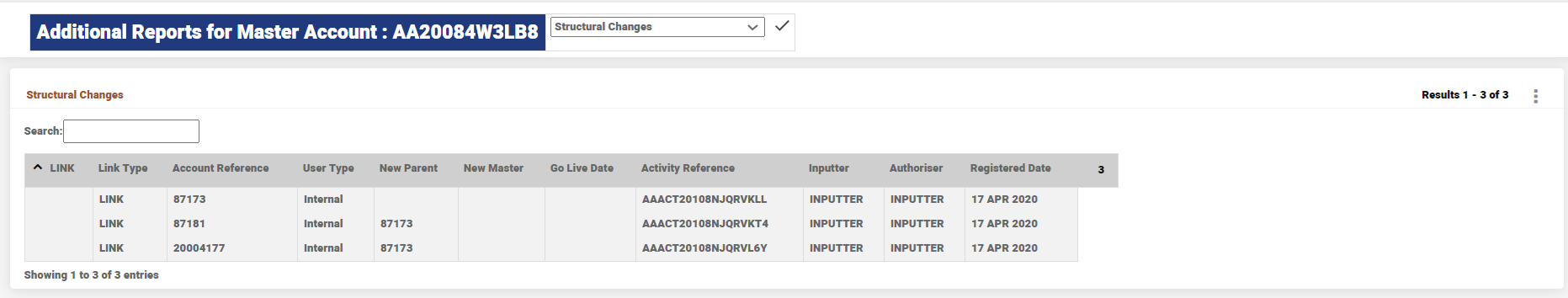

Structural Changes Report

The user can extract information on structural changes in a hierarchy at account closed and accounts moved level. The latter is within a structure or to another BN structure in a bank. Only live structures apply for structural changes (not draft or preliminary).

A below report on structural changes of all MA bundles in Temenos Transact are:

The list is sorted by MA bundle owner and not by the change.
Specify the account type taking part in the structural change
Specify the type of structural change (add, delete and move)
Specify if the structural change is conducted by a bank user or the customer
Specify the ID of the user who registered or entered the change
Account number and customer ID of account involved in the structural change
If account is moved, then the user should specify the parent account number to which the account is moved ( MA /SA/ CS)
The go live date of the structural change
The date the structural change was registered
Total number of structural changes (aggregate of added, closed and moved respectively) in each MA bundle. This can be used to simplify charging the customer of the structural changes.

A report on structural changes in a specific MA bundle:

State the MA bundle the structural changes are extracted from
Specify the account type taking part in the structural change
Account number and customer ID of account involved in the structural change
Specify the type of structural change (add, delete and move)
Specify if the structural change is conducted by a bank user or the customer
Specify the ID of the user who registered/entered the change
If account is moved, specify to which parent account number the account is moved ( MA /SA/ CS)
The go live date of the structural change
The date the structural change was registered
Total number of structural changes (aggregate of added, closed and moved respectively) in the specific MA bundle. This is done to simplify charging the customer of the structural changes.

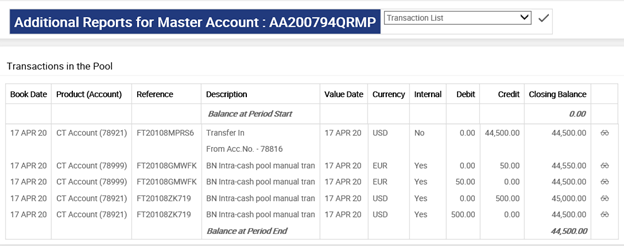

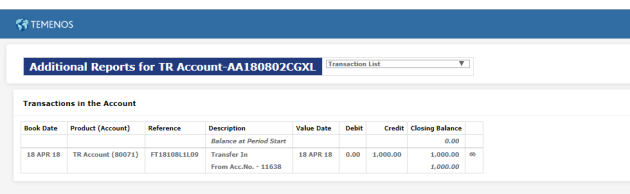

Transaction List Report

This report displays all transactions (booked during the given period of dates) and transfer details (such as, reference number) if attached to the payment.

If a TR is moved from one structure to another and the search date is before start date in new structure, the system displays the historical transactions only for searches on TR account.

Transactions can be filtered by:

Transactions within a certain currency
Customer internal transactions
Intra-cash pool transactions
Transactions between certain amounts
All debit and credit transactions

A search on master account displays the summary and currency summary account and transaction account in the hierarchy

Integrity Check

The Integrity Check Days attribute in Bundle Hierarchy Property Class is used to schedule an evaluation on ‘n’ number of days before an event is triggered in the bundle.

The first integrity check is run ‘n’ number of days before go live date for a pool in preliminary status.

This validation runs on continuous basis ‘n’ number of days before every event in the Bundle.

Integrity check days are calculated as ‘n’ working days.

Integrity check orchestrates the validations from MA level to the underlying accounts in the hierarchy.
The system triggers the Activity Class BUNDLE-INTEGRITY.CHECK-ARRANGEMENT to run the integrity check.
The user can trigger ad-hoc integrity checks by manually running the activity class for integrity check.
- The system automatically runs the pool orchestration service and generates integrity report.

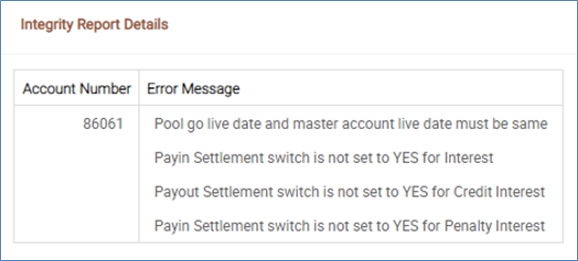

Validations are run on the bundle and results are recorded in AA.POOL.EXCEPTION.LOG.
- The record ID is Arrangement Number-INTEGRITY.REPORT.

It is possible to query on this table using the bundle (arrangement) number.
- This displays a single screen that contains all the validations related to all the accounts in the bundle, especially the failures

Drilldown to the individual accounts are available to take correction actions.

Validations based on Pool Events

The below are the validations based on pool events.

Always

A warning message giving the childless CS or SA or CT is closed automatically
Currency availability in weighted rate calculation (CT and SA)
- CT: When 4 CTs are in bundle but only three currencies are specified in custom type in Recipient CT Interest property, then exception message is raised for the missing custom type in that currency
- SA: Validates if all the currencies for which balance is maintained in ECB, are specified in the custom type

Currency market rate for currencies in secondary currency market
- Takes recipient’s secondary currency market, and scan through CURRENCY table in recipient CT company for each allowed currency of the bundle and see if there is a rate definition for this secondary currency market. An exception is recorded for the missing rate definition

Settlement account validation
- All properties, payment types have settlement accounts (payment schedule, activity charges and rule break charges)
- Settlement and counter booking belong to the same pool and currency, the status of those accounts for the date (this account’s go live date atleast) required
- Settlement account specified in bundle settlement
- Settlement instruction switched on (if not, warning message)
- Settlement and counter booking account should be available for the go live date of the CS or SA or TR
- During new offer of SA or CS, a new offer TR can be attached as a settlement account but it must be set to go live for the SA or CS Go live date

Close

During the closure of an account, the below validations are performed:

Negative balance in account
Sweeps setup in account
Accounts has a record already in AC block closure

Closure of entire pool structure (GUI)

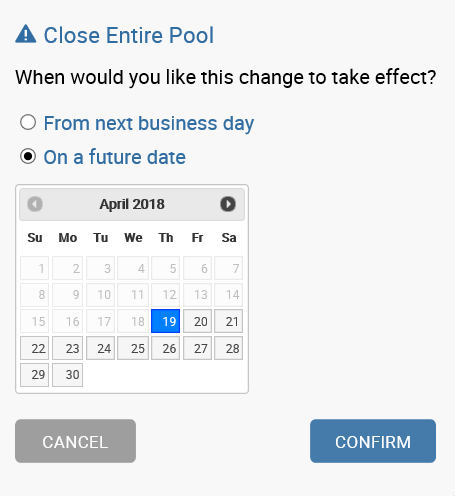

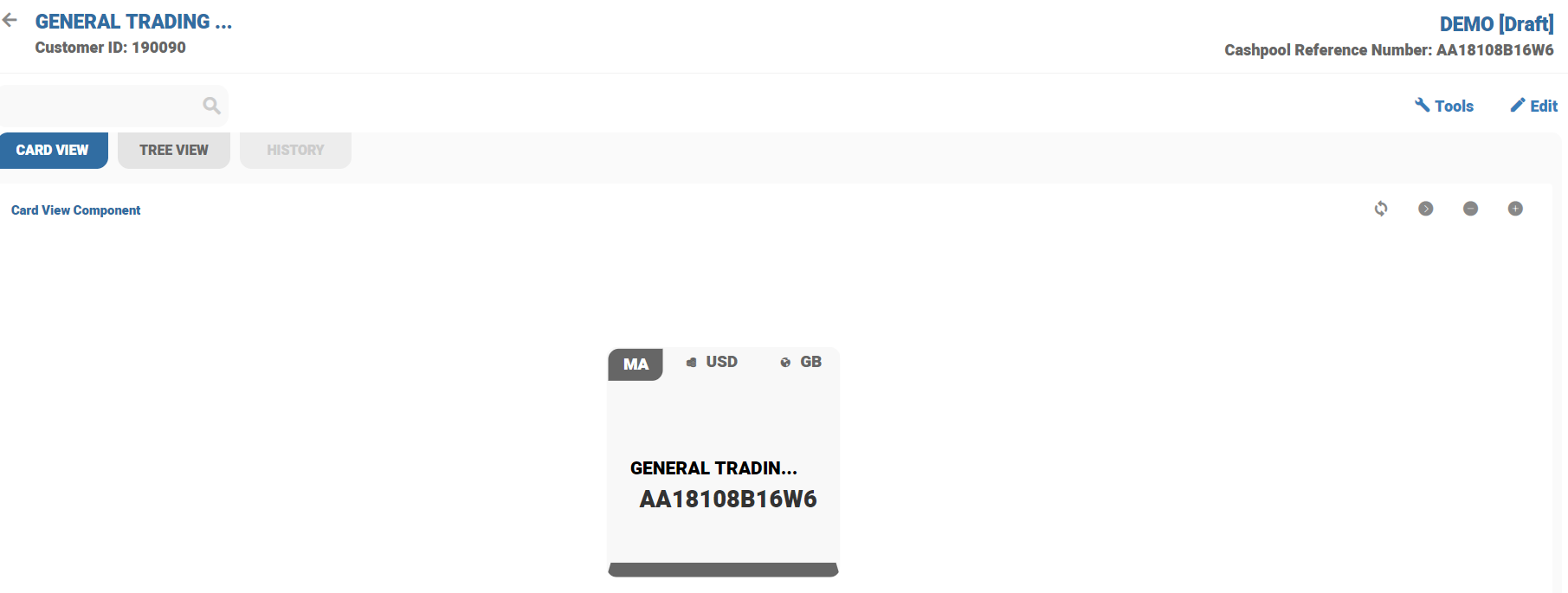

BN pool can be closed during Draft, Preliminary and Live status. To close the BN pool structure, right-click the 3 dots on Master card and select Close Entire Pool. Closure of live BN pool online is not possible. It is possible on the next business day or on a future date.

Closing the preliminary BN pool is done online and future scheduling is not possible. Master arrangement and SA, CS, TR or MTR accounts linked to the pool is closed online and Tree or Card view is updated accordingly. GUI displays a warning message to the user before closing the entire BN pool. When the user clicks on YES, GUI passes the information to Temenos Transact and the accounts are closed.

Arrangement Level Inheritance

When arrangement is part of a hierarchy of accounts such as, a cash pool hierarchy, the arrangement interest, charge and capitalisation frequencies need to be set (not at product level but at another arrangement higher up in the hierarchy). In a cash pool structure, this means setting conditions for inheritance at the (parent or grandparent) or (pool or currency specific concentration level).This helps in easy maintenance of these conditions in a single place instead of having to deal with the individual arrangements at the lowest level, which also happen to be the normal transaction accounts.

Products

Ecosystem

Technology

Other Product documentation

Working with Hybrid pool

Generating IBAN

Setting up Balance Sweeping

Block Entire Cashpool structure (GUI)

Closure of entire pool structure (GUI)
