Azure EventHub Configuration for Holdings MS

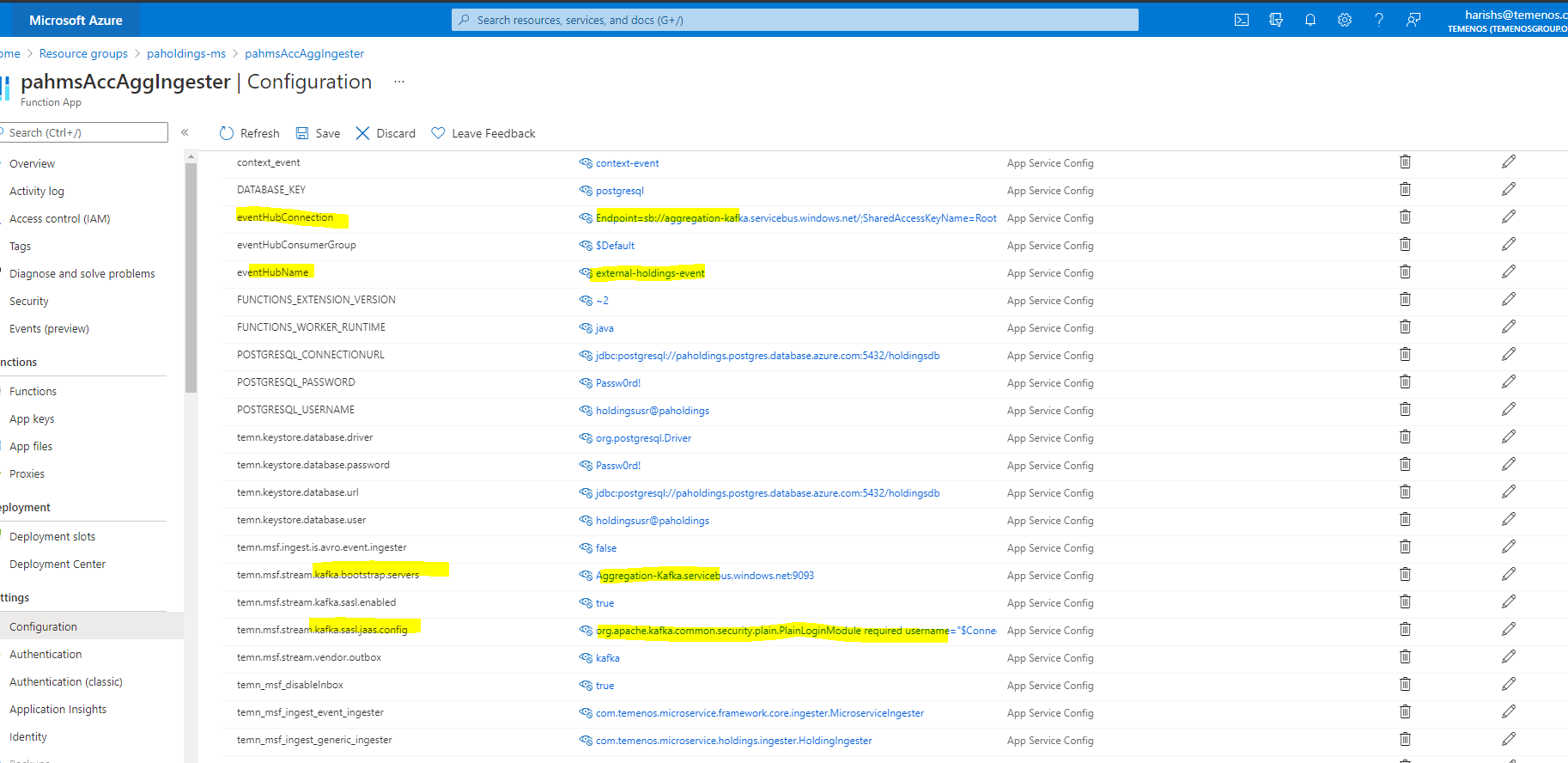

Once HMS Azure is deployed under a particular Resource Group, you can check the configurations of the AccAgg ingester of AMS functionApp. This is done as follows:

Method 1:

If the Account Aggregation EventHub is already created & working, then change the following configuration in install-mongo.bat / install-mongo.sh / install-postgresql.bat / install-postgresql.sh as follows:

(refer it from the account aggregation ms install.bat/install.sh scripts)

Here,

1. ACCAGG_EVENTHUB_RESOURCE_GROUP_NAME - is the Resource Group Name where Account Aggregation EventHub is created.
2. ACCAGG_EVENT_HUB_NAME_SPACE - is the Event Hubs Name Space.
3. ACCAGG_EVENT_HUB - is the Event Hub running in Event Hubs.

Method 2:

If the Account Aggregation EventHub is not present in Azure Environment then create using the following steps:

In command prompt execute the following commands:

1. call az group create --name AccountAggregationGroup --location northeurope

here AccountAggregationGroup is the Resource Group Name

1. az eventhubs namespace create --name Aggregation-Kafka --resource-group AccountAggregationGroup -l northeurope --enable-kafka true

here AccountAggregationGroup is the Resource Group Name and Aggregation-Kafka is the event hub name

1. az eventhubs eventhub create --name context-event --resource-group AccountAggregationGroup --namespace-name Aggregation-Kafka
2. az eventhubs eventhub create --name external-holdings-event --resource-group AccountAggregationGroup --namespace-name Aggregation-Kafka
3. az eventhubs eventhub create --name external-account-event --resource-group AccountAggregationGroup --namespace-name Aggregation-Kafka

here AccountAggregationGroup is the Resource Group Name and Aggregation-Kafka is the event hub name

In portal azure it will be as follows:

Once Created, configure the same in install.bat / install.sh as follows:

Here,

1. ACCAGG_EVENTHUB_RESOURCE_GROUP_NAME - is the Resource Group Name where Account Aggregation EventHub is created.
2. ACCAGG_EVENT_HUB_NAME_SPACE - is the Event Hubs Name Space.
3. ACCAGG_EVENT_HUB - is the Event Hub running in Event Hubs.

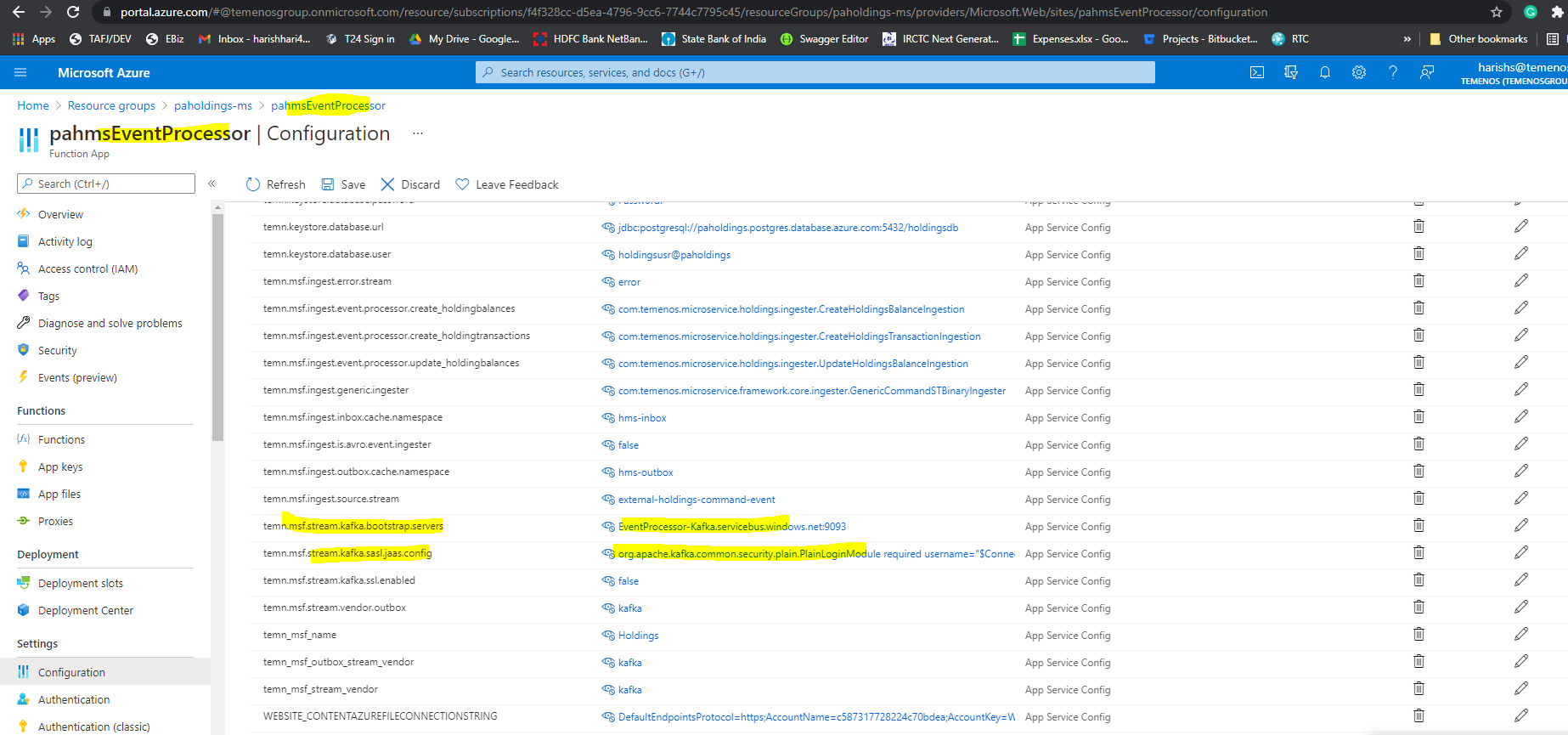

Once HMS Azure is deployed under a particular Resource Group, you can check the configurations of the Event processor ingester of AMS functionApp. This is done as follows:

Method 1:

If the EventProcessor EventHub is already created & working, then change the following configuration in install-mongo.bat / install-mongo.sh / install-postgresql.bat / install-postgresql.sh as follows:

Here,

1. EPEVENTHUB_RESOURCE_GROUP_NAME - is the Resource Group Name where Event Processor EventHub is created.
2. EPEVENT_HUB_NAME_SPACE - is the Event Hubs Name Space.
3. EPEVENT_HUB - is the Event Hub running in Event Hubs.

Method 2:

If the Event Processor EventHub is not present in Azure Environment then create using the following steps,

In command prompt execute the following commands:

• call az group create --name EventProcessorGroup --location northeurope
  here EventProcessorGroup is the Resource Group Name
• az eventhubs namespace create --name EventProcessor-Kafka --resource-group EventProcessorGroup -l northeurope --enable-kafka true
  here EventProcessorGroup is the Resource Group Name and EventProcessor-Kafka is the EventHub name
• az eventhubs eventhub create --name external-holdings-command-event --resource-group EventProcessorGroup --namespace-name EventProcessor-Kafka

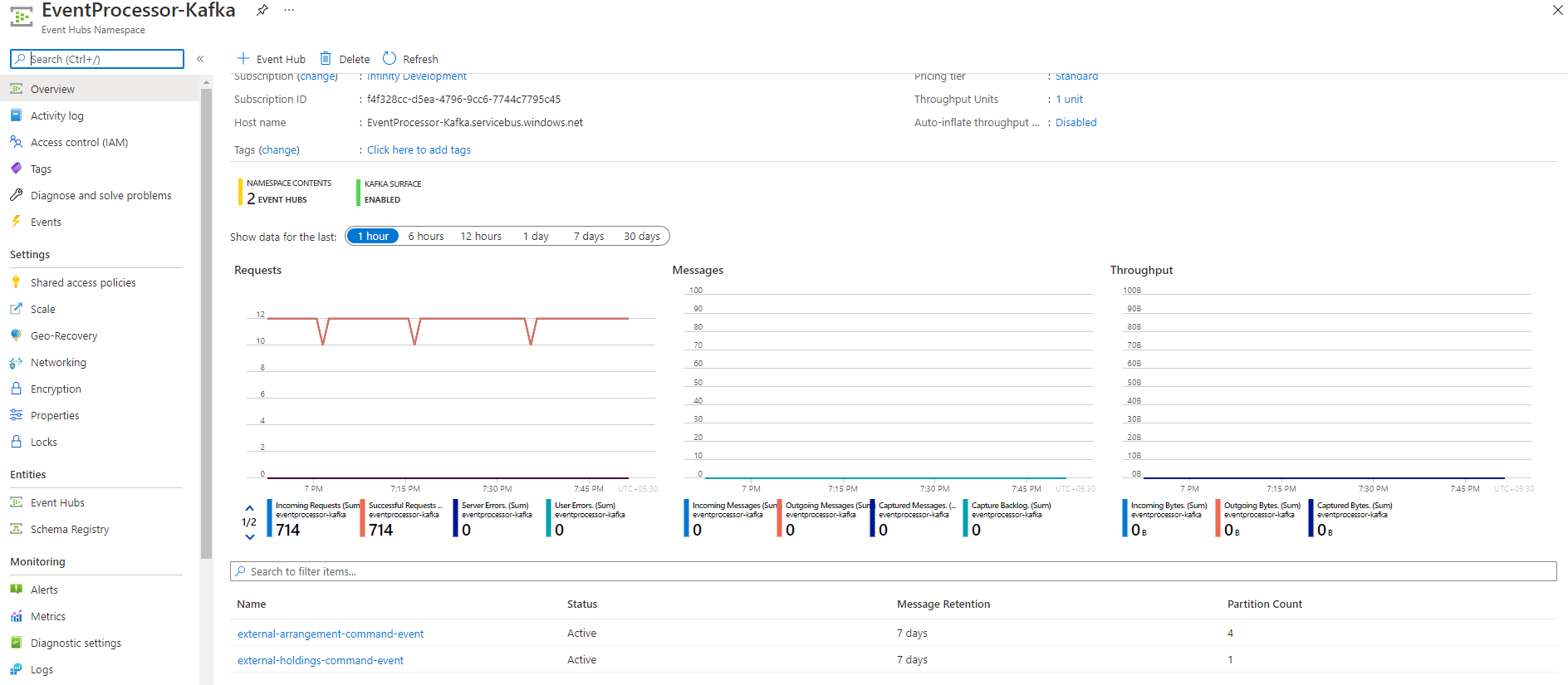

  here EventProcessor-Kafka is the EventHub Name and external-arrangement-command-event are the events name. In portal azure it will be as follows:

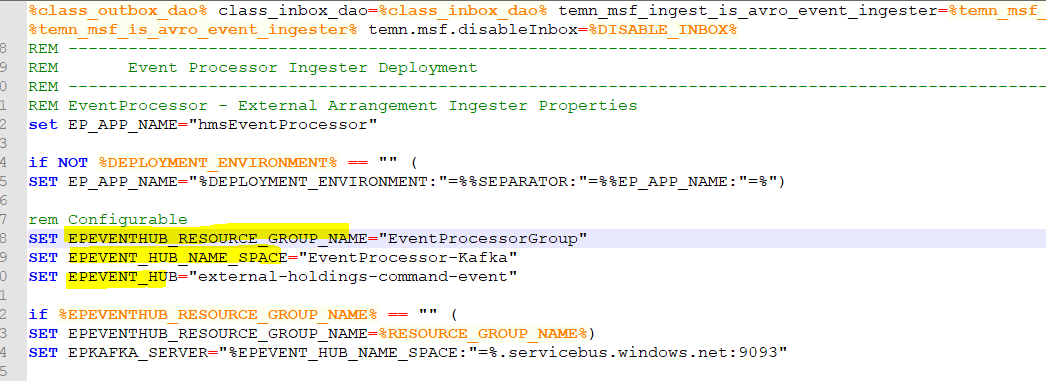

Once Created, configure the same in install.bat / install.sh as follows:

1. EPEVENTHUB_RESOURCE_GROUP_NAME - is the Resource Group Name where Event Processor EventHub is created.
2. EPEVENT_HUB_NAME_SPACE - is the Event Hubs Name Space.
3. EPEVENT_HUB - is the Event Hub running in Event Hubs.

Once HMS Azure is deployed under a particular Resource Group, you can check the configurations of the t24 ingester of AMS functionApp. This is done as follows:

Method 1:

If the Transact EventHub is already created & working, then change the following configuration ininstall-mongo.bat / install-mongo.sh / install-postgresql.bat / install-postgresql.sh as follows:

Here,

1. T24EVENTHUB_RESOURCE_GROUP_NAME - is the Resource Group Name where Transact EventHub is created.
2. T24EVENT_HUB_NAME_SPACE - is the Event Hubs Name Space.
3. T24EVENT_HUB - is the Event Hub running in Event Hubs.
4. REGISTRY_URL - is the URL where localhost/subjects for DES is running.

Method 2:

If the Transact EventHub is not present in Azure Environment then create using the following steps,

In command prompt execute the following commands:

1. call az group create --name TransactResourceGroup --location northeurope
   here TransactResourceGroup is the Resource Group Name
2. az eventhubs namespace create --name transactdessur --resource-group TransactResourceGroup -l northeurope --enable-kafka true
3. az eventhubs namespace create --name transactdessurschema --resource-group TransactResourceGroup -l northeurope --enable-kafka true
   here TransactResourceGroup is the Resource Group Name and transactdessur, transactdessurschema are the eventhub name
4. az eventhubs eventhub create --name pull-event --resource-group TransactResourceGroup --namespace-name transactdessur
5. az eventhubs eventhub create --name pull-event-multi-part --resource-group TransactResourceGroup --namespace-name transactdessur
6. az eventhubs eventhub create --name pull-metadata --resource-group TransactResourceGroup --namespace-name transactdessur
7. az eventhubs eventhub create --name table-update --resource-group TransactResourceGroup --namespace-name transactdessur
8. az eventhubs eventhub create --name if-raw --resource-group TransactResourceGroup --namespace-name transactdessur
9. az eventhubs eventhub create --name if --resource-group TransactResourceGroup --namespace-name transactdessur
10. az eventhubs eventhub create --name eot --resource-group TransactResourceGroup --namespace-name transactdessur
11. az eventhubs eventhub create --name error --resource-group TransactResourceGroup --namespace-name transactdessur
12. az eventhubs eventhub create --name multi-part --resource-group TransactResourceGroup --namespace-name transactdessur
13. az eventhubs eventhub create --name assembled-event --resource-group TransactResourceGroup --namespace-name transactdessur
14. az eventhubs eventhub create --name des-schema --resource-group TransactResourceGroup --namespace-name transactdessurschema
15. az eventhubs eventhub create --name des-install --resource-group TransactResourceGroup --namespace-name transactdessurschema
    here TransactResourceGroup is the Resource Group Name and transactdessur, transactdessurschema are the eventhub name

In portal azure it will be as follows:

Once Created, configure the same in install.bat / install.sh as follows:

1. T24EVENTHUB_RESOURCE_GROUP_NAME - is the Resource Group Name where Transact EventHub is created.
2. T24EVENT_HUB_NAME_SPACE - is the Event Hubs Name Space.
3. T24EVENT_HUB - is the Event Hub running in Event Hubs.
4. REGISTRY_URL - is the URL where localhost/subjects for DES is running.
