Configuration
For successful flow of events, the Microservices such as Party, Event Store, and Adaptor must use the same Kafka.
For successful routing, you must configure each event independently in the Generic Config Microservice.
Adapter MS Configuration
In the case of Docker deployment, the following configurations are carried out in ms-adapterservice.yml:
- Configure the Adapter MS property named TEMN_MSF_ADAPTER_CONFIG_CLASSPATH to false.
- To retrieve the configurations from generic config MS, set the proper IP or base path in the property named temn.config.service.base.path.
- To listen to ms-party-event-topic, ingester business must be configured.
ms-adapterservice.yml
TEMN_MSF_ADAPTER_CONFIG_CLASSPATH: "false"
ms-adapterservice.yml
temn.config.service.base.path: http://localhost:8095/ms-genericconfig-api/api/v1.0.0/
temn.config.service.resource.path: system/configurationGroups/{groupId}/configuration/{configName}
ms-adapterservice.yml
temn.msf.ingest.source.stream: ms-adapterservice-event-topic,ms-party-event-topic
Generic Config MS Configuration
- Configure XML File to route the events to Fabric endpoint, and then add the endpoint to the fabric service (Refer line number 20)
Router XML
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:camel="http://camel.apache.org/schema/spring"
xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://camel.apache.org/schema/spring http://camel.apache.org/schema/spring/camel-spring.xsd">
<camel:sslContextParameters id="mySslContextParameters" >
<camel:keyManagers keyPassword="client">
<camel:keyStore password="client" resource="C:\mtsl\client.keystore"/>
</camel:keyManagers>
<camel:secureSocketProtocols>
<camel:secureSocketProtocol>TLSv1.2</camel:secureSocketProtocol>
</camel:secureSocketProtocols>
</camel:sslContextParameters>
<camelContext xmlns="http://camel.apache.org/schema/spring">
<route id="direct.postPamApi.toUrl">
<from uri="direct:invokeFabricService"/>
<setHeader headerName="CamelHttpMethod">
<constant>POST</constant>
</setHeader>
<toD uri="https://dbxlendingqa.konycloud.com/services/dbpDBX/createDbxProspect"/>
</route>
</camelContext>
<bean id="mockResponder" class="com.temenos.microservice.mediator.engine.MockResponderUtil"/>
<bean id="messageProcessor" class="com.temenos.microservice.mediator.engine.MessageProcessor"/>
<bean id="JSONAggregator" class="com.temenos.microservice.mediator.engine.JSONAggregator"/>
</beans>
- Encode the above XML to base 64 as below.Base 64 Encoded Route XML
PD94bWwgdmVyc2lvbj0iMS4wIiBlbmNvZGluZz0iVVRGLTgiPz4KPGJlYW5zIHhtbG5zPSJodHRwOi8vd3d3LnNwcmluZ2ZyYW1ld29yay5vcmcvc2NoZW1hL2JlYW5zIgogICAgICAgeG1sbnM6eHNpPSJodHRwOi8vd3d3LnczLm9yZy8yMDAxL1hNTFNjaGVtYS1pbnN0YW5jZSIKICAgICAgIHhtbG5zOmNhbWVsPSJodHRwOi8vY2FtZWwuYXBhY2hlLm9yZy9zY2hlbWEvc3ByaW5nIgogICAgICAgeHNpOnNjaGVtYUxvY2F0aW9uPSIgICAgICAgIGh0dHA6Ly93d3cuc3ByaW5nZnJhbWV3b3JrLm9yZy9zY2hlbWEvYmVhbnMgICAgICAgICAgICBodHRwOi8vd3d3LnNwcmluZ2ZyYW1ld29yay5vcmcvc2NoZW1hL2JlYW5zL3NwcmluZy1iZWFucy54c2QgICAgICAgIGh0dHA6Ly9jYW1lbC5hcGFjaGUub3JnL3NjaGVtYS9zcHJpbmcgICAgICAgIGh0dHA6Ly9jYW1lbC5hcGFjaGUub3JnL3NjaGVtYS9zcHJpbmcvY2FtZWwtc3ByaW5nLnhzZCI+CiAgICA8Y2FtZWw6c3NsQ29udGV4dFBhcmFtZXRlcnMgaWQ9Im15U3NsQ29udGV4dFBhcmFtZXRlcnMiID4KICAgICAgICA8Y2FtZWw6a2V5TWFuYWdlcnMga2V5UGFzc3dvcmQ9ImNsaWVudCI+CiAgICAgICAgICAgIDxjYW1lbDprZXlTdG9yZSBwYXNzd29yZD0iY2xpZW50IiByZXNvdXJjZT0iQzpcbXRzbFxjbGllbnQua2V5c3RvcmUiLz4KICAgICAgICA8L2NhbWVsOmtleU1hbmFnZXJzPgogICAgICAgIDxjYW1lbDpzZWN1cmVTb2NrZXRQcm90b2NvbHM+CiAgICAgICAgICAgIDxjYW1lbDpzZWN1cmVTb2NrZXRQcm90b2NvbD5UTFN2MS4yPC9jYW1lbDpzZWN1cmVTb2NrZXRQcm90b2NvbD4KICAgICAgICA8L2NhbWVsOnNlY3VyZVNvY2tldFByb3RvY29scz4KICAgIDwvY2FtZWw6c3NsQ29udGV4dFBhcmFtZXRlcnM+CiAgIDxjYW1lbENvbnRleHQgeG1sbnM9Imh0dHA6Ly9jYW1lbC5hcGFjaGUub3JnL3NjaGVtYS9zcHJpbmciPgogICAgICAgPHJvdXRlIGlkPSJkaXJlY3QucG9zdFBhbUFwaS50b1VybCI+CiAgICAgICAgICAgPGZyb20gdXJpPSJkaXJlY3Q6aW52b2tlRmFicmljU2VydmljZSIvPgogICAgICAgICAgIDxzZXRIZWFkZXIgaGVhZGVyTmFtZT0iQ2FtZWxIdHRwTWV0aG9kIj4KICAgICAgICAgICAgICAgIDxjb25zdGFudD5QT1NUPC9jb25zdGFudD4KICAgICAgICAgICA8L3NldEhlYWRlcj4KCQkJPHRvRCB1cmk9Imh0dHBzOi8vZGJ4bGVuZGluZ3FhLmtvbnljbG91ZC5jb20vc2VydmljZXMvZGJwREJYL2NyZWF0ZURieFByb3NwZWN0Ii8+CiAgICAgICA8L3JvdXRlPgogICAgPC9jYW1lbENvbnRleHQ+CiAgICA8YmVhbiBpZD0ibW9ja1Jlc3BvbmRlciIgY2xhc3M9ImNvbS50ZW1lbm9zLm1pY3Jvc2VydmljZS5tZWRpYXRvci5lbmdpbmUuTW9ja1Jlc3BvbmRlclV0aWwiLz4KICAgIDxiZWFuIGlkPSJtZXNzYWdlUHJvY2Vzc29yIiBjbGFzcz0iY29tLnRlbWVub3MubWljcm9zZXJ2aWNlLm1lZGlhdG9yLmVuZ2luZS5NZXNzYWdlUHJvY2Vzc29yIi8+CiAgICA8YmVhbiBpZD0iSlNPTkFnZ3JlZ2F0b3IiIGNsYXNzPSJjb20udGVtZW5vcy5taWNyb3NlcnZpY2UubWVkaWF0b3IuZW5naW5lLkpTT05BZ2dyZWdhdG9yIi8+CjwvYmVhbnM+
- Add the above base 64 encoded XML data to the Adapter Framework Config file format.Adapter Configuration
process.routeId=direct:invokeFabricService process.route=PartyApplicationContext PartyApplicationContext=PD94bWwgdmVyc2lvbj0iMS4wIiBlbmNvZGluZz0iVVRGLTgiPz4KPGJlYW5zIHhtbG5zPSJodHRwOi8vd3d3LnNwcmluZ2ZyYW1ld29yay5vcmcvc2NoZW1hL2JlYW5zIgogICAgICAgeG1sbnM6eHNpPSJodHRwOi8vd3d3LnczLm9yZy8yMDAxL1hNTFNjaGVtYS1pbnN0YW5jZSIKICAgICAgIHhtbG5zOmNhbWVsPSJodHRwOi8vY2FtZWwuYXBhY2hlLm9yZy9zY2hlbWEvc3ByaW5nIgogICAgICAgeHNpOnNjaGVtYUxvY2F0aW9uPSIgICAgICAgIGh0dHA6Ly93d3cuc3ByaW5nZnJhbWV3b3JrLm9yZy9zY2hlbWEvYmVhbnMgICAgICAgICAgICBodHRwOi8vd3d3LnNwcmluZ2ZyYW1ld29yay5vcmcvc2NoZW1hL2JlYW5zL3NwcmluZy1iZWFucy54c2QgICAgICAgIGh0dHA6Ly9jYW1lbC5hcGFjaGUub3JnL3NjaGVtYS9zcHJpbmcgICAgICAgIGh0dHA6Ly9jYW1lbC5hcGFjaGUub3JnL3NjaGVtYS9zcHJpbmcvY2FtZWwtc3ByaW5nLnhzZCI+CiAgICA8Y2FtZWw6c3NsQ29udGV4dFBhcmFtZXRlcnMgaWQ9Im15U3NsQ29udGV4dFBhcmFtZXRlcnMiID4KICAgICAgICA8Y2FtZWw6a2V5TWFuYWdlcnMga2V5UGFzc3dvcmQ9ImNsaWVudCI+CiAgICAgICAgICAgIDxjYW1lbDprZXlTdG9yZSBwYXNzd29yZD0iY2xpZW50IiByZXNvdXJjZT0iQzpcbXRzbFxjbGllbnQua2V5c3RvcmUiLz4KICAgICAgICA8L2NhbWVsOmtleU1hbmFnZXJzPgogICAgICAgIDxjYW1lbDpzZWN1cmVTb2NrZXRQcm90b2NvbHM+CiAgICAgICAgICAgIDxjYW1lbDpzZWN1cmVTb2NrZXRQcm90b2NvbD5UTFN2MS4yPC9jYW1lbDpzZWN1cmVTb2NrZXRQcm90b2NvbD4KICAgICAgICA8L2NhbWVsOnNlY3VyZVNvY2tldFByb3RvY29scz4KICAgIDwvY2FtZWw6c3NsQ29udGV4dFBhcmFtZXRlcnM+CiAgIDxjYW1lbENvbnRleHQgeG1sbnM9Imh0dHA6Ly9jYW1lbC5hcGFjaGUub3JnL3NjaGVtYS9zcHJpbmciPgogICAgICAgPHJvdXRlIGlkPSJkaXJlY3QucG9zdFBhbUFwaS50b1VybCI+CiAgICAgICAgICAgPGZyb20gdXJpPSJkaXJlY3Q6aW52b2tlRmFicmljU2VydmljZSIvPgogICAgICAgICAgIDxzZXRIZWFkZXIgaGVhZGVyTmFtZT0iQ2FtZWxIdHRwTWV0aG9kIj4KICAgICAgICAgICAgICAgIDxjb25zdGFudD5QT1NUPC9jb25zdGFudD4KICAgICAgICAgICA8L3NldEhlYWRlcj4KCQkJPHRvRCB1cmk9Imh0dHBzOi8vZGJ4bGVuZGluZ3FhLmtvbnljbG91ZC5jb20vc2VydmljZXMvZGJwREJYL2NyZWF0ZURieFByb3NwZWN0Ii8+CiAgICAgICA8L3JvdXRlPgogICAgPC9jYW1lbENvbnRleHQ+CiAgICA8YmVhbiBpZD0ibW9ja1Jlc3BvbmRlciIgY2xhc3M9ImNvbS50ZW1lbm9zLm1pY3Jvc2VydmljZS5tZWRpYXRvci5lbmdpbmUuTW9ja1Jlc3BvbmRlclV0aWwiLz4KICAgIDxiZWFuIGlkPSJtZXNzYWdlUHJvY2Vzc29yIiBjbGFzcz0iY29tLnRlbWVub3MubWljcm9zZXJ2aWNlLm1lZGlhdG9yLmVuZ2luZS5NZXNzYWdlUHJvY2Vzc29yIi8+CiAgICA8YmVhbiBpZD0iSlNPTkFnZ3JlZ2F0b3IiIGNsYXNzPSJjb20udGVtZW5vcy5taWNyb3NlcnZpY2UubWVkaWF0b3IuZW5naW5lLkpTT05BZ2dyZWdhdG9yIi8+CjwvYmVhbnM+
- Encode the above Adapter Framework property to base 64 as below.Base 64 Encoded Properties
cHJvY2Vzcy5yb3V0ZUlkPWRpcmVjdDppbnZva2VGYWJyaWNTZXJ2aWNlCnByb2Nlc3Mucm91dGU9UGFydHlBcHBsaWNhdGlvbkNvbnRleHQKUGFydHlBcHBsaWNhdGlvbkNvbnRleHQ9UEQ5NGJXd2dkbVZ5YzJsdmJqMGlNUzR3SWlCbGJtTnZaR2x1WnowaVZWUkdMVGdpUHo0S1BHSmxZVzV6SUhodGJHNXpQU0pvZEhSd09pOHZkM2QzTG5Od2NtbHVaMlp5WVcxbGQyOXlheTV2Y21jdmMyTm9aVzFoTDJKbFlXNXpJZ29nSUNBZ0lDQWdlRzFzYm5NNmVITnBQU0pvZEhSd09pOHZkM2QzTG5jekxtOXlaeTh5TURBeEwxaE5URk5qYUdWdFlTMXBibk4wWVc1alpTSUtJQ0FnSUNBZ0lIaHRiRzV6T21OaGJXVnNQU0pvZEhSd09pOHZZMkZ0Wld3dVlYQmhZMmhsTG05eVp5OXpZMmhsYldFdmMzQnlhVzVuSWdvZ0lDQWdJQ0FnZUhOcE9uTmphR1Z0WVV4dlkyRjBhVzl1UFNJZ0lDQWdJQ0FnSUdoMGRIQTZMeTkzZDNjdWMzQnlhVzVuWm5KaGJXVjNiM0pyTG05eVp5OXpZMmhsYldFdlltVmhibk1nSUNBZ0lDQWdJQ0FnSUNCb2RIUndPaTh2ZDNkM0xuTndjbWx1WjJaeVlXMWxkMjl5YXk1dmNtY3ZjMk5vWlcxaEwySmxZVzV6TDNOd2NtbHVaeTFpWldGdWN5NTRjMlFnSUNBZ0lDQWdJR2gwZEhBNkx5OWpZVzFsYkM1aGNHRmphR1V1YjNKbkwzTmphR1Z0WVM5emNISnBibWNnSUNBZ0lDQWdJR2gwZEhBNkx5OWpZVzFsYkM1aGNHRmphR1V1YjNKbkwzTmphR1Z0WVM5emNISnBibWN2WTJGdFpXd3RjM0J5YVc1bkxuaHpaQ0krQ2lBZ0lDQThZMkZ0Wld3NmMzTnNRMjl1ZEdWNGRGQmhjbUZ0WlhSbGNuTWdhV1E5SW0xNVUzTnNRMjl1ZEdWNGRGQmhjbUZ0WlhSbGNuTWlJRDRLSUNBZ0lDQWdJQ0E4WTJGdFpXdzZhMlY1VFdGdVlXZGxjbk1nYTJWNVVHRnpjM2R2Y21ROUltTnNhV1Z1ZENJK0NpQWdJQ0FnSUNBZ0lDQWdJRHhqWVcxbGJEcHJaWGxUZEc5eVpTQndZWE56ZDI5eVpEMGlZMnhwWlc1MElpQnlaWE52ZFhKalpUMGlRenBjYlhSemJGeGpiR2xsYm5RdWEyVjVjM1J2Y21VaUx6NEtJQ0FnSUNBZ0lDQThMMk5oYldWc09tdGxlVTFoYm1GblpYSnpQZ29nSUNBZ0lDQWdJRHhqWVcxbGJEcHpaV04xY21WVGIyTnJaWFJRY205MGIyTnZiSE0rQ2lBZ0lDQWdJQ0FnSUNBZ0lEeGpZVzFsYkRwelpXTjFjbVZUYjJOclpYUlFjbTkwYjJOdmJENVVURk4yTVM0eVBDOWpZVzFsYkRwelpXTjFjbVZUYjJOclpYUlFjbTkwYjJOdmJENEtJQ0FnSUNBZ0lDQThMMk5oYldWc09uTmxZM1Z5WlZOdlkydGxkRkJ5YjNSdlkyOXNjejRLSUNBZ0lEd3ZZMkZ0Wld3NmMzTnNRMjl1ZEdWNGRGQmhjbUZ0WlhSbGNuTStDaUFnSUR4allXMWxiRU52Ym5SbGVIUWdlRzFzYm5NOUltaDBkSEE2THk5allXMWxiQzVoY0dGamFHVXViM0puTDNOamFHVnRZUzl6Y0hKcGJtY2lQZ29nSUNBZ0lDQWdQSEp2ZFhSbElHbGtQU0prYVhKbFkzUXVjRzl6ZEZCaGJVRndhUzUwYjFWeWJDSStDaUFnSUNBZ0lDQWdJQ0FnUEdaeWIyMGdkWEpwUFNKa2FYSmxZM1E2YVc1MmIydGxSbUZpY21salUyVnlkbWxqWlNJdlBnb2dJQ0FnSUNBZ0lDQWdJRHh6WlhSSVpXRmtaWElnYUdWaFpHVnlUbUZ0WlQwaVEyRnRaV3hJZEhSd1RXVjBhRzlrSWo0S0lDQWdJQ0FnSUNBZ0lDQWdJQ0FnSUR4amIyNXpkR0Z1ZEQ1UVQxTlVQQzlqYjI1emRHRnVkRDRLSUNBZ0lDQWdJQ0FnSUNBOEwzTmxkRWhsWVdSbGNqNEtDUWtKUEhSdlJDQjFjbWs5SW1oMGRIQnpPaTh2WkdKNGJHVnVaR2x1WjNGaExtdHZibmxqYkc5MVpDNWpiMjB2YzJWeWRtbGpaWE12WkdKd1JFSllMMk55WldGMFpVUmllRkJ5YjNOd1pXTjBJaTgrQ2lBZ0lDQWdJQ0E4TDNKdmRYUmxQZ29nSUNBZ1BDOWpZVzFsYkVOdmJuUmxlSFErQ2lBZ0lDQThZbVZoYmlCcFpEMGliVzlqYTFKbGMzQnZibVJsY2lJZ1kyeGhjM005SW1OdmJTNTBaVzFsYm05ekxtMXBZM0p2YzJWeWRtbGpaUzV0WldScFlYUnZjaTVsYm1kcGJtVXVUVzlqYTFKbGMzQnZibVJsY2xWMGFXd2lMejRLSUNBZ0lEeGlaV0Z1SUdsa1BTSnRaWE56WVdkbFVISnZZMlZ6YzI5eUlpQmpiR0Z6Y3owaVkyOXRMblJsYldWdWIzTXViV2xqY205elpYSjJhV05sTG0xbFpHbGhkRzl5TG1WdVoybHVaUzVOWlhOellXZGxVSEp2WTJWemMyOXlJaTgrQ2lBZ0lDQThZbVZoYmlCcFpEMGlTbE5QVGtGblozSmxaMkYwYjNJaUlHTnNZWE56UFNKamIyMHVkR1Z0Wlc1dmN5NXRhV055YjNObGNuWnBZMlV1YldWa2FXRjBiM0l1Wlc1bmFXNWxMa3BUVDA1QloyZHlaV2RoZEc5eUlpOCtDand2WW1WaGJuTSs=
- Add the encoded adapter framework properties in Generic Config MS
Generic Config Request
EndPoint_URL: http://localhost:8095/ms-genericconfig-api/api/v1.0.0/system/configurationGroups/ADAPTER.CONFIG/configuration/<EVENT_TYPE>
Payload:
{
"id": "<EVENT_TYPE>",
"name": "adapter-framework_pam.invokeApi policy file",
"version": "1.0.0",
"configData": {
"data": "cHJvY2Vzcy5yb3V0ZUlkPWRpcmVjdDppbnZva2VGYWJyaWNTZXJ2aWNlCnByb2Nlc3Mucm91dGU9UGFydHlBcHBsaWNhdGlvbkNvbnRleHQKUGFydHlBcHBsaWNhdGlvbkNvbnRleHQ9UEQ5NGJXd2dkbVZ5YzJsdmJqMGlNUzR3SWlCbGJtTnZaR2x1WnowaVZWUkdMVGdpUHo0S1BHSmxZVzV6SUhodGJHNXpQU0pvZEhSd09pOHZkM2QzTG5Od2NtbHVaMlp5WVcxbGQyOXlheTV2Y21jdmMyTm9aVzFoTDJKbFlXNXpJZ29nSUNBZ0lDQWdlRzFzYm5NNmVITnBQU0pvZEhSd09pOHZkM2QzTG5jekxtOXlaeTh5TURBeEwxaE5URk5qYUdWdFlTMXBibk4wWVc1alpTSUtJQ0FnSUNBZ0lIaHRiRzV6T21OaGJXVnNQU0pvZEhSd09pOHZZMkZ0Wld3dVlYQmhZMmhsTG05eVp5OXpZMmhsYldFdmMzQnlhVzVuSWdvZ0lDQWdJQ0FnZUhOcE9uTmphR1Z0WVV4dlkyRjBhVzl1UFNJZ0lDQWdJQ0FnSUdoMGRIQTZMeTkzZDNjdWMzQnlhVzVuWm5KaGJXVjNiM0pyTG05eVp5OXpZMmhsYldFdlltVmhibk1nSUNBZ0lDQWdJQ0FnSUNCb2RIUndPaTh2ZDNkM0xuTndjbWx1WjJaeVlXMWxkMjl5YXk1dmNtY3ZjMk5vWlcxaEwySmxZVzV6TDNOd2NtbHVaeTFpWldGdWN5NTRjMlFnSUNBZ0lDQWdJR2gwZEhBNkx5OWpZVzFsYkM1aGNHRmphR1V1YjNKbkwzTmphR1Z0WVM5emNISnBibWNnSUNBZ0lDQWdJR2gwZEhBNkx5OWpZVzFsYkM1aGNHRmphR1V1YjNKbkwzTmphR1Z0WVM5emNISnBibWN2WTJGdFpXd3RjM0J5YVc1bkxuaHpaQ0krQ2lBZ0lDQThZMkZ0Wld3NmMzTnNRMjl1ZEdWNGRGQmhjbUZ0WlhSbGNuTWdhV1E5SW0xNVUzTnNRMjl1ZEdWNGRGQmhjbUZ0WlhSbGNuTWlJRDRLSUNBZ0lDQWdJQ0E4WTJGdFpXdzZhMlY1VFdGdVlXZGxjbk1nYTJWNVVHRnpjM2R2Y21ROUltTnNhV1Z1ZENJK0NpQWdJQ0FnSUNBZ0lDQWdJRHhqWVcxbGJEcHJaWGxUZEc5eVpTQndZWE56ZDI5eVpEMGlZMnhwWlc1MElpQnlaWE52ZFhKalpUMGlRenBjYlhSemJGeGpiR2xsYm5RdWEyVjVjM1J2Y21VaUx6NEtJQ0FnSUNBZ0lDQThMMk5oYldWc09tdGxlVTFoYm1GblpYSnpQZ29nSUNBZ0lDQWdJRHhqWVcxbGJEcHpaV04xY21WVGIyTnJaWFJRY205MGIyTnZiSE0rQ2lBZ0lDQWdJQ0FnSUNBZ0lEeGpZVzFsYkRwelpXTjFjbVZUYjJOclpYUlFjbTkwYjJOdmJENVVURk4yTVM0eVBDOWpZVzFsYkRwelpXTjFjbVZUYjJOclpYUlFjbTkwYjJOdmJENEtJQ0FnSUNBZ0lDQThMMk5oYldWc09uTmxZM1Z5WlZOdlkydGxkRkJ5YjNSdlkyOXNjejRLSUNBZ0lEd3ZZMkZ0Wld3NmMzTnNRMjl1ZEdWNGRGQmhjbUZ0WlhSbGNuTStDaUFnSUR4allXMWxiRU52Ym5SbGVIUWdlRzFzYm5NOUltaDBkSEE2THk5allXMWxiQzVoY0dGamFHVXViM0puTDNOamFHVnRZUzl6Y0hKcGJtY2lQZ29nSUNBZ0lDQWdQSEp2ZFhSbElHbGtQU0prYVhKbFkzUXVjRzl6ZEZCaGJVRndhUzUwYjFWeWJDSStDaUFnSUNBZ0lDQWdJQ0FnUEdaeWIyMGdkWEpwUFNKa2FYSmxZM1E2YVc1MmIydGxSbUZpY21salUyVnlkbWxqWlNJdlBnb2dJQ0FnSUNBZ0lDQWdJRHh6WlhSSVpXRmtaWElnYUdWaFpHVnlUbUZ0WlQwaVEyRnRaV3hJZEhSd1RXVjBhRzlrSWo0S0lDQWdJQ0FnSUNBZ0lDQWdJQ0FnSUR4amIyNXpkR0Z1ZEQ1UVQxTlVQQzlqYjI1emRHRnVkRDRLSUNBZ0lDQWdJQ0FnSUNBOEwzTmxkRWhsWVdSbGNqNEtDUWtKUEhSdlJDQjFjbWs5SW1oMGRIQnpPaTh2WkdKNGJHVnVaR2x1WjNGaExtdHZibmxqYkc5MVpDNWpiMjB2YzJWeWRtbGpaWE12WkdKd1JFSllMMk55WldGMFpVUmllRkJ5YjNOd1pXTjBJaTgrQ2lBZ0lDQWdJQ0E4TDNKdmRYUmxQZ29nSUNBZ1BDOWpZVzFsYkVOdmJuUmxlSFErQ2lBZ0lDQThZbVZoYmlCcFpEMGliVzlqYTFKbGMzQnZibVJsY2lJZ1kyeGhjM005SW1OdmJTNTBaVzFsYm05ekxtMXBZM0p2YzJWeWRtbGpaUzV0WldScFlYUnZjaTVsYm1kcGJtVXVUVzlqYTFKbGMzQnZibVJsY2xWMGFXd2lMejRLSUNBZ0lEeGlaV0Z1SUdsa1BTSnRaWE56WVdkbFVISnZZMlZ6YzI5eUlpQmpiR0Z6Y3owaVkyOXRMblJsYldWdWIzTXViV2xqY205elpYSjJhV05sTG0xbFpHbGhkRzl5TG1WdVoybHVaUzVOWlhOellXZGxVSEp2WTJWemMyOXlJaTgrQ2lBZ0lDQThZbVZoYmlCcFpEMGlTbE5QVGtGblozSmxaMkYwYjNJaUlHTnNZWE56UFNKamIyMHVkR1Z0Wlc1dmN5NXRhV055YjNObGNuWnBZMlV1YldWa2FXRjBiM0l1Wlc1bmFXNWxMa3BUVDA1QloyZHlaV2RoZEc5eUlpOCtDand2WW1WaGJuTSs=",
"configType": "properties"
}
}

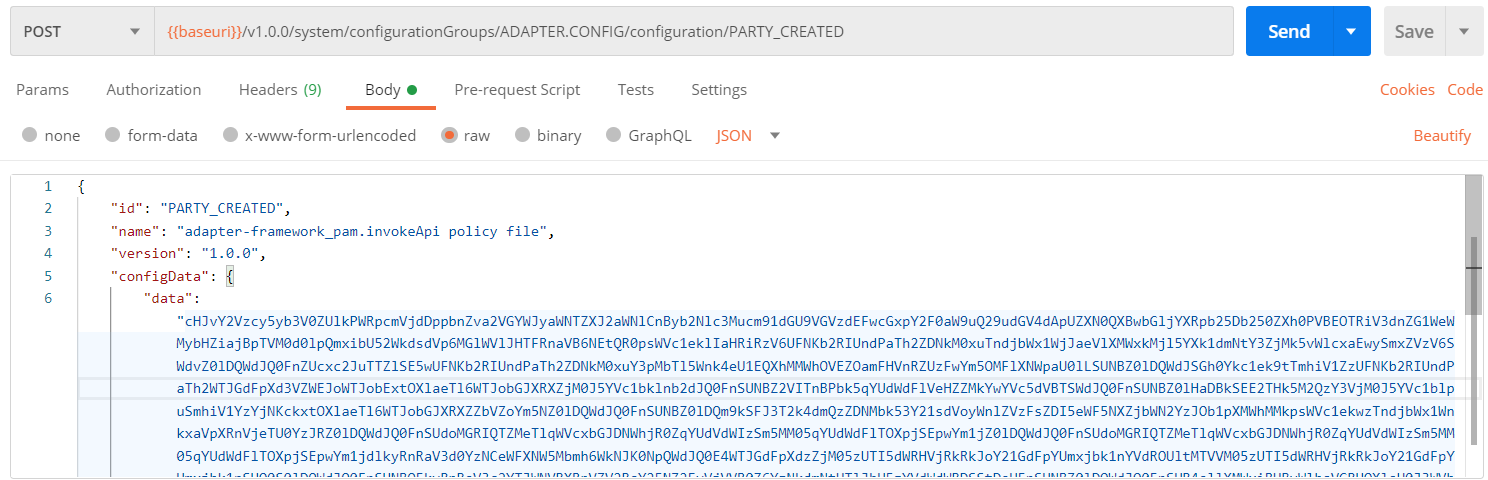

- Screenshot of Create Payload with Generic Config MS request body containing encoded adapter framework properties.
