Deploy Originations Data Storage Microservice in Docker Container

The Originations Data Storage microservice is provisioned for deployment in the Docker container.

Artifacts

The Originations Data Storage microservice deployment for a Docker container is available as a single release bundle file ms-storage-package-docker-<release_number>.zip.

Before you deploy the package, you should:

• Install Docker Engine in the deployment environment. For more information, see https://docs.docker.com/install/overview/
• Turn on Linux containers in your docker container.

Deploy

To deploy the Originations Data Storage microservice:

1. Unzip the ms-storage-package-docker-<release_number>.zip

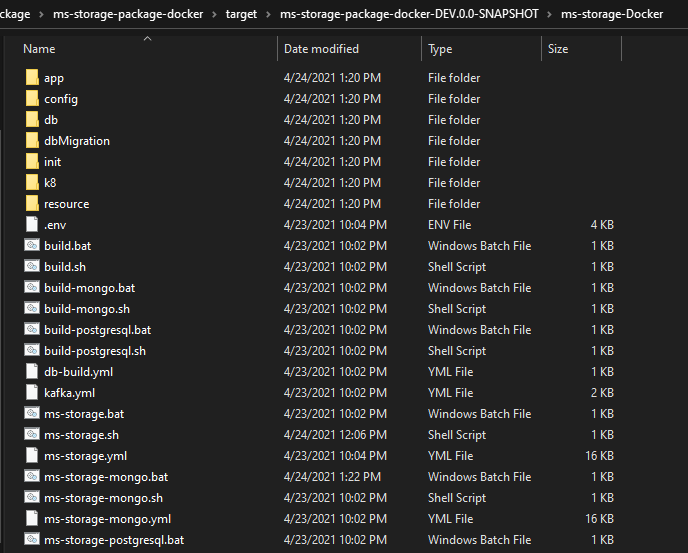

2. Check the extracted package contains the configuration files for the docker and the respective bat and sh files



Navigate from the command prompt to the directory where the .bat and .sh files are available and execute the below command which creates an image and docker container for the image.

3. Enable JWT Authentication for:

MondoDB - in ms-storage-mongo.yml

Postgresql - in both ms-storage-postgresql.yml

4. Navigate from the command prompt to the directory where the .bat and .sh files are available.
5. Execute the below command which creates an image and docker container for the image:

MondoDB

For Windows : ms-storage-mongo.bat up --build -d

For Linux : /ms-storage-mongo.sh up --build -d

After the successful deployment, database, collections and the reference data (master data) are loaded into the mongo database for storage microservice.

PostgreSQL

For Windows : ms-storage-postgresql.bat up --build -d

For Linux : /ms-storage-postgresql.sh up --build -d

After the successful deployment, database, collections and the reference data(master data) are loaded into the mongo database for storage microservice.

6. Once the microservice is up and running in docker, check the APIs of the package. The API URL follows this pattern:

   Base Path: http://<IP_ADDRESS>:<PORT>/<context-root>/api/<version>/ For Example: http://localhost:8010/ms-storage-api/api/v0.9.0/

   Resource path of the endpoint can be found in the Swagger JSON file.

   A sample endpoint of the data storage microservice can be http://localhost:8010/ms-storage-api/api/v0.9.0/origination/storage/entityItems/

Undeploy

To undeploy the Originations Data Storage microservice:

1. Execute the below command from the location, where the Origination Data Storage docker is started, to stop and remove the existing container.

MondoDB

For Windows : ms-storage-monogo.bat down

For Linux : ms-storage-monogo.sh down

PostgreSQL

For Windows : ms-storage-postgresql.bat down

For Linux : ms-storage-postgresql.sh down
